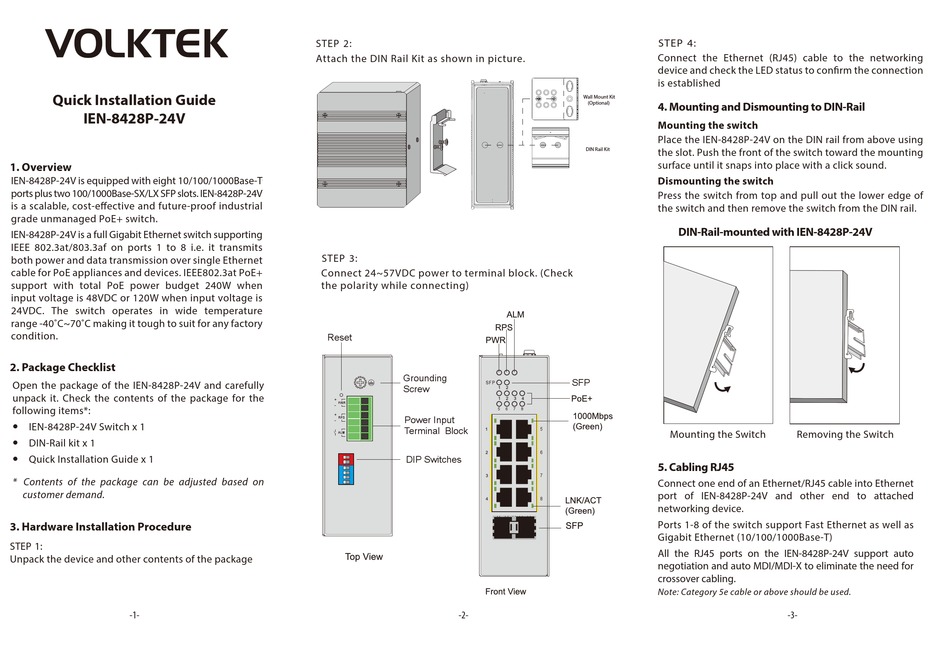

VOLKTEK IEN-8428P-24V Quick Installation Manual

Quick Installation Guide
IEN-8428P-24V
1. Overview

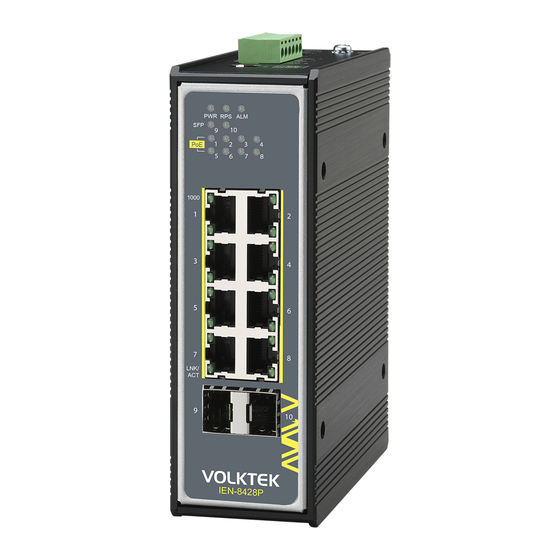

IEN-8428P-24V is equipped with eight 10/100/1000Base-T
ports plus two 100/1000Base-SX/LX SFP slots. IEN-8428P-24V
is a scalable, cost-e ective and future-proof industrial
grade unmanaged PoE+ switch.
IEN-8428P-24V is a full Gigabit Ethernet switch supporting
IEEE 802.3at/803.3af on ports 1 to 8 i.e. it transmits
both power and data transmission over single Ethernet
cable for PoE appliances and devices. IEEE802.3at PoE+
support with total PoE power budget 240W when
input voltage is 48VDC or 120W when input voltage is
24VDC. The switch operates in wide temperature
range -40˚C~70˚C making it tough to suit for any factory
condition.
2. Package Checklist
Open the package of the IEN-8428P-24V and carefully
unpack it. Check the contents of the package for the
following items*:
 IEN-8428P-24V Switch x 1
 DIN-Rail kit x 1
 Quick Installation Guide x 1
* Contents of the package can be adjusted based on
customer demand.
3. Hardware Installation Procedure
STEP 1:
Unpack the device and other contents of the package
-1-
STEP 2:
Attach the DIN Rail Kit as shown in picture.
STEP 3:
Connect 24~57VDC power to terminal block. (Check
the polarity while connecting)
Reset
Grounding
SFP
Screw
+
PWR
+
Power Input
RPS
Terminal Block
ALM
DIP Switches
-2-
STEP 4:
Connect the Ethernet (RJ45) cable to the networking
device and check the LED status to con rm the connection
is established
Wall Mount Kit
4. Mounting and Dismounting to DIN-Rail
(Optional)
Mounting the switch
Place the IEN-8428P-24V on the DIN rail from above using
DIN Rail Kit the slot. Push the front of the switch toward the mounting
surface until it snaps into place with a click sound.
Dismounting the switch
Press the switch from top and pull out the lower edge of
the switch and then remove the switch from the DIN rail.
SFP
5 6 7 8
5
Mounting the Switch
6
5. Cabling RJ45
7
Connect one end of an Ethernet/RJ45 cable into Ethernet
port of IEN-8428P-24V and other end to attached
8
networking device.
Ports 1-8 of the switch support Fast Ethernet as well as
Gigabit Ethernet (10/100/1000Base-T)
All the RJ45 ports on the IEN-8428P-24V support auto
negotiation and auto MDI/MDI-X to eliminate the need for
crossover cabling.
Note: Category 5e cable or above should be used.
DIN-Rail-mounted with IEN-8428P-24V
Removing the Switch
-3-
