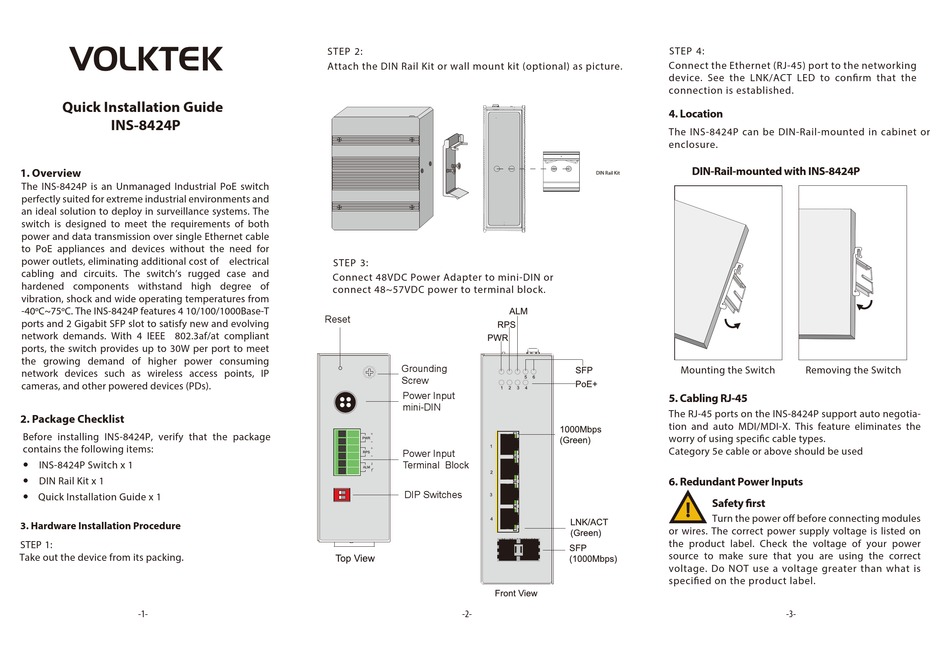

VOLKTEK INS-8424P Quick Installation Manual

Quick Installation Guide
INS-8424P
1. Overview

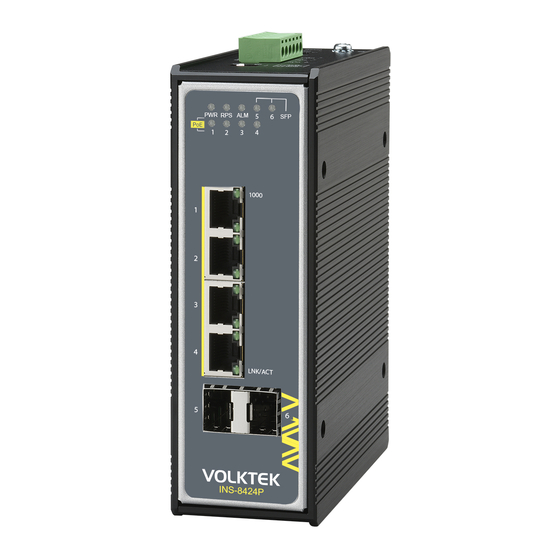

The INS-8424P is an Unmanaged Industrial PoE switch
perfectly suited for extreme industrial environments and
an ideal solution to deploy in surveillance systems. The
switch is designed to meet the requirements of both
power and data transmission over single Ethernet cable
to PoE appliances and devices without the need for
power outlets, eliminating additional cost of electrical
cabling and circuits. The switch's rugged case and
hardened components withstand high degree of
vibration, shock and wide operating temperatures from
-40 C~75 C. The INS-8424P features 4 10/100/1000Base-T
o o
ports and 2 Gigabit SFP slot to satisfy new and evolving
network demands. With 4 IEEE 802.3af/at compliant
ports, the switch provides up to 30W per port to meet
the growing demand of higher power consuming
network devices such as wireless access points, IP
cameras, and other powered devices (PDs).
2. Package Checklist
Before installing INS-8424P, verify that the package
contains the following items:
 INS-8424P Switch x 1
 DIN Rail Kit x 1
 Quick Installation Guide x 1
3. Hardware Installation Procedure
STEP 1:
Take out the device from its packing.
-1-
STEP 2:
Attach the DIN Rail Kit or wall mount kit (optional) as picture.
STEP 3:
Connect 48VDC Power Adapter to mini-DIN or
connect 48~57VDC power to terminal block.
Reset
Grounding
Screw
Power Input
mini-DIN
Power Input
Terminal Block
DIP Switches
-2-
STEP 4:
Connect the Ethernet (RJ-45) port to the networking
device. See the LNK/ACT LED to con rm that the
connection is established.
4. Location
The INS-8424P can be DIN-Rail-mounted in cabinet or
enclosure.
DIN-Rail-mounted with INS-8424P
DIN Rail Kit
Mounting the Switch
5. Cabling RJ-45
The RJ-45 ports on the INS-8424P support auto negotia-
tion and auto MDI/MDI-X. This feature eliminates the
worry of using speci c cable types.
Category 5e cable or above should be used
6. Redundant Power Inputs
Safety rst
!
Turn the power o before connecting modules
or wires. The correct power supply voltage is listed on
the product label. Check the voltage of your power
source to make sure that you are using the correct
voltage. Do NOT use a voltage greater than what is
speci ed on the product label.
Removing the Switch
-3-
