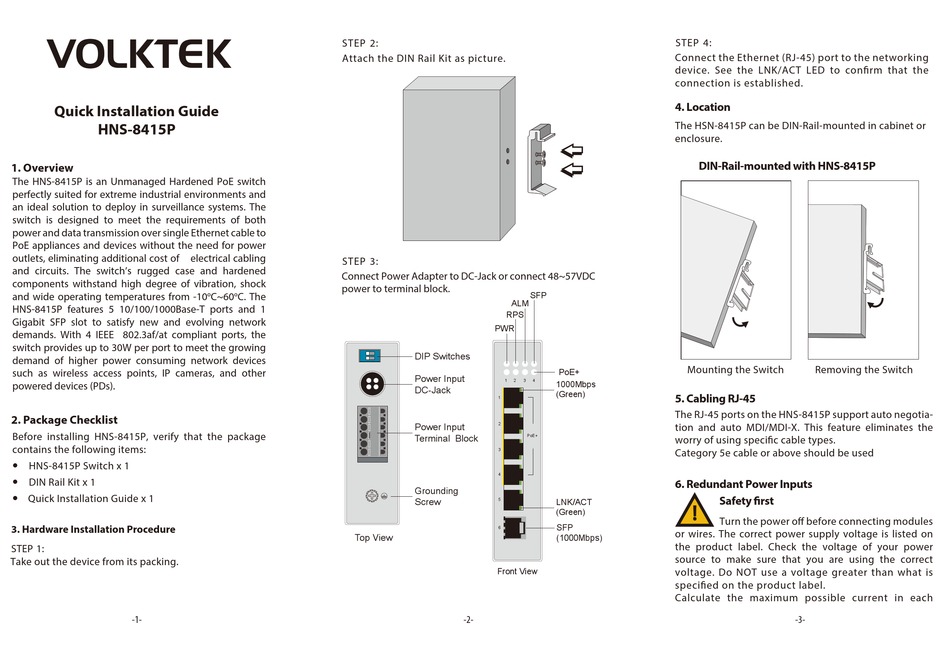

Quick Installation Guide
HNS-8415P
1. Overview

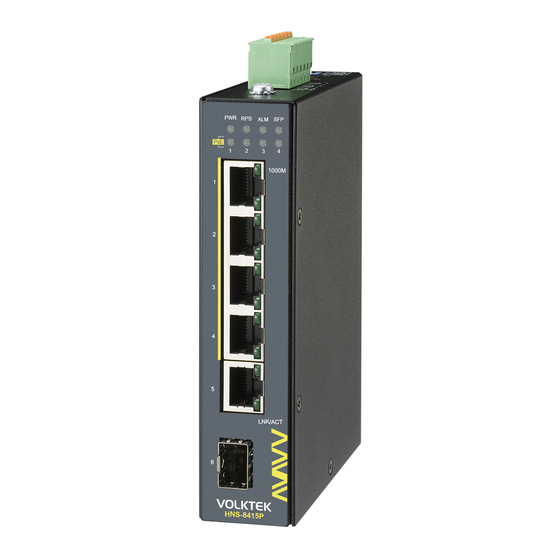

The HNS-8415P is an Unmanaged Hardened PoE switch
perfectly suited for extreme industrial environments and
an ideal solution to deploy in surveillance systems. The
switch is designed to meet the requirements of both
power and data transmission over single Ethernet cable to
PoE appliances and devices without the need for power
outlets, eliminating additional cost of electrical cabling
and circuits. The switch's rugged case and hardened
components withstand high degree of vibration, shock
and wide operating temperatures from -10
HNS-8415P features 5 10/100/1000Base-T ports and 1
Gigabit SFP slot to satisfy new and evolving network
demands. With 4 IEEE 802.3af/at compliant ports, the
switch provides up to 30W per port to meet the growing
demand of higher power consuming network devices
such as wireless access points, IP cameras, and other
powered devices (PDs).
2. Package Checklist
Before installing HNS-8415P, verify that the package
contains the following items:
 HNS-8415P Switch x 1
 DIN Rail Kit x 1
 Quick Installation Guide x 1
3. Hardware Installation Procedure
STEP 1:
Take out the device from its packing.
-1-
STEP 2:
Attach the DIN Rail Kit as picture.
STEP 3:
Connect Power Adapter to DC-Jack or connect 48~57VDC
power to terminal block.
C~60 C. The
o o
Top View
SFP
ALM
RPS
PWR
DIP Switches
PoE+
Power Input
1 2 3 4
1000Mbps
DC-Jack
(Green)
1
Power Input 2
Terminal Block
PoE+
3
4
Grounding
Screw
5 LNK/ACT
(Green)
SFP
6
(1000Mbps)
Front View
-2-
STEP 4:
Connect the Ethernet (RJ-45) port to the networking
device. See the LNK/ACT LED to con rm that the
connection is established.
4. Location
The HSN-8415P can be DIN-Rail-mounted in cabinet or
enclosure.
DIN-Rail-mounted with HNS-8415P
Mounting the Switch Removing the Switch
5. Cabling RJ-45
The RJ-45 ports on the HNS-8415P support auto negotia-
tion and auto MDI/MDI-X. This feature eliminates the
worry of using speci c cable types.
Category 5e cable or above should be used
6. Redundant Power Inputs
Safety rst
!
Turn the power o before connecting modules
or wires. The correct power supply voltage is listed on
the product label. Check the voltage of your power
source to make sure that you are using the correct
voltage. Do NOT use a voltage greater than what is
speci ed on the product label.
Calculate the maximum possible current in each
