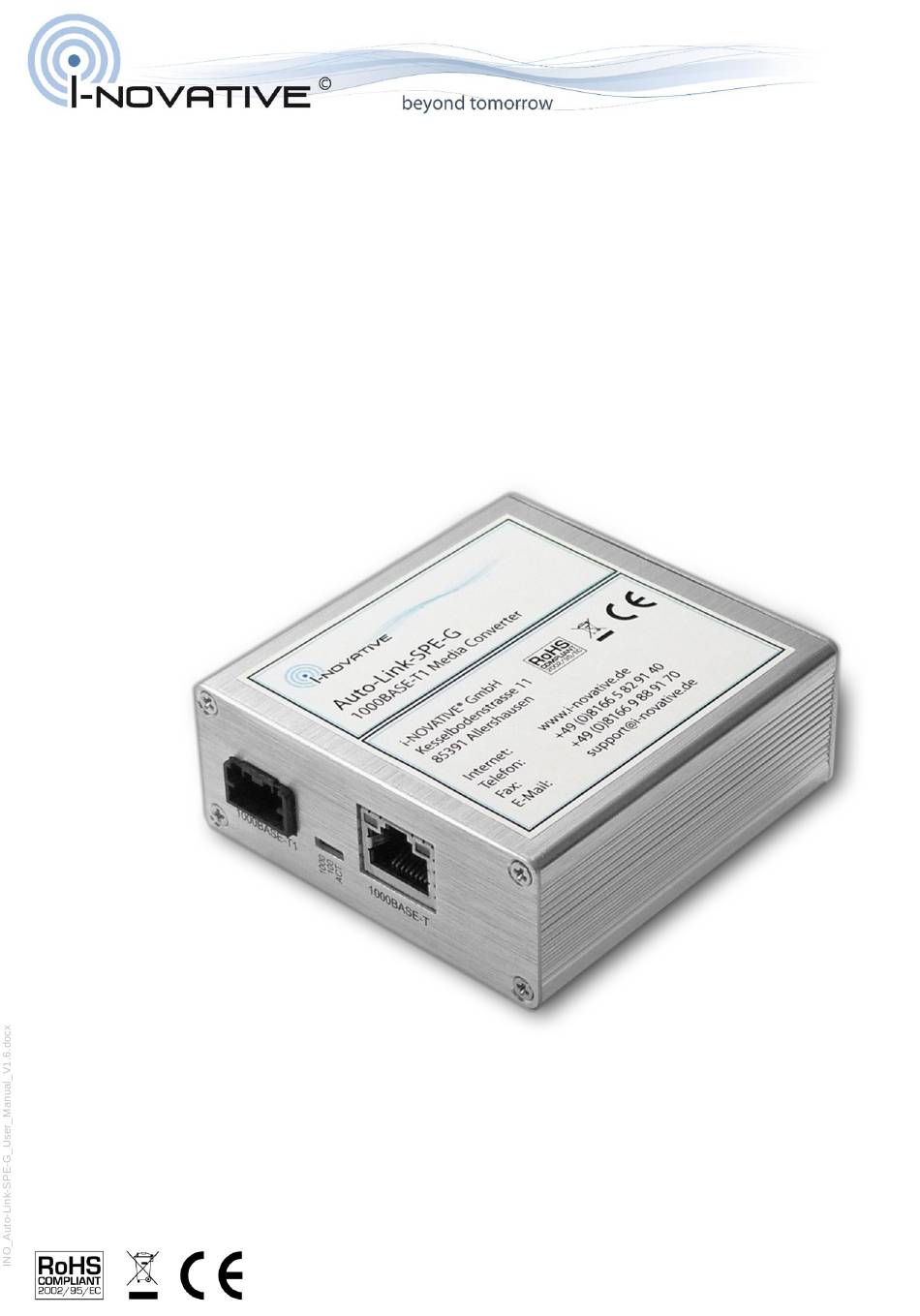

- Page 1 User Manual Auto-Link-SPE-G 1000BASE-T1 Media Converter...
-
Page 2: Table Of Contents
T(X) Functions ........................9 Important Information ....................... 10 Packaging Ordinance ....................... 10 Recycling Reference and RoHS Compliance ..............10 CE Marking ........................10 Manufacturer and Support ....................... 10 Warranty ..........................10 Auto-Link-SPE-G User Manual Rev. 1.6 2020-07-05 2 / 10... -
Page 3: Introduction
Master/slave role, speed and auto-negotiation modes can be set via DIP switches. The Control Center software connects via the USB to the Auto-Link-SPE-G and provides information about link state, signal quality and allows direct PHY register access. Faults in the T1 connection can be detected using Signal Quality Indicator and the Automotive Cable Diagnostics function. -
Page 4: Scope Of Delivery
Terminals for the Mini50 Receptacles (4x AWG22 + 4x AWG24 + 4x AWG26-30) • Intended Purpose and Disclaimer The Auto-Link-SPE-G is intended to be used for development and testing purposes in automotive or industrial areas. It is not allowed to use the Auto-Link-SPE-G in series products. -
Page 5: Power Connector
GND (-) 5.2.3 Power Cable Recommendation Description Manufacturer Structure Jacket Shield Remarks FLRY 2x0,35-B RD/BL Leoni 2x0,35mm AWG22 Power FLRY-B 1x0,35 RD Leoni 1x0,35mm AWG22 Supply FLRY-B 1x0,35 BL Leoni 1x0,35mm AWG22 Auto-Link-SPE-G User Manual Rev. 1.6 2020-07-05 5 / 10... -
Page 6: Configuration
Auto-Negotiation (DIP3) is turned on. The Auto Role Switch feature can increase the link setup time. Do not connect the T1 interfaces of two Auto-Link-SPE-G with activated Auto Role Switch on both sides. This may prevent the link establishment. -
Page 7: Speed (Dip4)
At the “legacy” Ethernet side (RJ45 port), the Auto-Link-SPE-G is configured for Auto-Negotiation and follows the link speed of the T1 side. If the T1 link is established with 1000Mbit/s, the Auto-Link- SPE-G advertises 1000Mbit/s and if the T1 link is established with 100Mbit/s, the Auto-Link-SPE-G advertises 100Mbit/s. -
Page 8: Controller Functions
±1.5m. ACD can detect broken wires (OPEN) and intra-pair shorts (SHORT). In case of an INVALID result, try to repeat the measurement. PAIR BUSY indicates traffic on the pair. Turn off the link partner in order to get a valid result. Auto-Link-SPE-G User Manual Rev. 1.6 2020-07-05... -
Page 9: Register Access
Shadow 18 Registers: Enter the Shadow Selector in the Register field. Shadow 1C Registers: Enter the Shadow Selector in the Register field. Clause 45 Registers Top Level Expansion Registers Expansion Registers Auto-Link-SPE-G User Manual Rev. 1.6 2020-07-05 9 / 10... -
Page 10: Important Information
VerpackVO). If you as a customer have problems with the disposal of packaging and shipping materials, please write an email to info@i-novative.de. Recycling Reference and RoHS Compliance Please note that parts of the products from i-novative GmbH ® must be properly recycled and must not be disposed with household waste (i.e.
