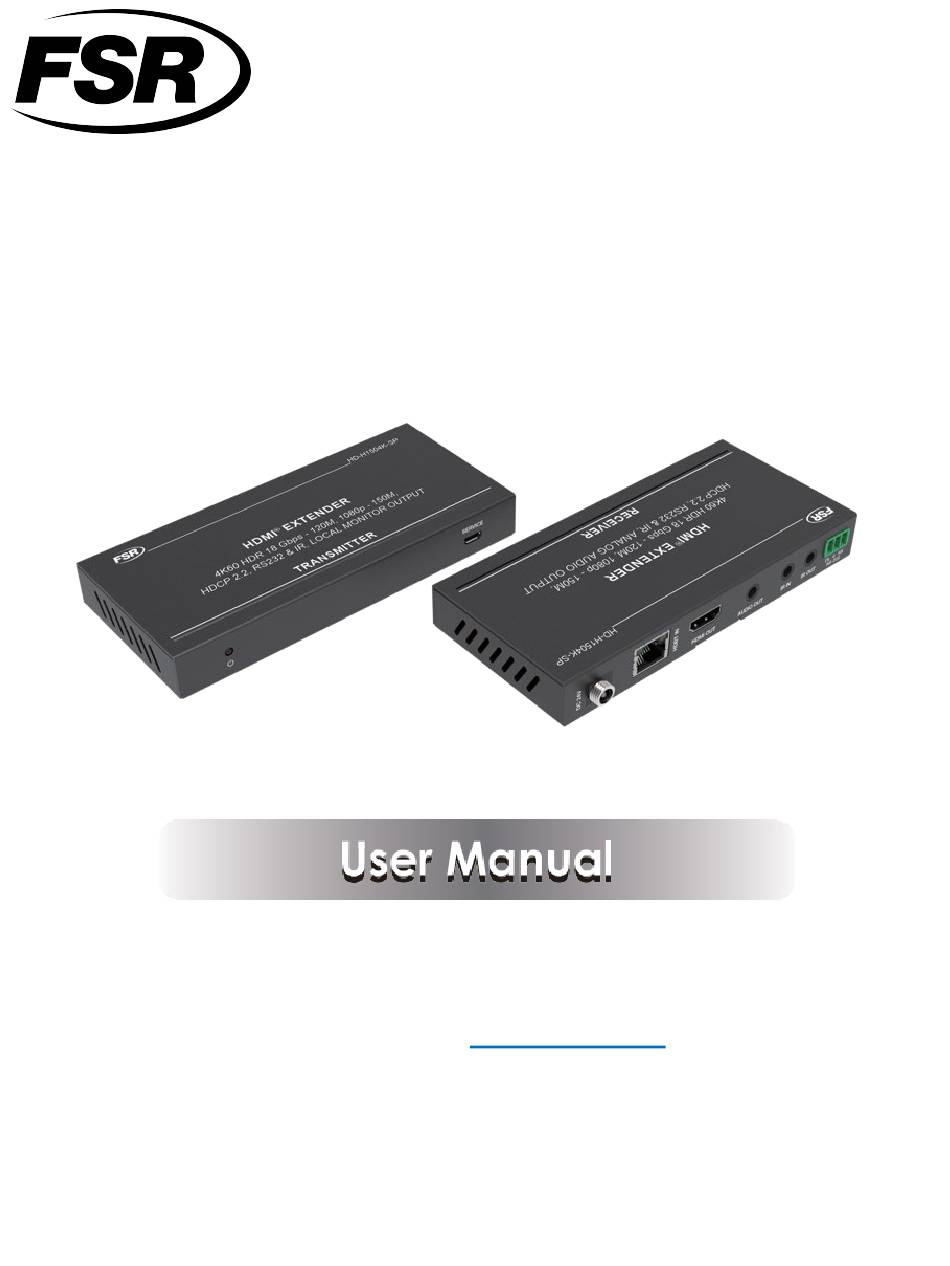

HD-H1504K-SP
Extender Set
VER 1.0
244 Bergen Blvd Woodland Park, NJ 07424
www.fsrinc.com
973-998-2300
LIT1866
43452

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-H1504K-SP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FSR HD-H1504K-SP

Summary of Contents for FSR HD-H1504K-SP

  • Page 1 HD-H1504K-SP Extender Set VER 1.0 244 Bergen Blvd Woodland Park, NJ 07424 www.fsrinc.com 973-998-2300 LIT1866 43452...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction This 18Gbps HDMI Extender can extend high-definition video / audio signals, RS-232, and bi-directional IR to a distance up to 492ft / 150 meters between the transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps, HDCP 2.2.

  • Page 4: Package Contents

    3. Package Contents Item 18Gbps HDMI over HDBaseT Extender (Transmitter) 18Gbps HDMI over HDBaseT Extender (Receiver) IR Blaster cable (1.5 meters) 20~60KHz IR Receiver cable (1.5 meters) Mounting Ears 3-pin pluggable screw terminal connectors 24V/1A Locking Power adapter User Manual 4.
  • Page 5 Connection Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x HDBT OUT [RJ45, 8-pin female] Transmitter Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Pluggable screw terminal] 1x SERVICE [Mini-USB, Update port] Inputs: 1x HDBT IN [RJ45, 8-pin female]...

  • Page 6: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Transmitter Panel Name Function Description 1 Power LED Red LED indicates that the transmitter is powered on. 2 SERVICE port Firmware update port. DC 24V/1A power supply input port. Note that the extender supports PoC function, it means that only 1 3 DC 24V side, transmitter or receiver, needs to be powered by 24V/1A power adapter, the opposing side needs no power supply.

  • Page 7: Receiver Panel

    3-pin Phoenix connector for RS-232 command transmission. 11 RS-232 The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter. 5.2 Receiver Panel Name Function Description 1 Power LED Red LED indicates that the receiver is powered on. 2 SERVICE port Firmware update port.

  • Page 8: Ir Pin Definition

    IR IN IR input port for receiving the IR remote signal. IR output port for control of display device. This IR output signal 10 IR OUT is from the IR IN port of transmitter. 3-pin Phoenix connector for RS-232 command transmission. 11 RS-232 The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter.
  • Page 9 0-5 meters; when the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters. CONTACT INFORMATION: FSR INC. 244 Bergen Blvd. Woodland Park, NJ 07424 Phone: (973) 998-2300 *Order Desk Fax: (973) 785-4207 E-mail: sales@fsrinc.com...

  • Page 10: Application Example

    6. Application Example 8 / 8...
