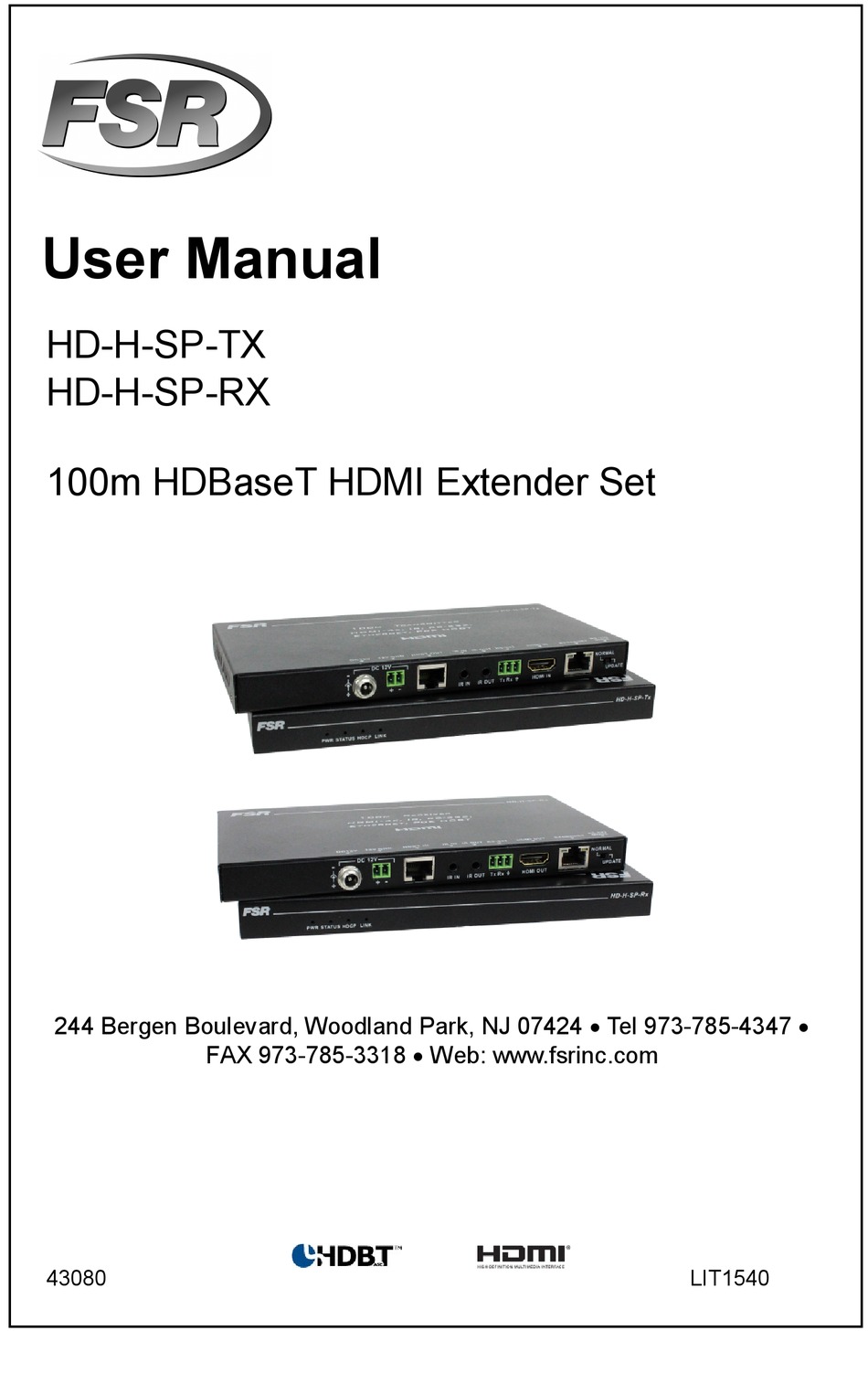

Page 1: User Manual
User Manual HD-H-SP-TX HD-H-SP-RX 100m HDBaseT HDMI Extender Set 244 Bergen Boulevard, Woodland Park, NJ 07424 Tel 973-785-4347 FAX 973-785-3318 Web: www.fsrinc.com 43080 LIT1540... -
Page 2: Important Safety Instructions
4. Do not install near any heat 9. Only use sources such as radiators, heat attachments/accessories registers, stoves, or other device specified by FSR. (including amplifiers) that manufacturer. produce heat. 5. Do not place sources of open 10. Refer all servicing to... -
Page 3: Table Of Contents
Table of Contents Overview ....................4 Features ....................5 Package Contents ................6 Typical Application ................7 HD-H-SP-Tx Front Panel ..............8 HD-H-SP-Tx Rear Panel ............... 9 HD-H-SP-Rx Front Panel ..............11 HD-H-SP-Rx Rear Panel..............12 Hardware Installation ................13 IR Control ................... 14 Scenario 1 ................... -
Page 4: Overview
Overview The HD-H-SP series HDBaseT extenders can extend the signals up to 100 meters with a single Ethernet cable. It supports HDMI, Ethernet, bi-directional IR, bi-directional RS-232 and bi-directional PoE. The extenders can be powered by a single power supply and its PoE circuitry can power the extender at the far end. The transmitter and receiver modules are easy to install and space saving. -
Page 5: Features
Features HD-H-SP-Tx – 100 Meter HDBaseT Slim-Pack Transmitter • HDMI In to HDBaseT Out (RJ-45) • RS-232 via 3-Pin Captive Screw Terminal (Tx, Rx, GND) • IR RX & TX via 1/8” mini jacks • 12VDC Power via screw connector or 2-Pin Captive Screw Terminal (12V &... -
Page 6: Package Contents
Package Contents HD-H-SP-Tx and HD-H-SP-Rx are sold separately. HD-H-SP-Tx Transmitter: One 2-pin screw-down terminals One 3-pin screw-down terminals One IR Emitter One IR Receiver (30kHz ~ 50kHz) Two Mounting Ears HD-H-SP-Rx Receiver: One 2-pin screw-down terminals One 3-pin screw-down terminals... -
Page 7: Typical Application
Typical Application TV REMOTE IR EMITTER CABLE BLUE-RAY IR RECEIVER CABLE ETHERNET HD-H-SP-Tx DC 12V NORMAL POWER SUPPLY UPDATE (SOLD SEPARATELY) IR IN IR OUT Tx Rx HDMI IN ALTERNATE POWER INPUT CATx CABLE HD-H-SP-Rx DC 12V NORMAL POWER UPDATE... -
Page 8: Hd-H-Sp-Tx Front Panel
HD-H-SP-Tx Front Panel HD-H-SP-Tx PWR STATUS HDCP LINK Name Description ON: Unit is powered ON Power LED OFF: Unit is powered OFF Intermittent: Normal operating condition Status LED OFF: Fault ON: HDCP video is being transmitted HDCP LED OFF/Intermittent: No HDCP video is being... -
Page 9: Hd-H-Sp-Tx Rear Panel
HD-H-SP-Tx Rear Panel HD-H-SP-Tx 100m Transmitter HDMI - 4k, IR, RS-232, ETHERNET, PoE HDBT RS-232 DC12V 12V GND HDBT OUT IR IN IR OUT RS-232 HDMI IN ETHERNET MODE 7.72 DC 12V NORMAL UPDATE IR IN IR OUT Tx Rx... - Page 10 Name Description HDMI IN Connect to a source device Ethernet connection for a router, switcher or computer, etc Ethernet Orange: Link-Activity Green: Speed 100Mbps Normal: RS-232 pass through capability enabled Firmware cannot be updated Switch Mode Update: RS-232 pass through capability disabled ...
-
Page 11: Hd-H-Sp-Rx Front Panel
HD-H-SP-Rx Front Panel HD-H-SP-Rx PWR STATUS HDCP LINK Name Description ON: Receiver is powered ON Power LED OFF: Receiver is powered OFF Intermittent: Normal operating condition Status LED OFF: Fault ON: HDCP video is being transmitted HDCP LED Intermittent: No HDCP video is being transmitted ON: Receiver and Transmitter are linked to each other Link LED... -
Page 12: Hd-H-Sp-Rx Rear Panel
HD-H-SP-Rx Rear Panel HD-H-SP-Rx 100m Receiver HDMI - 4k, IR, RS-232, ETHERNET, PoE HDBT RS-232 DC12V 12V GND HDBT IN IR IN IR OUT RS-232 HDMI OUT ETHERNET MODE DC 12V NORMAL UPDATE IR IN IR OUT Tx Rx HDMI OUT Name Description Connect to a power supply via a power adapter to... -
Page 13: Hardware Installation
Name Description Ethernet connection for a router, switcher or computer, etc Ethernet Orange: Link-Activity Green: Speed 100Mbps Normal: RS-232 pass through capability enabled Firmware cannot be updated Mode Switch Update: RS-232 pass through capability disabled Firmware can be updated ... -
Page 14: Ir Control
The IR receiver is connected to the IR IN on the Transmitter and the IR emitter is connected to the IR OUT on the Receiver. TV REMOTE BLUE-RAY IR RECEIVER CABLE HD-H-SP-Tx DC 12V NORMAL UPDATE Tx Rx HDMI IN... -
Page 15: Scenario 2
Player Remote. The IR emitter is connected to the IR OUT on the Transmitter and the IR receiver is connected to the IR IN on the Receiver. BLUE-RAY IR EMITTER CABLE HD-H-SP-Tx DC 12V NORMAL UPDATE IR IN IR OUT... -
Page 16: Rs-232 Control And Firmware Updates
Transmitter from the Receiver or vice versa. In addition, the RS-232 port on the Transmitter or Receiver can be connected to a computer to update the firmware. Scenario 1: Firmware Update HD-H-SP-Tx Set switch to UPDATE DC 12V NORMAL... -
Page 17: Specifications
-4°F to 140°F (-20°C to 70°C) Storage 10% to 90%, non-condensing Temperature Power Supply DC 12V 2A with locking connector Power Consumption HD-H-SP-Rx powers HD-H-SP-Tx (or vice versa): ≤11.8W for both devices. ESD Protection Human-body Model: ±8kV (Air-gap discharge) ±4kV (Contact discharge) Surge Protection IEC 61000-4-4 (EFT) 40A (5/50ns);... - Page 18 Cable Specifications For best resolution and ESD performance Shielded CAT6A in a TIA / EIA 568B wiring configuration is recommended. Cable Type Range Supported Video CAT5e/CAT6 100m 1080p 60Hz (36 bpp) 1080p 60Hz (48 bpp) 1080p 60Hz 3D 4K 2160p (3840x2160 30Hz) CAT6A/CAT7 100m 1080p 60Hz (36 bpp)
- Page 19 HD-H-SP-Rx Technical Input 1 HDBT Input Signal Type HDBT Input Resolution 4k 2160p (3840x2160) / 1080P / 1080i / 720P / Support 576P / 480P / 576i / 480i Input Video Level 0.5-1.2 Vp-p Output 1 HDMI Output Signal Type HDMI Video Impedance 100Ω...
- Page 20 Cable Specifications For best resolution and ESD performance Shielded CAT6A in a TIA / EIA 568B wiring configuration is recommended. Cable Type Range Supported Video CAT5e/CAT6 100m 1080p 60 Hz 36 bpp 1080p 60 Hz 48 bpp 1080p 60 Hz 3D 4K 2160p (3840 x 2160 30Hz) CAT6A/CAT7 100m...
-
Page 21: Limited Warranty
FSR factory or Authorized Repair Stations. This warranty shall be cancelable by FSR at its sole discretion if the unit has been subjected to physical abuse or has been modified in any way without written authorization from FSR.
