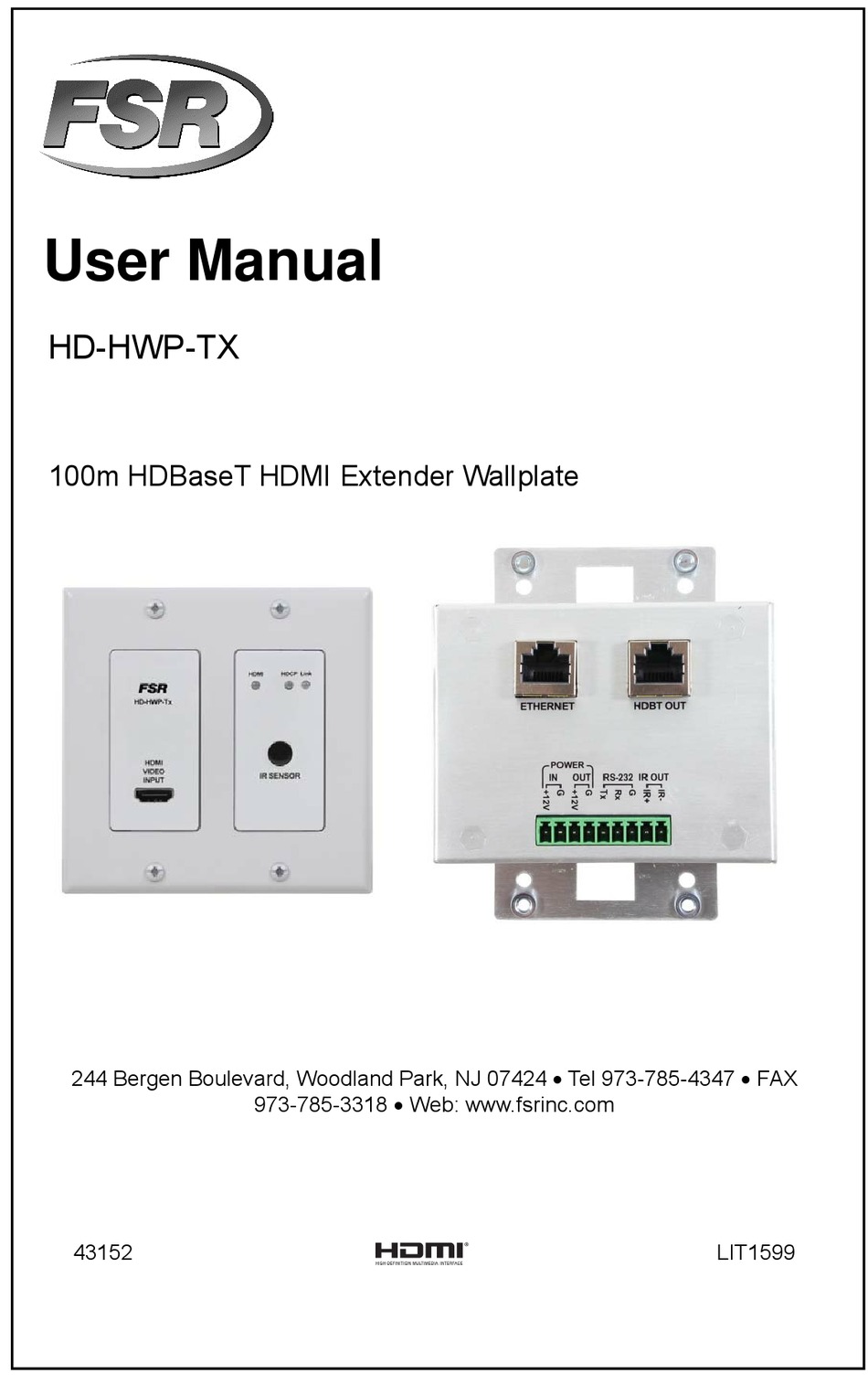

- Page 1 User Manual HD-HWP-TX 100m HDBaseT HDMI Extender Wallplate 244 Bergen Boulevard, Woodland Park, NJ 07424 Tel 973-785-4347 FAX 973-785-3318 Web: www.fsrinc.com 43152 LIT1599...
- Page 2 4. Do not install near any heat 9. Only use sources such as radiators, heat attachments/accessories registers, stoves, or other device specified by FSR. (including amplifiers) that produce heat. 5. Do not place sources of open 10. Refer all servicing to...
-
Page 3: Table Of Contents
Cable Distances & Resolutions: ............... 5 Typical Application ..................6 HD-HWP-TX Dimensions ................. 7 HD-HWP-Tx Front Panel ................8 HD-HWP-Tx Rear Panel ................9 Hardware Installation ................10 IR and RS-232 Operation ................ 11 ... -
Page 4: Overview
OVERVIEW The HD-HWP-TX transmitter is a true HDBaseT 5-Play device that transmits HD Video (4K UHD), Audio, Bi-directional control (IR & RS-232), Ethernet, and Power via 1 CAT-6A shielded cable up to 100 Meters. The HD-HWP-TX works with any of FSR’s 100 Meter HDBaseT Receivers and can be powered by any 100m Receiver or powered locally The unit fits in a standard 2-gang box. -
Page 5: Features
Supports an HDMI input HDBaseT 1.0 compliance HDMI 1.4 with 4K compliance HDCP 2.2 pass-through Bi-directional PoE (HD-HWP-TX only) Bi-directional IR IR, Ethernet and RS232 control over HDBaseT Space saving design CABLE DISTANCES & RESOLUTIONS:... -
Page 6: Typical Application
Transmitters do not include a Power Supply. An FSR 17762 Power Supply is included with any of the FSR HDBaseT Receivers. FSR 17762 Power Supplies can also be ordered... -
Page 7: Hd-Hwp-Tx Dimensions
HD-HWP-TX DIMENSIONS HDMI HDCP Link HD-HWP-Tx HDBT OUT ETHERNET HDMI POWER VIDEO RS-232 IR OUT IR SENSOR INPUT 1 2 3... -
Page 8: Hd-Hwp-Tx Front Panel
HD-HWP-TX FRONT PANEL Name Description HDMI VIDEO INPUT HDMI input connection from source HDMI LED Indicates an active HDMI input On: HDCP video is being transmitted. HDCP LED Off / Intermittent: No HDCP video is being transmitted ON: Receiver and Transmitter are linked to... -
Page 9: Hd-Hwp-Tx Rear Panel
HD-HWP-TX REAR PANEL Name Description POWER IN 12V 2A DC power supply input (power supply sold separately. (See note under "Typical Application") POWER OUT 12VDC 250mA max RS-232 Serial port IR OUT Connects to IR transmitter ETHERNET Connects to an Ethernet device... -
Page 10: Hardware Installation
HARDWARE INSTALLATION Warnings Before the installation, disconnect the power supply from all the devices. Do not connect or disconnect cables from the Transmitter and Receiver while they are powered ON. To connect or disconnect cables from the units, power them OFF first. ... -
Page 11: Ir And Rs-232 Operation
The TV can be controlled from the Transmitter’s location with the TV remote. The IR receiver is connected to the IR IN on the Transmitter and the IR emitter is connected to the IR OUT on the Receiver. BLUE-RAY HDMI HDCP Link HD-HWP-Tx TV REMOTE ETHERNET ETHERNET HDMI POWER... - Page 12 Player Remote. The IR emitter is connected to the IR OUT on the Transmitter and the IR receiver is connected to the IR IN on the Receiver. BLUE-RAY IR EMITTER CABLE HDMI HDCP Link HD-HWP-Tx ETHERNET HDMI POWER VIDEO RS-232 IR OUT IR SENSOR...
-
Page 13: Rs-232 Control
The RS-232 port can be used as a pass-through to control a device connected to the Transmitter from the Receiver or vice versa. RS-232 Control Maximum baud rate is 115.2 Kbps. RS-232 DEVICE HDMI HDCP Link HD-HWP-Tx ETHERNET HDMI POWER VIDEO RS-232 IR OUT IR SENSOR... -
Page 14: Specifications
SPECIFICATIONS Technical Video input Connector 1 HDMI Input Signal Types 4K UHD / 2160p (3840 x 2160 or 4096 x 2160p @ 24Hz / 25Hz / 30Hz / 50 Hz / 60 Hz (4:2:0 8-bit) 7.1ch audio HDMI 1.4 and HDCP compliant Output 1 HDBT Output Signal Type... - Page 15 Cable Specifications For best resolution and ESD performance, Shielded CAT6A in a TIA / EIA 568B wiring configuration is recommended. CAT-5e / CAT-6: 100 Meters: 1080p @60 Hz (36 bpp) 70 Meters: 1080p @60 Hz (48 bpp) or 3D and 4K UHD / 2160p (3840 x 2160 or 4096 x 2160p @ 24Hz / 25Hz / 30Hz / 50 Hz / 60 Hz) (4:2:0 8-bit) CAT-6a / CAT-7:...
-
Page 16: Limited Warranty
FSR factory or Authorized Repair Stations. This warranty shall be cancelable by FSR at its sole discretion if the unit has been subjected to physical abuse or has been modified in any way without written authorization from FSR.
