Page 1: User Manual

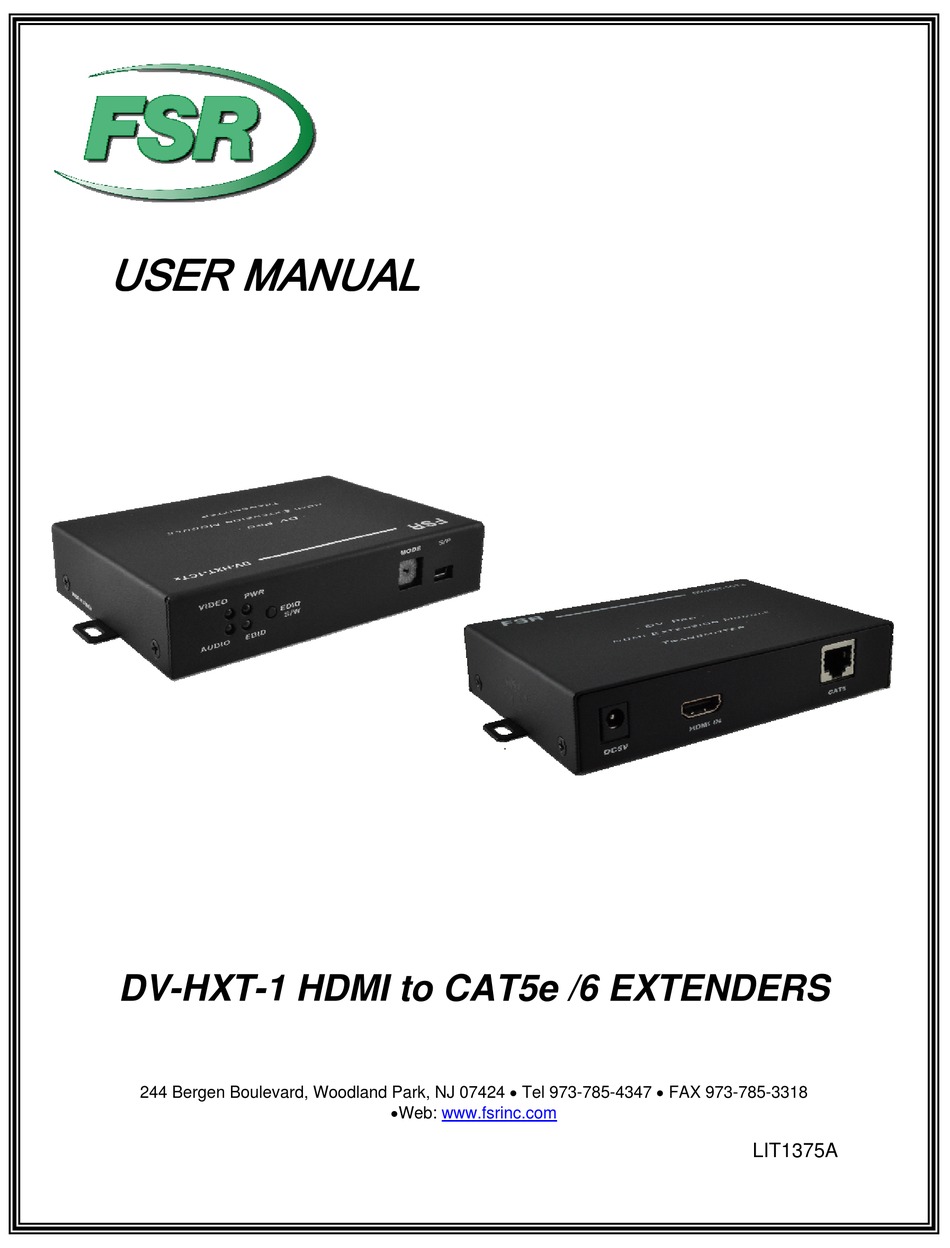

USER MANUAL DV-HXT-1 HDMI to CAT5e /6 EXTENDERS 244 Bergen Boulevard, Woodland Park, NJ 07424 Tel 973-785-4347 FAX 973-785-3318 Web: www.fsrinc.com LIT1375A... -
Page 3: Proprietary Information
Proprietary Information All information in this manual is proprietary to and the property of FSR Inc. This publication is protected by the Federal Copyright Law, with all rights reserved. No part of this document may be reproduced, transcribed, or transmitted, in any form or by any means, without prior explicit written permission from FSR Inc. -
Page 5: Table Of Contents
Table of Contents Proprietary Information .................... 3 Description, General Specification ................6 Environmental and Reliability Specifications ............7 Main Features ......................9 Video Connection ....................10 Troubleshooting..................... 13 Mechanical Specification ..................14 Technical Specification..................15 Limited Warranty ....................17... -
Page 6: Description, General Specification
Description, General Specification Sends HDMI signals over long distances using a single Cat cable Compact size and low power design Uses inexpensive CAT6 and 6e cable Simple, low cost installation. ITEM DESCRIPTION Model Name DV-HXT-1 Input Signal HDMI Output Signal HDMI... -
Page 7: Environmental And Reliability Specifications
Environmental and Reliability Specifications Recommended environmental conditions for the operation are temperature range of 50°– 104°F (10°C– 40°C), non-condensing humidity levels of 10%– 80%, and altitude ceiling of 9,840 feet (3,000 meters). Environmental limits for transportation are temperature range of -13°– 122°F (-25°C–... -
Page 9: Main Features
The digital signal level is self-adjusting. Signal Amplification for signal reliability and long distance transmission. Cutting edge FSR design transmits high quality video signals over long distances. Compact and Practical Design The DV-HXT-1’s compact design can be used in tight spaces. -
Page 10: Video Connection
Video Connection Step 1: Ensure the digital video/audio source and display are turned off. Step 2: Manually set the rotary switch to the native resolution of the display if it is different than the default resolution of 1920x1080P 2ch Audio (Default setting of “D”... - Page 11 MODE NUMBER EDID DATA EXTERNAL(EDID data save mode) 800x600 1024x768 1280x768 1280x1024 1360x768 1366x768 1400x1050 1600x900 1600x1200 1680x1050 1920x1200 1280x720P/1920x1080i 2ch audio 1920x1080P 2ch Audio (Default set) 1920x1080P 5ch audio RESERVED When changing EDID mode, unplug the power cable at the Transmitter.
- Page 12 UTP Cat Cable terminations TIA/EIA-568-B, <Digital RGB> TX (A): 1------ -> RX: 1(Orange/White) TX (A): 2------ -> RX: 2(Orange) TX (B): 3 -------> RX: 3(Green/White) TX (B): 4 -------> RX: 4(Blue) TX (C): 5 -------> RX: 5(Blue/White) TX (C): 6 -------> RX: 6(Green) TX (D): 7------ ->...
-
Page 13: Troubleshooting
Troubleshooting The HDMI single Cat Extender is designed for years of trouble free service. Please reference the troubleshooting chart below if experiencing issues with the device. Problem Solution No picture(or 1. Ensure the power LED is illuminated. signal) 2. Ensure the Video LED is illuminated. 3. -
Page 14: Mechanical Specification
Mechanical Specification Dimension: 5.1” x 4.13”x 1.18” (130 x 105 x 30 mm) Connectors: HDMI In: HDMI digital Input port HDMI Out: HDMI digital Output port RJ-45 RJ-45 connection port DC-5V: Power supply input port Indicators and Controls: POWER LED: Power on/off state EDID LED: Displays the status of EDID appropriate operation. -
Page 15: Technical Specification
Technical Specification Data transmission speed: 2.25 Gbps (Single Link) Digital Video Bandwidth: 25–165 MHz Resolution: Up to WUXGA (1920x1200 @60Hz) HDMI Version 1.3a Compliance with 36bit deep color Input/output signal standard: TMDS, Digital RGB, Stereo audio Maximum length:1920x1080p Cat6e UTP 550MHz 164ft (50m) Cat5e: 130ft (40m) Transmitter connector: HDMI Female 19P / RJ45... -
Page 17: Limited Warranty
FSR factory or Authorized Repair Stations. This warranty shall be cancelable by FSR at its sole discretion if the unit has been subjected to physical abuse or has been modified in any way without written authorization from FSR. FSR’s liability under this warranty is limited to repair or replacement of the defective unit.
