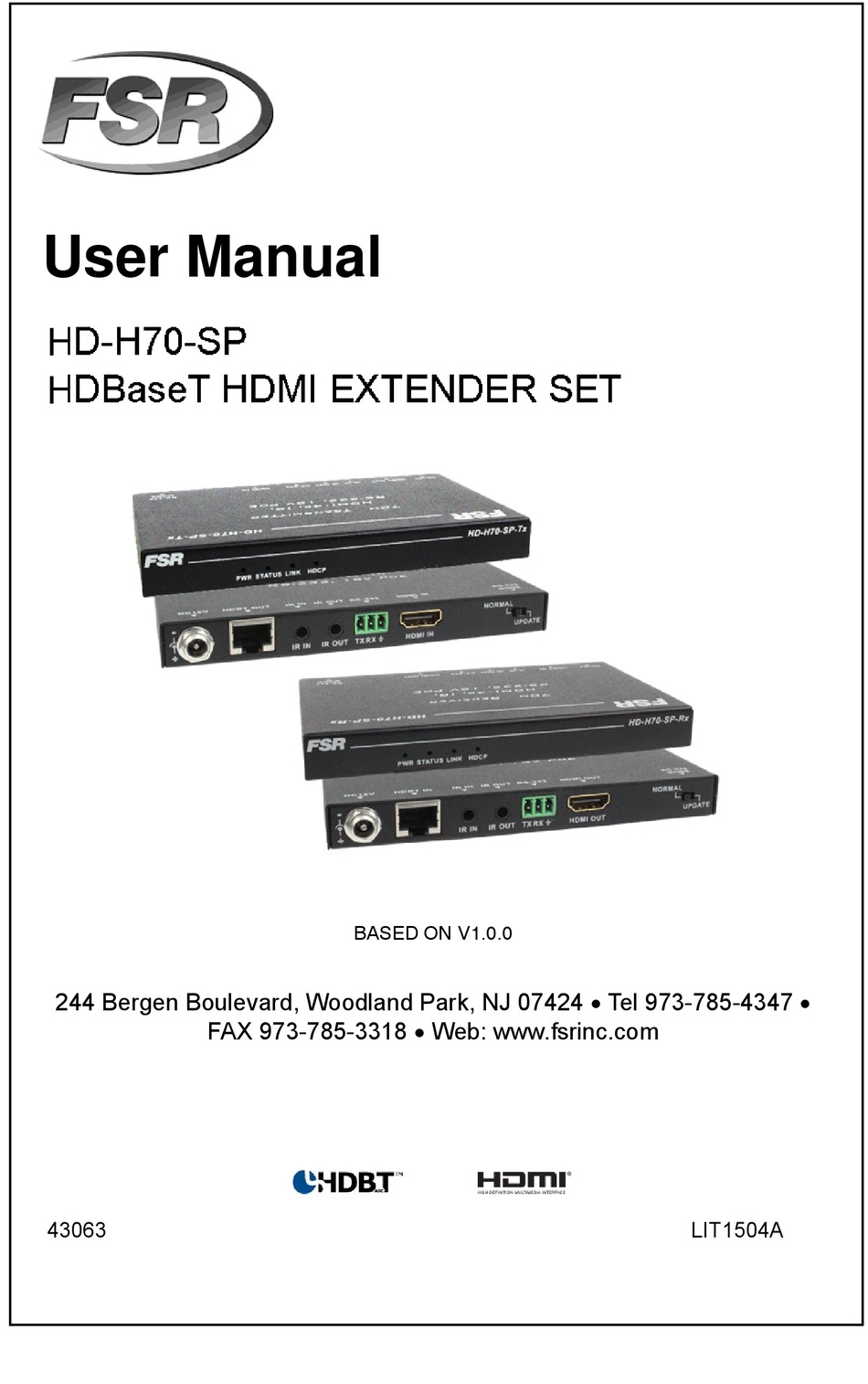

Page 1: User Manual
User Manual HD-H70-SP HDBaseT HDMI EXTENDER SET BASED ON V1.0.0 244 Bergen Boulevard, Woodland Park, NJ 07424 Tel 973-785-4347 FAX 973-785-3318 Web: www.fsrinc.com 43063 LIT1504A... -
Page 2: Important Safety Instructions
4. Do not install near any heat 9. Only use sources such as radiators, heat attachments/accessories registers, stoves, or other device specified by FSR. (including amplifiers) that produce heat. 5. Do not place sources of open 10. Refer all servicing to... -
Page 3: Table Of Contents
Table of Contents Overview ....................4 Features ....................5 Package Includes: ..................5 HD-H70-SP-Tx Front Panel ..............6 HD-H70-SP-Tx Rear Panel ..............7 HD-H70-SP-Rx Front Panel ..............9 HD-H70-SP-Rx Rear Panel ..............10 ... -
Page 4: Overview
Overview HD-H70-SP HDBaseT HDMI EXTENDER SET is designed to extend HDMI signals up to 70 meters via a single CAT5e / CAT6 / CAT6A / CAT 7 cable. The system is powered from a single power supply via its bi-directional PoE function. The Extenders can control the source from the display's location or vice versa via the IR pass-through or bi-directional RS-232 control functions. -
Page 5: Features
40 Meters: 1080p @60 Hz. (48 bpp) or 3D and 4k 2160p (3840x2160 @ 30 Hz.) Power supply can power the set from the HD-H70-SP-Tx Transmitter or the HD-H70-SP-Rx Receiver (Tx-Rx or Rx-Tx) Package Includes: HD-H70-SP-Tx transmitter HD-H70-SP-Rx receiver... -
Page 6: Hd-H70-Sp-Tx Front Panel
HD-H70-SP-Tx Front Panel HD-H70-SP-Tx PWR STATUS LINK HDCP Name Description Power LED On: Unit is powered on. Off: Unit is powered off. Status LED Blinking: Normal operating condition. Off: Fault. Link LED On: Transmitter and receiver are linked to each other. -
Page 7: Hd-H70-Sp-Tx Rear Panel
HD-H70-SP-Tx Rear Panel HD -H70 -SP- Tx RS-232 DC 18V HDB T OUT IR IN IR OUT RS -232 HD MI I N MODE IR IN IR OUT Tx Rx HD MI I N Name Description Power Connect to a power supply via a power adapter to either the transmitter or receiver side 18VDC input. - Page 8 Name Description Mode RS-232 pass through capability enabled Firmware cannot be updated. Update: RS-232 pass through capability disabled Firmware can be updated. ...
-
Page 9: Hd-H70-Sp-Rx Front Panel
HD-H70-SP-Rx Front Panel HD-H70-SP-Rx PWR STATUS LINK HDCP Name Description Power LED On: Receiver is powered on. Off: Receiver is powered off. Status LED Blinking: Normal operating condition Off: Fault Link LED On: Receiver and Transmitter are linked to each other. -
Page 10: Hd-H70-Sp-Rx Rear Panel
HD-H70-SP-Rx Rear Panel HD-H70 -SP- Rx RS-232 DC 18V HDB T IN IR IN IR OUT RS -232 HD MI OUT MODE IR IN IR OUT Tx Rx HDMI OUT Name Description Power Connect to a power supply via a power adapter to either the transmitter or receiver side 18VDC input. -
Page 11: Hardware Installation
Name Description RS-232 pass through capability enabled Firmware cannot be updated. Update: RS-232 pass through capability disabled Firmware can be updated. Hardware Installation Warnings Before the installation, disconnect the power supply from all the devices. Do not connect or disconnect cables from the Transmitter and ... - Page 12 TV REMOTE IR EMITTER CABLE BLU-RAY IR RECEIVER CABLE HD-H70-SP-Tx NORMA L UPD ATE IR IN IR OUT Tx Rx HDMI IN ETHERNET HDBaseT HD-H70-SP-Rx NORMA L UPD ATE IR IN IR OUT Tx Rx HDMI OUT IR RECEIVER CABLE...
-
Page 13: Ir Control
OUT on Receiver is connected to an IR emitter cable. The TV can be controlled from the Transmitter’s location with the TV remote. TV REMOTE BLU-RAY IR RECEIVER CABLE HD-H70-SP-Tx NORMA L UPD ATE IR IN IR OUT Tx Rx... -
Page 14: Scenario 2
In this case, IR OUT on the Transmitter is connected to an IR emitter cable and IR IN on the receiver is connected to an IR receiver cable. The DVD-player can be controlled from the Receiver's location with the DVD remote. BLU-RAY IR EMITTER CABLE HD-H70-SP-Tx NORMA L UPD ATE IR IN IR OUT Tx Rx... -
Page 15: Rs-232 Control And Firmware Updates
An RS-232 device can be connected to communicate with another RS-232 device on the other extender's side via a CATx cable. Scenario 1: Firmware Update Set switch to UPDATE HD-H70-SP-Tx NORMA L UPD ATE IR IN IR OUT... - Page 16 This page is intentionally blank...
-
Page 17: Troubleshooting
Troubleshooting Why is the power LED off? Check that the power supply is powered on. Check that all the cables are properly connected. Why is the Link LED off or blinking? Check that power supplies of all the devices are powered on. ... -
Page 18: Glossary
Why does the Display connected to the Receiver display snow or mosaic? Check that all the cables are qualified and connected properly. Check that HDBaseT cables are CAT5e/CAT6 or better cables. Check that the input sources have no problems, such as snow, mosaic ... -
Page 19: Specifications
-4°F to 140°F (-20°C to 70°C) Storage 10% to 90%, non-condensing Temperature Power Supply DC 18V 2A with locking connector Power Consumption HD-H70-SP-Rx powers HD-H70-SP-Tx (or visa versa): 12.2W for both devices. ESD Protection Human-body Model: ±8kV (Air-gap discharge) ±4kV (Contact discharge) Surge Protection IEC 61000-4-4 (EFT) 40A (5/50ns);... - Page 20 Cable Specifications For best resolution and ESD performance Shielded CAT6A in a TIA / EIA 568B wiring configuration is recommended. Cable Type Range Supported Video CAT5e/CAT6 60 m 1080p 60Hz (36 bpp) 35 m 1080p 60Hz (48 bpp) 1080p 60Hz 3D 4K 2160p (3840x2160@30Hz) CAT6A/CAT7 70 m...
- Page 21 -4°F to 140°F (-20°C to 70°C) Storage Temperature 10% to 90%, non-condensing Power Supply DC 18V 2A Power Consumption HD-H70-SP-Rx powers HD-H70-SP-Tx (or visa versa): 12.2W for both devices ESD Protection Human-body Model: ±8kV (Air-gap discharge) ±4kV (Contact discharge) IEC 61000-4-4 (EFT) 40A (5/50ns); IEC 61000-4-5 Surge Protection (Lightning) 25A (8/20μs)
- Page 22 Cable Specifications For best resolution and ESD performance Shielded CAT6A in a TIA / EIA 568B wiring configuration is recommended. Cable Type Range Supported Video CAT5e/CAT6 60 m 1080p, 60 Hz 36 bpp 35 m 1080p 60 Hz 48 bpp 1080p 60 Hz 3D 4K 2160p (3840 x 2160@30Hz) CAT6A/CAT7...
-
Page 23: Limited Warranty
FSR factory or Authorized Repair Stations. This warranty shall be cancelable by FSR at its sole discretion if the unit has been subjected to physical abuse or has been modified in any way without written authorization from FSR.
