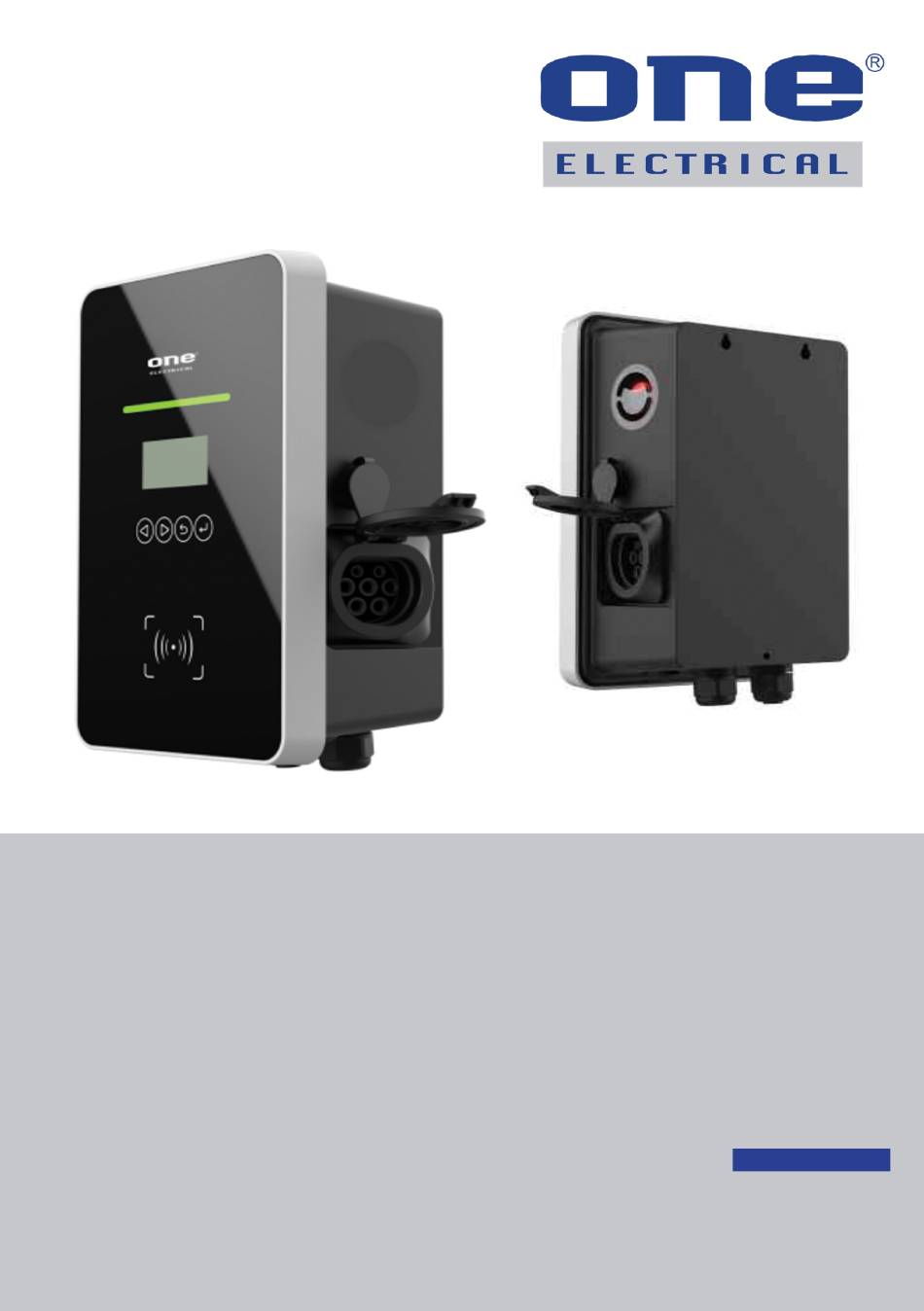

- Page 1 AC Charger Installer Manual OE-AC7000K-34 & OE-AC022K-34...
-
Page 2: Table Of Contents
Contents 1. Warning 2. Safety Precautions 3. Introduction 3.1 Product Technical Specification 3.2 Package Contents 3.3 Module Difference 3.4 External Structure 4. Installation Instructions 4.1 Installation Preparation 4.2 Safety of Installation 4.3 Installation Process 5. Electrical Connection 5.1 Charger Appearance 5.2 Overview of Internal Structure 5.3 Wiring 6. -
Page 3: Warning
Unauthorized and non-professional service personnel are forbidden to remove the cover of this device. Thank you for choosing One Electrical. We offer a wide range of market leading electric vehicle charging products. To find out more, visit our website: www.oneelectrical.com... -
Page 4: Safety Precautions
2. Safety Precautions Before installing or operating the EV charger, please read the user manual carefully to understand the correct practice of use. Keep the user manual for future review. 1) Keep the charger away from explosive or flammable materials, chemicals, vapors and other hazard objects. -
Page 5: Introduction

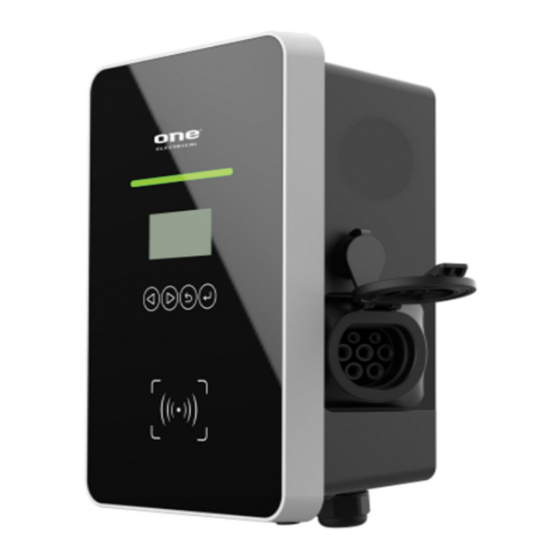

3. Introduction The OE-AC7000-34/AC7000-BE-34 is a single-phase AC charger used for electric vehicle charging, with a protection grade of IP65. Designed according to Electric Vehicle Charging System Stand- ard EN 61851-1: 2011 and EN 61851-22: 2002, the charger is compliant with the relevant industrial standards and safe for usage. -
Page 6: Product Technical Specification
3.1 Product Technical Specification Wi-Fi / SIM Wi-Fi / SIM... -
Page 7: Package Contents
3.2 Package Contents Your package should contain the following items: Please ensure you have all items and complete a visual inspection. If there is any damage or missing items, please notify the seller immediately. -
Page 8: Module Difference
3.3 Module Difference 3.4 External Structure... -
Page 9: Installation Instructions
4. Installation Instructions 4.1 Installation Preparation Tools Required Cables & Materials... -
Page 10: Safety Of Installation
The manufacturer does not assume responsibility for any consequences arising out of the use of this device. A qualified person is one who has certified skills and knowledge related to the construction, installation and operation of this type of electrical device and who has received safety training to recognize and avoid the hazards involved. - Page 11 Wall-mount Installation: three-phase 1. Based on the four holes around of the attached wall-mount bracket, drill 4 x Φ 6 * 35 mm holes on the wall, and insert the expansion pipe. 2. Lock the 4 x M4*32mm self-tapping screws into the expansion pipe, fixed the bracket between the screw head to the wall.
- Page 12 5. Connect wires to the connectors (Refer to ‘Wiring’, page 15). Floor-stand Installation 1. Locate the position for floor-stand pillar on the ground, against the center line of parking place. Let power supply cable go through the inner space of floor-stand pillar. And remain 150cm cable outside.
-
Page 13: Electrical Connection
5. Electrical Connection 5.1 Charger Appearance... -
Page 14: Overview Of Internal Structure
5.2 Overview of Internal Structure... -
Page 15: Wiring
5.3 Wiring Note: Before insert input power wire, please cut silicon sealed loop as required to maintain IP65. The power supply cables go through the input inlet at the charger’s bottom, and connect to the corresponding PE, L and N terminals on the breaker inside charger. -
Page 17: Configuration
6. Configuration 6.1 Power On Checks before turning device on Please ensure the following: - The charger’s location allows good operational access to normal use and repair & maintenance. - The AC input components within the premise’s power supply are fitted correctly with required protection items prior to installation of the charger - Confirm the charger is installed correctly. -
Page 18: Hardware Setup
7. Hardware Setup 1. Download the EVSE Mesh app on AppStore or Google Play. Access it by scanning the relevant QR code with your phone. 2. Follow the steps to create an account and login. 3. Open ‘Setting and select ‘Platform... - Page 19 4. Select ‘Charger Group List’ section of the menu, then click on the little circle with a “+” sign in it on the upper right corner of the screen. Next, select ‘Add New Charger Group’. 5. !IMPORTANT! Before you continue this section, please make sure your mobile device is connected to WiFi 2.4Ghz...
- Page 20 6. Select the charger you have just entered and click ‘add’. Now,input the details of your wifi network and click ‘confirm’. 7. On the next page you’re taken to, click on the three dots in the upper right corner of the screen. Select “Server information”.
-
Page 21: Charging Operation
8. Enter the following server information details. (Please leave ‘Path’ blank.) IP/Domain : ocpp.monta.app Port: 443 Path: *leave blank* Protocol type: WSS 8. Charging Operation Connecting your electric vehicle to charger 1. Plug the charging connector into the EV charger, checking it is connected tightly. -
Page 22: Troubleshooting
Charger Status State LED Status Standby On, but no charger Fast flashing plugged in. green Ready to Plugged in but not Fast flashing charge charging. yellow Charging Plugged in and charging Slow flashing green Stop charging Charging has stopped, Solid green charger is still plugged in Fault Error... - Page 23 Over 6mA DC Constant Fault Recover after unplug DCLeak leakage connector for 180s current error OverVolt Electricity Constant Fault Recover after voltage under is less than 255V for voltage error continuous 500s VoltDerate Electricity Without Normal Recover after voltage is under less than255V for con- voltage...
-
Page 24: Disposal
10. Disposal The packaging materials are environmentally friendly and can be recycled. Please dispose of packaging in the relevant containers to recycle it. Do not dispose this device with the household waste. Recycle with electrical devices at your local collection point. For more detailed information about recycling of this device, please contact your local council. - Page 25 One Electrical vehicle charger has the benefit of our manufacturer’s guarantee, which...
- Page 26 4.4 any installation, alteration or repair by you or by a third party who is not a recommended One Electrical installer or repairer. For the avoidance of doubt, any attempt to open the charger by anyone other than us or our appointed agent will invalidate the warranties referred to in clauses 1 and 2 above;...
- Page 27 of the terms of the Licence. 4.9 Subject to clause 3.2, if: 4.9.1 you give us notice in writing during the Warranty Period within a reasonable time of discovery that some or all of the Products do not comply with the warranty set out in either 1 or 2; 4.9.2 we are given a reasonable opportunity of examining such Products;...
- Page 28 Software in all material respects. 6. Warranty Claim 6.1 In case you need to exercise you warranty rights please get in contact with One Electrical through the following channels: 6.1.1 Via mail to our address: One Electrical,...
-
Page 29: Installation Details
12. Installation Details Location: ____________________ Manufacturer Name: One Electrical Manufacturer Contact: 0161 703 2201 EV S/N: ____________________ Approved & Qualified technician name: ____________________... - Page 30 One Electrical Ltd www.oneelectrical.com Tel: 0161 703 2201 Email: sales@oneelectrical.com Bankfield Rd, Manchester, M29 8QH...
