Summary of Contents for IFM VTV12A

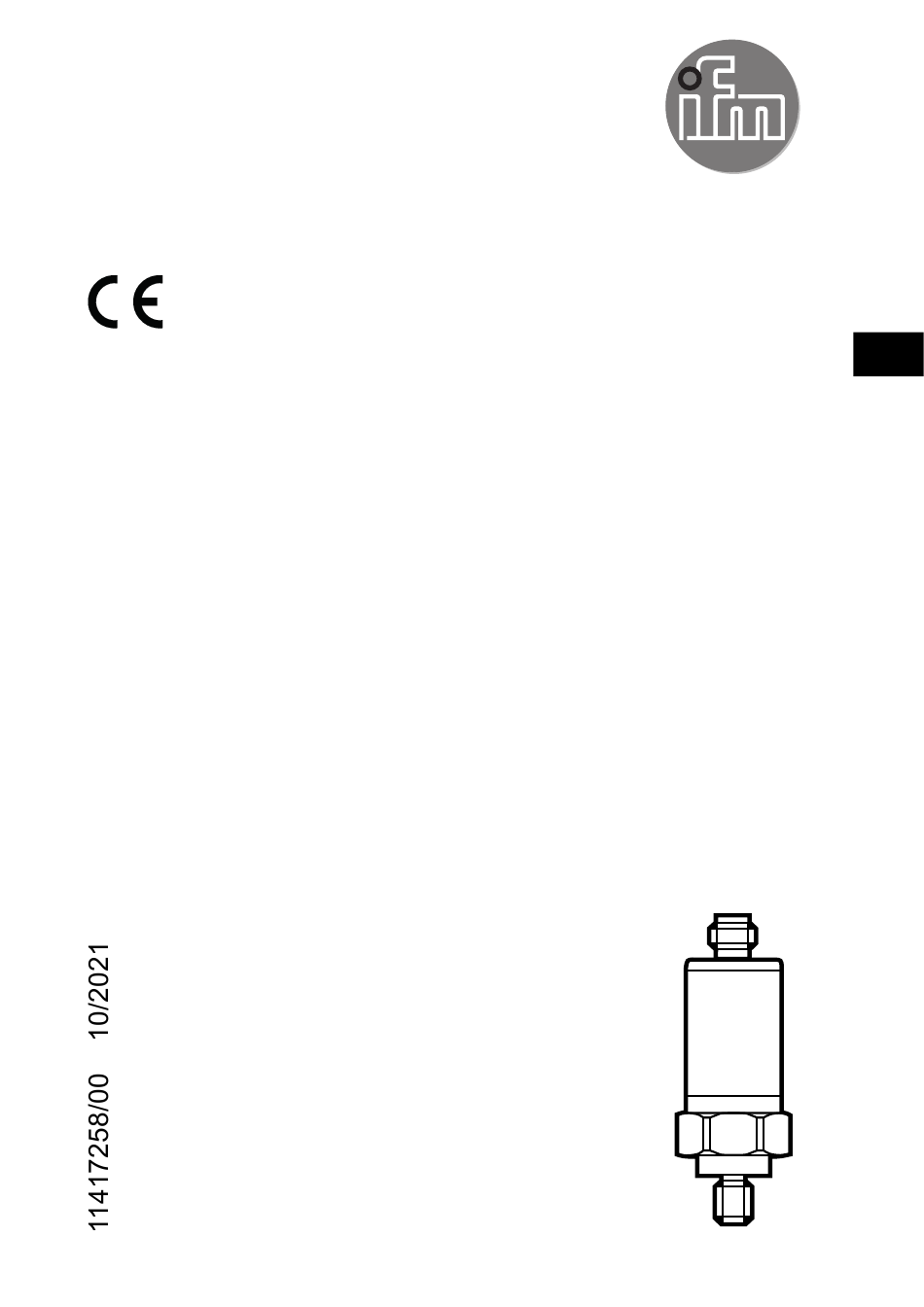

- Page 1 Operating instructions Vibration transmitter VTV12A...
- Page 2 Symbols used ► Instructions Important note Non-compliance can result in malfunction or interference. 1 Safety instructions • Please read the product description prior to set-up of the unit. Ensure that the product is suitable for your application without any restrictions. •...
- Page 3 3 Installation ► Mount only in a thick housing wall (e.g. transport thread). ► Ensure that the signal direction is correct. ► Ensure a safe vibration transmission and allow no elastic intermediate layers. ► Select either the ¼"-28 UNF / M8 (2) or the ¼"-28 UNF (3) threaded adapter and insert into the unit (1).
- Page 4 4.1 Measuring range mm/s 0...25 4...20 Response delay Frequency range 10...1000 5 Scale drawing M12 x1 1/4''-28 UNF 24,5 1: Threaded adapter ¼"-28 UNF / M8 2: Threaded adapter ¼"-28 UNF Tightening torque 8 Nm 6 Maintenance, repair, disposal The operation of the unit is maintenance-free. It is not possible to repair the unit. After use dispose of the unit in an environmentally friendly way in accordance with the applicable national regulations.
- Page 5 7 Technical data Technical data and further information at www.ifm.com...
