Temperature transmitter

Advertisement

Quick Links

Operating instructions
Temperature transmitter
UK
TCCxxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCC8 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IFM TCC8 Series

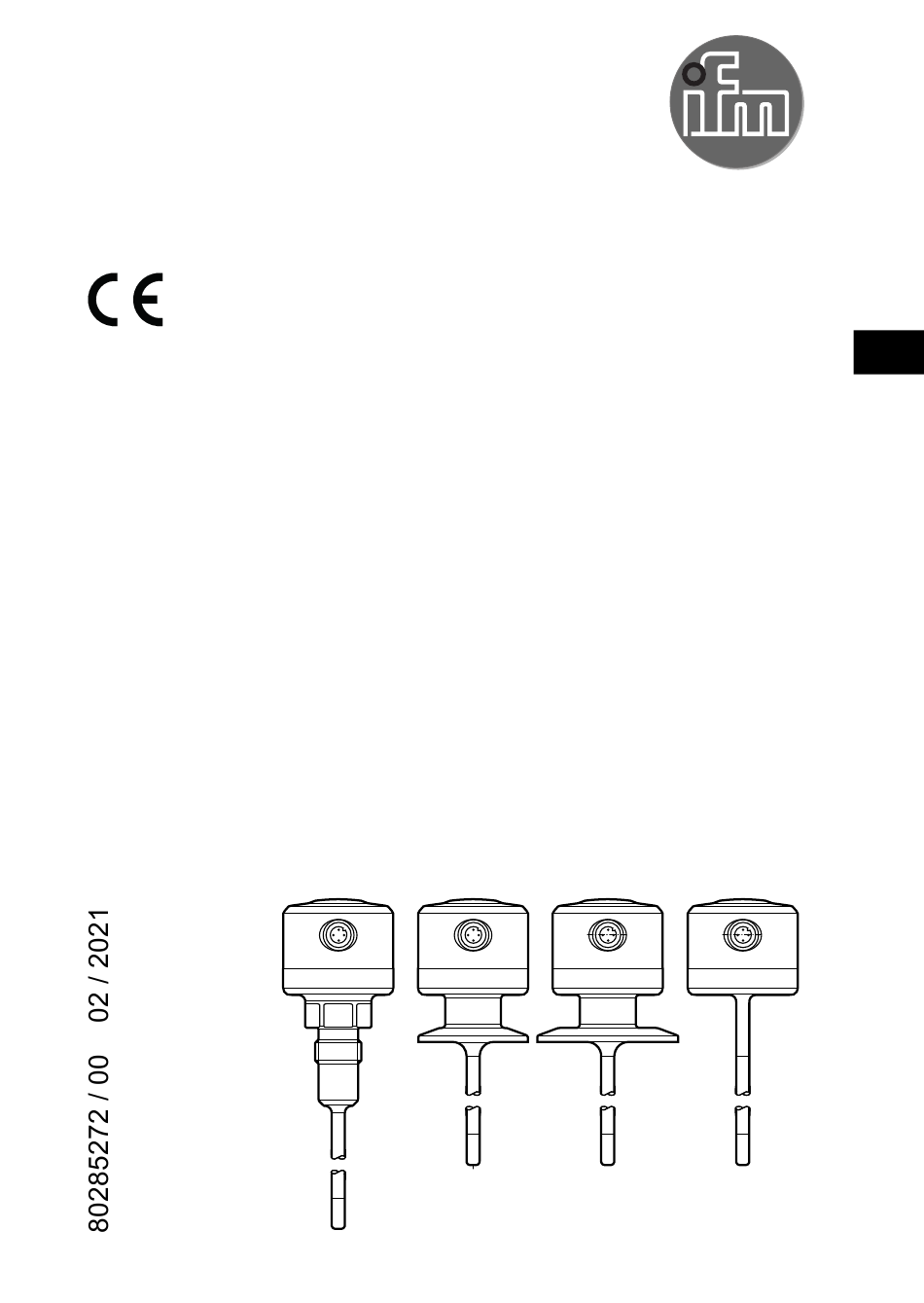

  • Page 1 Operating instructions Temperature transmitter TCCxxx...
  • Page 2: Table Of Contents

    Contents 1 Preliminary note ���������������������������������������������������������������������������������������������������3 1�1 Key to the symbols ����������������������������������������������������������������������������������������3 2 Safety instructions �����������������������������������������������������������������������������������������������3 3 Getting started �����������������������������������������������������������������������������������������������������4 4 Functions and features ����������������������������������������������������������������������������������������4 5 Function ���������������������������������������������������������������������������������������������������������������5 5�1 IO-Link �����������������������������������������������������������������������������������������������������������5 5�2 Diagnostic signal �������������������������������������������������������������������������������������������6 5�3 Analogue signal ���������������������������������������������������������������������������������������������6 5�4 Diagnostic function ����������������������������������������������������������������������������������������8 5�4�1 Calibration check function �������������������������������������������������������������������8 5�4�2 Diagnostic messages ���������������������������������������������������������������������������9 5�5 Simulation mode ������������������������������������������������������������������������������������������10...
  • Page 3: Preliminary Note

    14 Factory setting �������������������������������������������������������������������������������������������������21 1 Preliminary note Technical data, approvals, accessories and further information at www�ifm�com� 1.1 Key to the symbols ► Instruction > Reaction, result […] Designation of keys, buttons or indications → Cross-reference Important note Non-compliance may result in malfunction or interference�...
  • Page 4: Getting Started

    • The manufacturer assumes no liability or warranty for any consequences caused by tampering with the product or incorrect use by the operator� • Installation, electrical connection, set-up, operation and maintenance of the product must be carried out by qualified personnel authorised by the machine operator�...
  • Page 5: Function

    The IODDs necessary for the configuration of the unit, detailed information about process data structure, diagnostic information, parameter addresses and the necessary information about the required IO-Link hardware and software can be found at www�ifm�com�...
  • Page 6: 5�2 Diagnostic Signal

    The IO-Link interface provides the following functions: • Remote parameter setting of the unit� • Noise immune process value transmission without measured value losses� • Transmission of the parameter settings to other units of the same type or when the unit is replaced� •...
  • Page 7 The measuring range is scalable: • [ASP] defines at which measured temperature value the analogue signal is 4 mA (OU2 = I) or 20 mA (OU2 = Ineg)� • [AEP] defines at which measured temperature value the analogue signal is 20 mA (OU2 = I) or 4 mA (OU2 = Ineg)�...
  • Page 8: 5�4 Diagnostic Function

    5.4 Diagnostic function The unit continuously checks the temperature measurement (→ 5.4.1 Calibration check function) and detects further events� In case of deviations from normal operation, a diagnostic message is provided (→ 5.4.2)� 5.4.1 Calibration check function By measuring with two different, thermically coupled sensor elements (measuring element and reference element) the unit automatically detects temperature differences during temperature measurement�...
  • Page 9: 5�4�2 Diagnostic Messages

    In addition, a diagnostic bit is provided that corresponds to the behaviour of the physical switching output� List of all diagnostic messages readable via IO-Link → IO Device Description (IODD) at www�ifm�com�...
  • Page 10: 5�5 Simulation Mode

    Diagnostic Analogue Diagnostics output output • temperature deviation between measuring element and normal oper- reference element ≤ calibration green 4���20 mA ation check limit (ccL) • no error • temperature deviation between measuring element and warning reference element > calibration blue 4���20 mA check limit (ccL)
  • Page 11: 5�6 Binary Data Transmission (Blob)

    ► Make sure that the sensor is integrated into the system according to 3-A� ► Use only adapters with 3-A certification and marked with the 3-A symbol (→ accessories at www.ifm.com.). The process connection must be provided with a leakage port� This is ensured when installed using adapters with 3-A approval�...
  • Page 12: 6�2 Use In Hygienic Areas To Ehedg

    The following applies to units with 3-A certification: ► Only use adapters with 3-A certification for the process connection� ► Do not install the unit at the lowest point of the pipe or tank (→ position 5) in order that the medium can run off the area of the sensor elements�...
  • Page 13: 6�3 Units With Clamp Process Connection

    TCC8xx / TCC9xx TCC5xx Ø d = 6 mm d = 6 mm Ø D Fig� 1: mounting dimensions for use according to EHEDG 1: seal in accordance with EHEDG position paper 2: sealing ring between the housing and the process connection 3: adapter 4: leakage port 5: PEEK gasket...
  • Page 14: 6�4 Units With Process Connection G ½ Sealing Cone

    - The PEEK gasket is long-term stable and maintenance-free� - When the PEEK gasket is mounted several times, check and replace it if necessary� - The PEEK gasket has been rated for ifm adapters with end stop towards the medium� ► Use adapters with leakage ports�...
  • Page 15: 6�5 Units For Process Adaptation Via Clamping Ring

    6.5 Units for process adaptation via clamping ring The units of design TCC2xx can be mounted in the pipe or in the tank directly in contact with the medium via a clamping ring adapter� Mounting examples: Fig� 2: direct installation Fig�...
  • Page 16: Electrical Connection

    7 Electrical connection The unit must be connected by a qualified electrician�Voltage supply according to EN 50178, SELV, PELV� The unit is designed exclusively for 3-wire operation� ► Disconnect power� ► Connect the unit as follows: Colours to DIN EN 60947-5-2 BK: black OUT2 BN: brown...
  • Page 17: Operating And Display Elements

    8 Operating and display elements • At the head of the unit is an LED that is green during normal operation� • If the deviation between the sensor elements is too high, the LED changes to blue (→ 5.4.1 Calibration check function)� •...
  • Page 18: 9�1 Parameters

    9.1 Parameters Parameter Explanation Configuration of the analogue signal: I = 4���20 mA or Ineg = 20���4 mA or OFF = output off Switching logic for the diagnostic output: PnP or nPn� ASP2 Analogue start point for measured temperature value� AEP2 Analogue end point for measured temperature value�...
  • Page 19: Operation

    6 s (= normal operating mode)� It carries out its measurement and evaluation functions and provides output signals according to the set parameters� 11 Technical data → Technical data at www.ifm.co. 12 Troubleshooting The unit has many self-diagnostic options� It monitors itself automatically during operation (→...
  • Page 20 Diagnostics Event Corrective measures calibration check warning 0x8CAE blue ► check the unit and adapt (temperature deviation between (36014) ccL, if necessary the two sensor elements exceeds ► replace unit ccL) failure reference element 0x5010 blue ► prepare replacement of (20496) the unit failure measuring element...
  • Page 21: Maintenance, Repair And Disposal

    13 Maintenance, repair and disposal If used correctly, no maintenance and repair measures are necessary� Only the manufacturer is allowed to repair the unit� ► After use dispose of the unit in an environmentally friendly way in accordance with the applicable national regulations� ►...
