Item #1003 023 407
Model #YG216C-NI
USE AND CARE GUIDE
ROANOKE 56 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
THANK YOU
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY ROANOKE YG216C-NI
Summary of Contents for HAMPTON BAY ROANOKE YG216C-NI

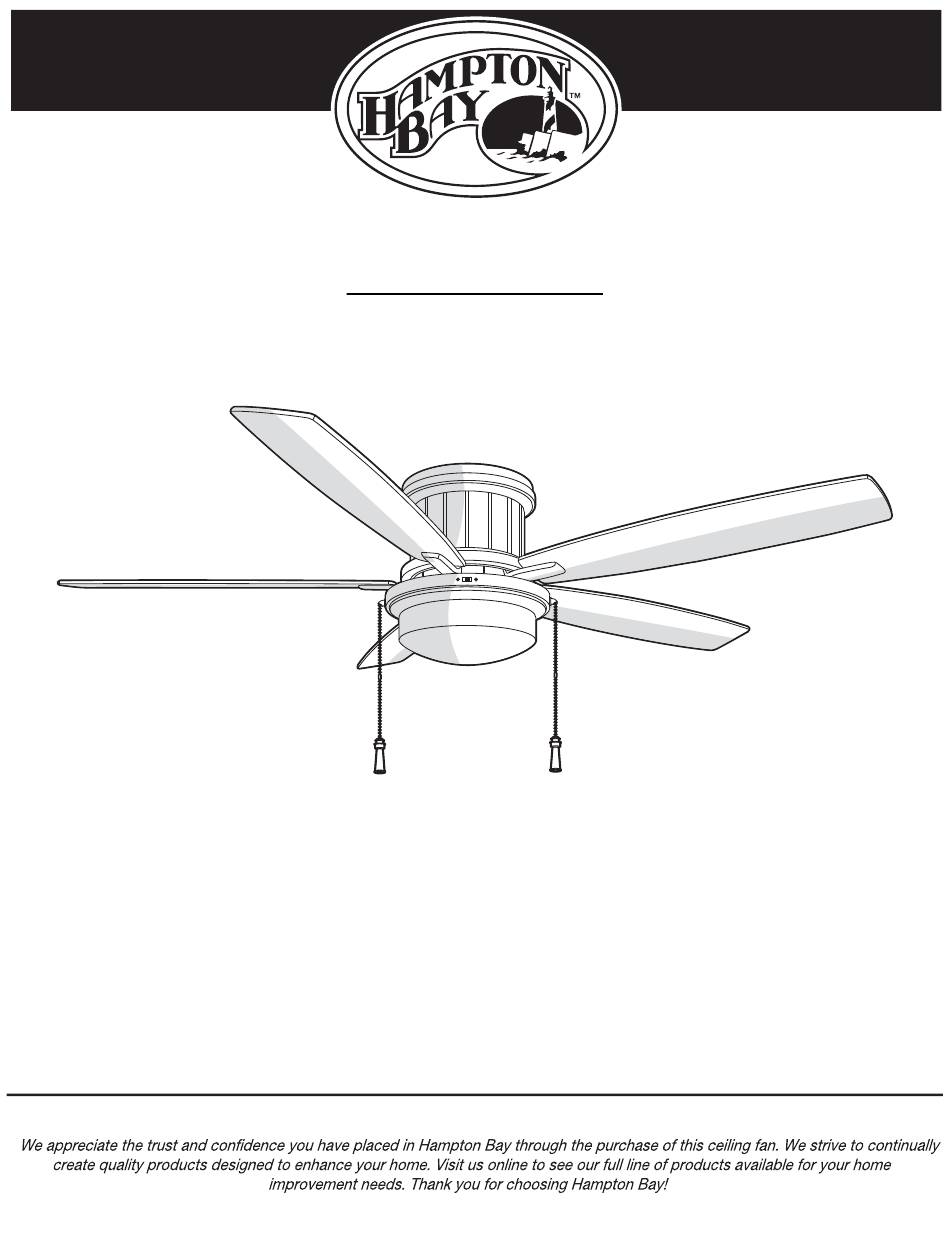

- Page 1 Model #YG216C-NI USE AND CARE GUIDE ROANOKE 56 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM...
-
