USE AND CARE GUIDE

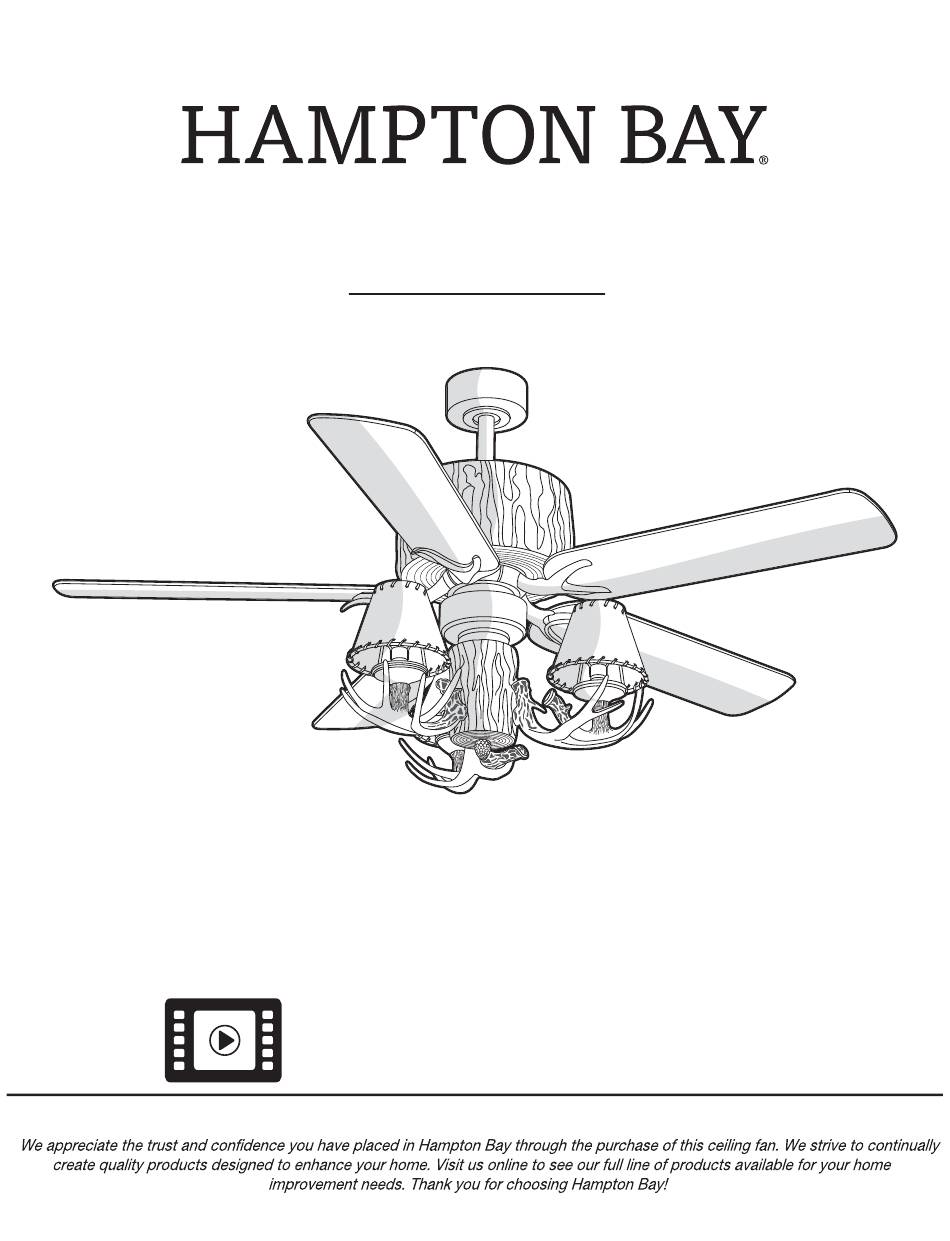

LODGE 52 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find
this fan and click the link of visual instruction in the product overview section.
THANK YOU
THANK YOU
Item #1005 228 605
Model # YG098B-NM
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY YG098B-NM
Summary of Contents for HAMPTON BAY YG098B-NM
- Page 1 Model # YG098B-NM USE AND CARE GUIDE LODGE 52 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Visual instruction of how to install this fan: Visit www.homedepot.com and enter either the Item or Model number to find...
-
