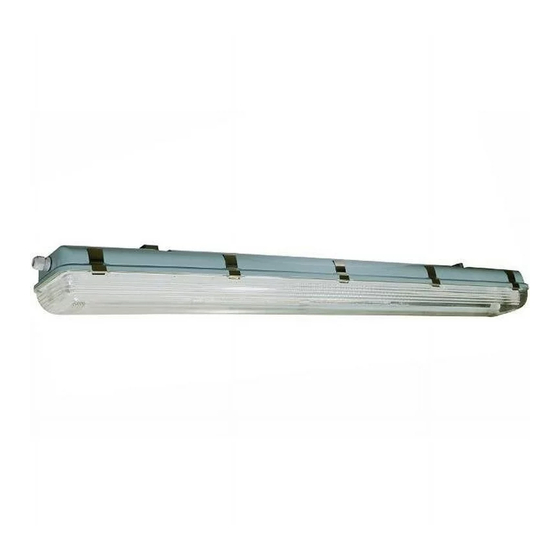

Larson Electronics GVP-48-2L-LED-125VDC Instruction Manual

7000 Lm - IP67 - 125V High Voltage Direct Current
Do not attempt operation until you are familiar with all warnings, precautions, and procedures outlined within this
instruction sheet. Read carefully before operating. Retain these instructions for future reference.
CAUTION
•
Risk of fire/electrical shock. If not qualified, consult an electrician.
•
Disconnect power at fuse or circuit breaker before installing or servicing.
•
Edges may cut. Handle with care.
SAFETY INSTRUCTIONS (Read Carefully for your Protection)
•
ETL approved for wet locations.
•
Connect fixture to voltage on nameplate. Voltage 125 V DC High Voltage Direct Current.
•
A qualified electrician or person with experience in household wiring should install this fixture. The electrical
system and the method of connecting to electricity must be in accordance with the National Electrical Code and
local building codes.
•
Keep away from flammable objects. Do not position fixture within one inch of any combustible materials.
•
Your light fixture is prewired for easy installation.
•
This fixture is rated for 50,000+ hours.
•
Wear rubber sole shoes and work on a sturdy wooden ladder.
•
To avoid hazard to children, account for all parts and destroy packing materials.
PREPARATION
•
Before beginning assembly, installation, or operation of product, make sure all parts are present.
Compare parts with the package contents list and diagram.
•
If any part is missing or damaged, do not attempt to assemble, install or operate the product.
TROUBLESHOOTING
PROBLEM
Light does not come on
Wiring to the unit is loose
QUESTIONS, PROBLEMS, MISSING PARTS
Before returning your fixture, please call Larson Electronics at 1-800-369-6671 or log on to
http://www.larsonelectronics.com for replacement parts.
WARNING
•
Always hire a licensed electrician for proper installation.
•
Always mount this fixture to a grounded junction/breaker box.
LIGHT ASSEMBLY
1. Turn off the power at the main fuse or breaker box.
2. Thread wires through wire gland and back cover wire hole.

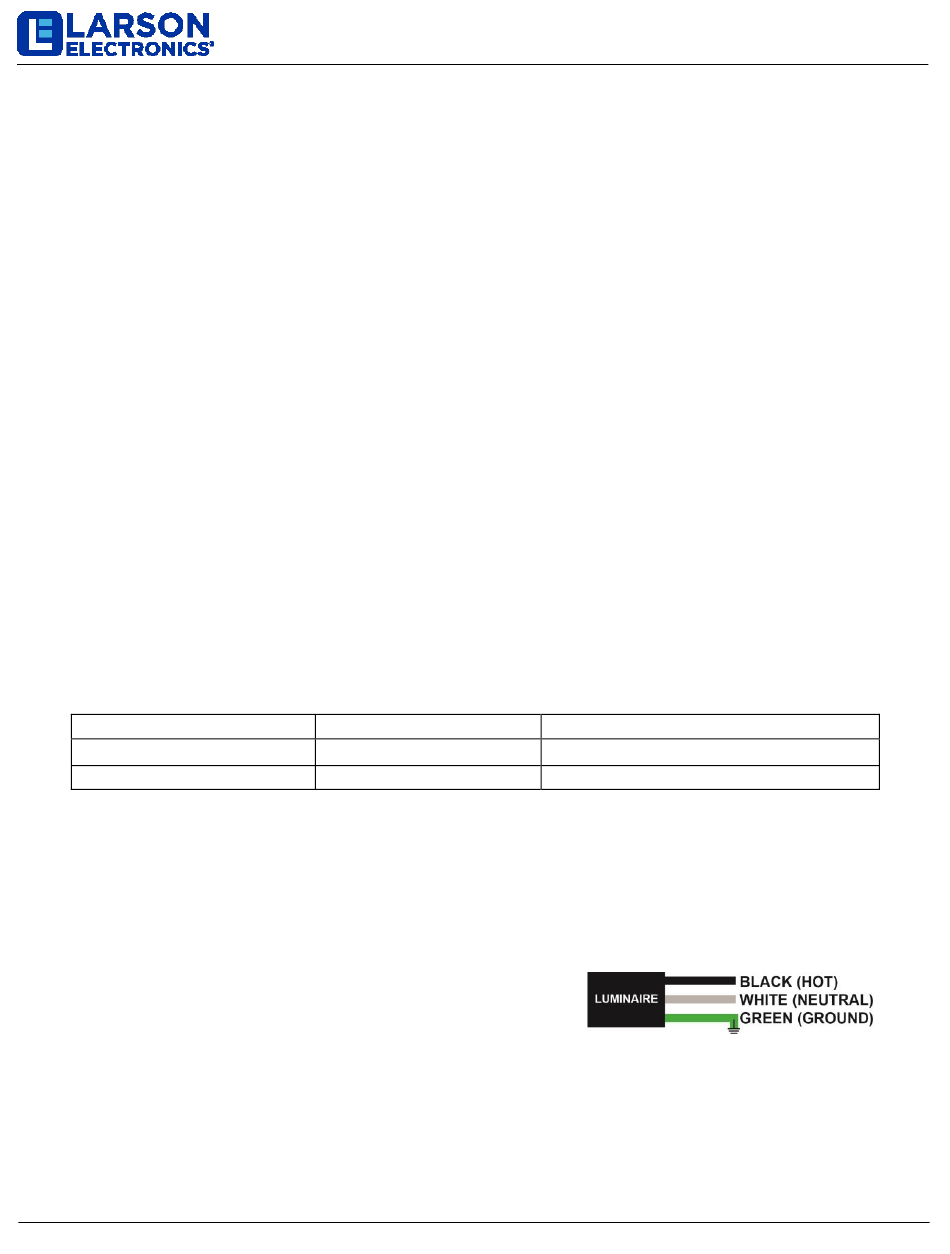

3. Connect the wires to the wire terminal L to L, N to N then fasten the wire gland.
4. Attach to the LED tubes to the lamp holder.
5. Put the tube fixing board in the back cover, fixing poles through the board's holes. Then turn around the
head of fixing poles 90° to fix the board to back cover.
6. Use the lens and back cover clips to attach lens to back cover.
7. Use the wall fixing clips to fix the light fixture to the wall.
8. Turn on power at main fuse breaker box.
Larson Electronics, LLC
56W Vapor Proof 4' LED Light for Outdoor Use
Instruction Manual
POSSIBLE CAUSE
No power to the fixture
Phone: (800) 369-6671
Check if circuit breaker is tripped
--- Confirm fixture is properly grounded
Fax: (903) 498-3364
GVP-48-2L-LED-125VDC
CORRECTIVE ACTION
www.larsonelectronics.com 1 of 2
