Kodak Advantix 3100AF User Manual

Kodak advantix 3100af camera: user guide
Hide thumbs Also See for Advantix 3100AF:

Advertisement

Table of Contents

3100
AF
Camera
1

Advertisement

Table of Contents
loading

Related Manuals for Kodak Advantix 3100AF

Summary of Contents for Kodak Advantix 3100AF

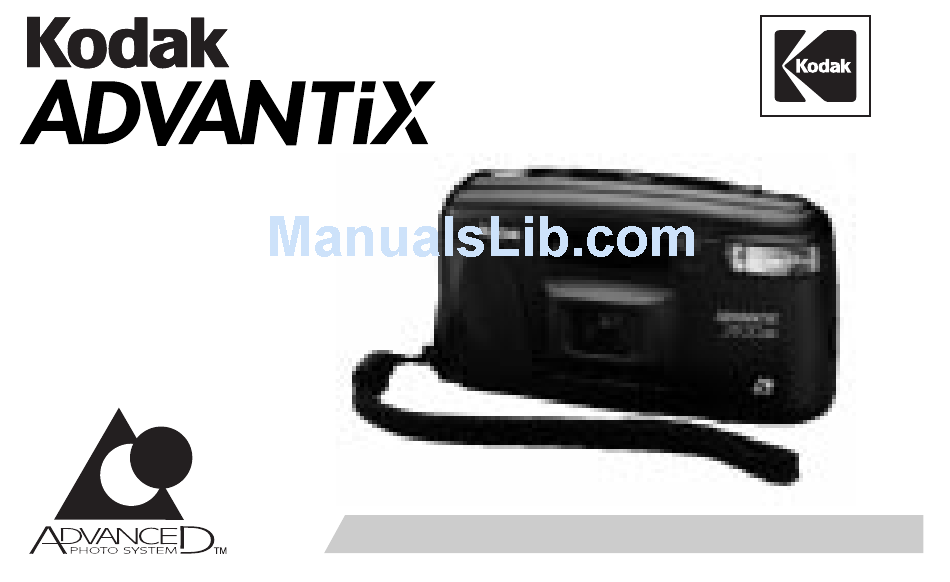

  • Page 1 3100 Camera...
  • Page 2 Film Status Indicator (FSI) A highlighted indicator advances from one symbol to another to identify the status of the film inside the cassette. Processed Negatives Unexposed Partially Exposed Fully Exposed...
  • Page 3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: Your model camera has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 4 Look for this logo to be certain the film you buy is made for this camera. Look for this logo to select a certified photofinisher for developing your film and to assure that you get all the features of the Advanced Photo System.
  • Page 5 (18) (11) (17) (12) (13) (14) LEFT MODE (10) OPEN (15) (16) (23) (24) (22) (21) (20) (19) (27) (26) (25)
  • Page 6 Need help with your camera or more information about the new Advanced Photo System? Call Kodak (United States only) toll free from 8:00 a.m. to 8:00 p.m. (Eastern time) Monday through Friday at 1 (800) 242-2424. The toll free number (in Canada only) from 8:30 a.m. to 5:00 p.m.

  • Page 7: Camera Identification

    CAMERA IDENTIFICATION See inside cover flaps of manual for camera diagrams. (1) Shutter Button (2) On/Off Button (3) Self-Timer Lamp (4) Print-Size Selector (5) Meter-Cell Window (6) Flash (7) Battery Door (8) Viewfinder (9) Lens (10) Focus-Ranging Sensors (11) LCD Panel (12) Red-Eye- Reduction Symbol...
  • Page 8 BATTERY This camera uses a 3-volt lithium KODAK KCR 2 (or equivalent) Battery that supplies power for all camera operations. This camera automati- cally turns off after 4 minutes. Battery Indicator When the battery symbol (24) “blinks,” you will need to replace the battery soon.
  • Page 9 Battery Tips: • Keep a spare battery with you at all times. Lithium batteries perform consistently until they suddenly die. • Read and follow all warnings and instructions supplied by the battery manufacturer. • Keep battery away from children. • Do not attempt to disassemble, recharge or short circuit the battery, or subject it to high temperature or fire.

  • Page 10: Loading The Film

    LOADING THE FILM For best all-around results for indoor and outdoor picture-taking, use KODAK ADVANTIX 200 Film. 1. Slide the film-door latch (19) and insert the film cassette completely into the film chamber into the film chamber. 2. Close the film door (20) to start the auto-film advance. The LCD panel (11) will show the total number of exposures (b).

  • Page 11: Taking Pictures

    TAKING PICTURES You can take Classic (C), HDTV (H), and Panoramic (P) pictures on the same film cassette (see following table for Typical Print Sizes). Your photo-processing cost will be based on the format size(s) that you use to expose the film. 1.
  • Page 12 Typical Print Sizes Classic Group & Wide (HDTV) Panoramic x 6" or 4 x 7" x 10" to 4 x 11 " x 5" or 4 x 6" (88.9 x 152 mm or (88.9 x 254 mm to (88.9 x 127 mm or 102 x 178 mm) 102 x 292.7 mm) 102 x 152 mm)
  • Page 13 — To cancel the flash, especially indoors where flash is prohibited, such as in theaters and museums or in dim lighting situations, use the off-flash feature. Use a tripod (tripod socket [22]) or place the camera on a firm support and use high-speed KODAK ADVANTIX Film.
  • Page 14 1. Press the on/off button (2) to turn the camera on 2. Press the mode button (15) to select red-eye reduction, self-timer, off flash, or auto-flash. NOTE: When there is no arrow visible on the LCD panel (11), you are in the auto-flash mode.
  • Page 15 Tips for Better Pictures • Hold the camera steady when taking pictures. • Keep your pictures simple. Move close enough to your subject so it fills the viewfinder but not closer than 2 • Take pictures at the subject’s level. Kneel down to take pictures of children and pets.

  • Page 16: Taking Flash Pictures

    TAKING FLASH PICTURES In dim light, such as indoors or outdoors in heavy shade or on dark overcast days, you need flash. Your camera has a built-in flash which automatically fires when needed. If the flash-warning/self-timer lamp (18) “blinks,” the flash is not fully charged. Wait for the light to turn off before you take a picture.
  • Page 17 Flash Tips • Turn on room lights and have the subject face the lights to minimize red eyes in pictures. • Stand at an angle to shiny surfaces like windows or mirrors to avoid flash reflection and bright spots in your pictures. •...

  • Page 18: Unloading The Film

    UNLOADING THE FILM After you take the last picture on the film cassette, the film automatically starts to rewind. When the film is fully rewound, the LCD panel (11) displays “0” and an empty cassette symbol (c). When you remove the cassette from the camera, the LCD panel displays “E,”...
  • Page 19 TROUBLESHOOTING What happened Camera will not operate Film does not advance or rewind LCD panel is blank Probable cause There are no more pictures remaining Battery weak, dead, missing, or improperly inserted Battery weak, dead, missing, or improperly inserted (see Probable cause above) Solution Remove the film...
  • Page 20 What happened Film cassette does not fit completely into film chamber; film door does not close All LCD indicators "blink" Probable cause Loaded exposed, partially exposed, or processed film into the camera Camera mechanism problem Solution Load only unexposed film into the camera Press shutter button, turn the camera off and on, or replace or reload...

  • Page 21: Specifications

    Apertures: f /4.6, f /8.8 Shutter: Programmed electronic; speeds 1/100 and 1/160 sec. Power Source: one 3-volt lithium KODAK KCR 2 (or equivalent) Battery; auto power off after 4 minutes Dimensions: Approx. 1.5 x 2.5 x 4.7 in (38 x 63 x 119 mm) Weight: Approx.
  • Page 22 Consumer Imaging EASTMAN KODAK COMPANY Rochester, NY 14650 1-97 Pt. No. 916 3494 Printed in U.S.A.
