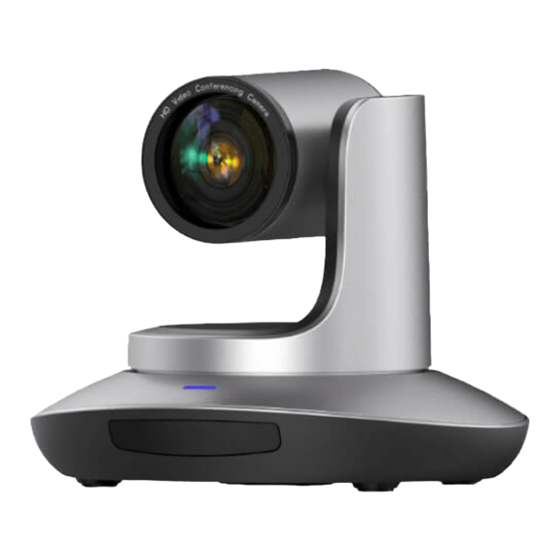

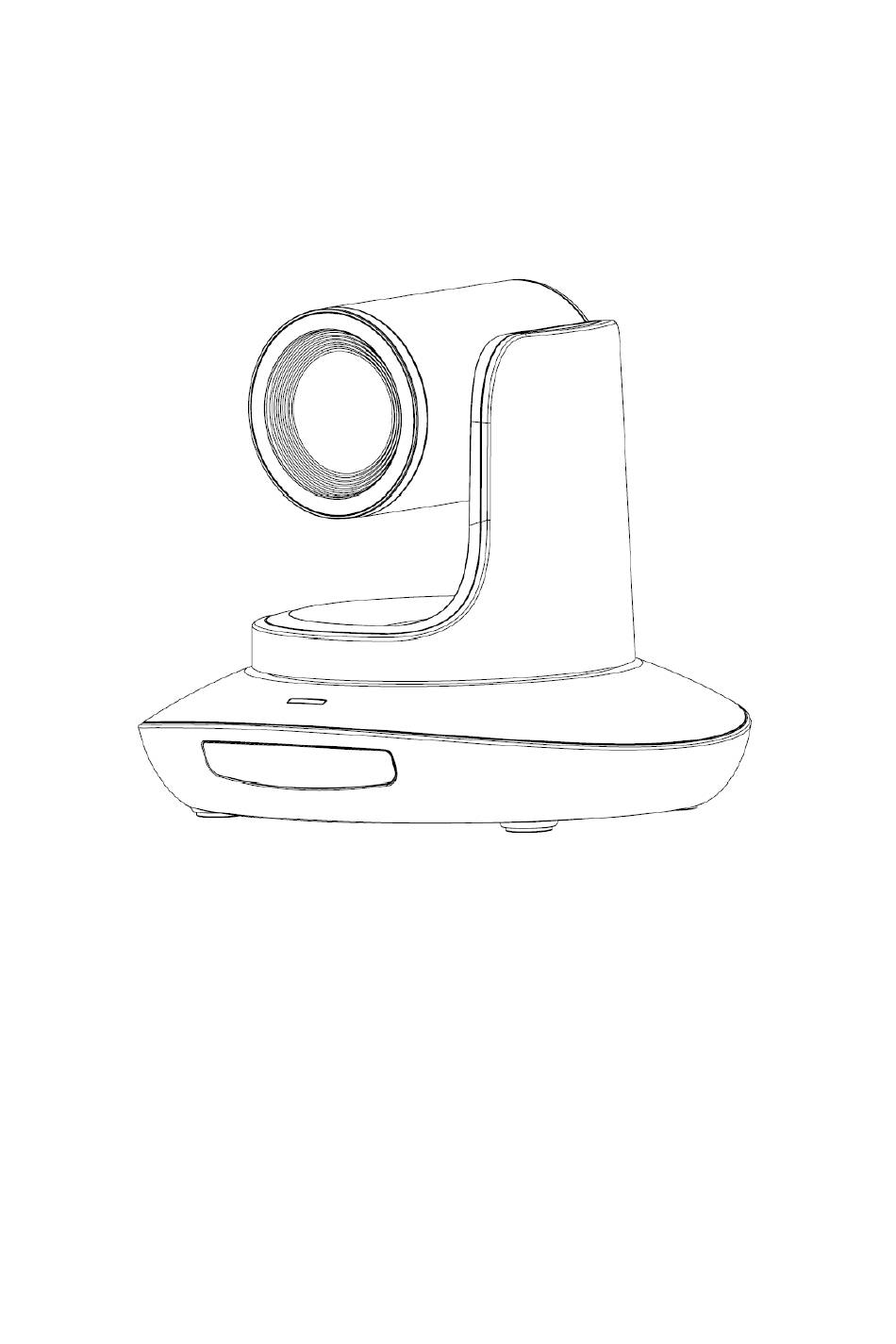

20x HD IP PTZ Video Camera
PTZ-камера CleverMic 1030U2HS-NDI
User Manual
Version V3.3
（English）
J.BC.0205.0124

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1030U2HS-NDI and is the answer not in the manual?

Questions and answers

Related Manuals for CleverMic 1030U2HS-NDI

Summary of Contents for CleverMic 1030U2HS-NDI

  • Page 1 20x HD IP PTZ Video Camera PTZ-камера CleverMic 1030U2HS-NDI User Manual Version V3.3 （English） J.BC.0205.0124...

  • Page 2: Table Of Contents

    CONTENT CONTENT ......................................1 SAFETY GUIDES ..................................... 2 PACKING LIST ....................................3 QUICK START....................................3 PRODUCT HIGHLIGHTS ................................4 CAMERA SPEC ....................................4 CAMERA INTERFACE ................................... 6 CAMERA DIMENSION ................................... 6 IR REMOTE CONTROLLER ................................. 7 VISCA IN（RS232 PORT)................................9 VISCA PROTOCOL ..................................

  • Page 3: Safety Guides

    SAFETY GUIDES 1. Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. 2. The camera power input range is 100-240V AC(50-60Hz),ensure the power supply input within this rate before powering on. 3.

  • Page 4: Packing List

    PACKING LIST Check all bellow items when open the package: Camera· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 Power Adapter ·...

  • Page 5: Product Highlights

    PRODUCT HIGHLIGHTS • Adopts most advanced ISP, 1/2.8 inch 2.4MP sensor, providing full HD video resolution and crystal clear image. • High end 20x optical zoom, 2x digital zoom lens with 60 degree field of view. • IP, HDMI, 3G-SDI, USB video outputs interface, fit for different application. •...
  • Page 6 Bit Rate Control Variable Bit Rate, Constant Bit Rate Video Bit Rate 1024Kbps~16384Kbps Supported Protocol TCP/IP, HTTP, RTSP, DHCP ,RTMP, Onvif, VISCA over IP(TCP&UDP), HTML5, VISCA, PELCO P/D POE+ Supported Daisy Chain Support RS232 serial daisy chain Minimum Lux 0.1lux White Balance ATW/Manual/Auto/Indoor/Outdoor/Push Exposure...

  • Page 7: Camera Interface

    CAMERA INTERFACE 1. Camera Lens 6. Tripod Screw Hole 11. 3G-SDI port 2. Camera Base 7. Installation Hole 12. USB3.0 port 3. IR Receiver Panel 8. RS232 control port (input) 13. RJ45 port 4. Power Indicator Light 9. RS232 control port(output) 14.

  • Page 8: Ir Remote Controller

    IR REMOTE CONTROLLER POWER Under normal working mode, short press POWER key, to enter standby mode; Press it again, the camera will do self-configuration, then go back to HOME position. It will go to preset position if power on model has been set before. FREEZE （Not Supported in USB）...
  • Page 9 FOCUS KEY ( ON THE LEFT) Manual focus, only valid under manual focus model. ZOOM KEY( ON THE RIGHT SIDE) Set the zoom rate NAVIGATE KEY: UP/DOWN/LEFT/RIGHT Under working mode, use navigate key to set the pan tilt, and select menu when enter OSD. OK /HOME KEY Under working mode, short press OK to make the camera go back to HOME position;...

  • Page 10: Visca In (Rs232 Port)

    VISCA IN (RS232 PORT) VISCA V_IN V_OUT RS485 A(+) IR OUT IR OUT B(-) VISCA IN &Mini DIN Connection VISCA IN & DB9 Connection Camera VISCA IN Camera VISCA IN Windows DB-9 Mini DIN A(+) A(+) IR OUT IR OUT B(-) B(-) VISCA Network Construction:...

  • Page 11: Visca Protocol

    VISCA PROTOCOL Part1 Camera Return Command Ack/Completion Message Command Note Packet z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera address+8 Error Messages Command Note Packet Returned when the command format is different or when a command with illegal Syntax Error z0 60 02 FF...
  • Page 12 Command type function command Far(Standard) 8x 01 04 08 02 FF Near(Standard) 8x 01 04 08 03 FF Far (Variable) 8x 01 04 08 2p FF p=0 (Low) to 7 (High) CAM_Focus Near (Variable) 8x 01 04 08 3p FF p=0 (Low) to 7 (High) Direct 8x 01 04 48 0p 0q 0r 0s FF...
  • Page 13 Command type function command Down 8x 01 04 0A 03 FF Direct 8x 01 04 4A 00 00 0p 0q FF pq: Shutter Position (0~0x15) Reset 8x 01 04 0B 00 FF 8x 01 04 0B 02 FF Iris Setting(0~0xD) CAM_Iris Down 8x 01 04 0B 03 FF...
  • Page 14 Command type function command 8x 01 06 A0 02 FF CAM_Speed By Zoom 8x 01 06 A0 03 FF CAM_PT Speed PT Speed 8x 01 04 C1 00 00 0p 0q FF pq: PT speed 0x05~0x18 CAM_Zoom Speed Zoom Speed 8x 01 04 D1 00 00 0p 0q FF pq: Zoom speed 0x01~0x07...
  • Page 15 Command type function command 720P2997 0x0f 1080P24 0x2a 1080P2398 0x2b CAM_ID Write 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF) DHCP off 8x 01 04 AE 00 FF DHCP off DHCP control DHCP on 8x 01 04 AE 01 FF DHCP on 8x 01 04 AB 0p 0q 0r 0s 0m 0n...
  • Page 16 Command type function command Menu Back 8x 01 06 06 10 FF Menu step back Menu OK 8x 01 7E 01 02 00 01 FF Menu ok 8x 01 06 08 02 FF IR_Receive 8x 01 06 08 03 FF IR(remote commander)receive ON/OFF On/Off 8x 01 06 08 10 FF...
  • Page 17 y0 50 00 FF Auto y0 50 01 FF Indoor mode y0 50 02 FF Outdoor mode CAM_WB Mode Inq 8x 09 04 35 FF y0 50 03 FF OnePush mode y0 50 04 FF y0 50 05 FF Manual CAM_RGain Inq 8x 09 04 43 FF y0 50 00 00 0p 0q FF...
  • Page 18 y0 50 02 FF IR_Receive 8x 09 06 08 FF y0 50 03 FF Pan-tilt Max Speed Inq 8x 09 06 11 FF y0 50 ww zz FF ww: Pan Max Speed zz: Tilt Max Speed y0 50 0w 0w 0w 0w Pan-tilt Pos Inq 8x 09 06 12 FF wwww: Pan Position zzzz: Tilt Position...
  • Page 19 VISCA PAN TILT ABSOLUTE POSITION VALUE Pan Angle VISCA Value Tilt Angle VISCA Value -170 0xF670 0xFE50 -135 0xF868 0x0000 0xFAF0 0x01B0 0xFD78 0x0360 0x0000 0x510 0x0288 0x0510 0x0798 0x0990 VISCA PAN TILT SPEED VALUE Pan(Degree/Second) Pan(Degree/Second))

  • Page 20: Pelco-D Protocol

    PELCO-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02...

  • Page 21: Pelco-P Protocol

    PELCO-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0Xa0 Address 0x00 0x08 Pan Speed Tilt Speed 0Xaf Down 0Xa0 Address 0x00 0x10 Pan Speed Tilt Speed 0Xaf Left 0Xa0 Address 0x00 0x04 Pan Speed Tilt Speed 0Xaf Right 0Xa0...

  • Page 22: Osd Menu

    OSD MENU 1. Under working mode, press the MENU key on the IR remote controller, to enter the OSD menu as bellow: 2. After enter the main menu, use the navigate UP/DOWN key to select the main menu. Once been selected, the main menu will change to blue background, and the right side will show all sub menu options.
  • Page 23 Optional：ATW、MANUAL、AUTO、INDOOR、OUTDOOR、 WB MODE Default：ATW PUSH R GAIN Red gain level: 0~255, only valid under manual white balance mode Default：AUTO IMAGE B GAIN Blue gain level:0~255 , only valid under manual white balance mode Default：AUTO FLICK Anti-Flicker setting:50/60HZ, to reduce the video flicker Default：50HZ DZOOM ON/OFF...
  • Page 24 1080P59.94 1080P50 1080I59.94 1080I50 1080P29.97 1080P25 720P59.94 720P50 FORMAT After selecting the system, press OK to switch the system. If it is 720P29.97 720P25 the currently selected system, it will not be activated 1080P60 1080P30 720P60 720P30 1080I60 1080P24 DHCP ON/OFF 192.168.001.188 MASK...

  • Page 25: Uvc Control

    Set IP Address in Menu In order to facilitate customer debugging, the camera has the support menu to set IP address. The specific methods are as follows: 1. Press "MENU" to open the menu interface, select "network parameters" in the menu to call up the IP setting interface: 2.

  • Page 26: Web Setting

    WEB SETTING It is not necessary to install additional video player plug-in to preview the local screen on the web interface. The web interface supports Google Chrome, Firefox, IE, Safari, Opera, 360, QQ and other browsers, adaptability is very good. 1.
  • Page 27 “Video Encode”: can set image encode mode, main stream and sub stream resolution/bit rate/frame rate, bit rate control way, and I frame interval etc as above image. "video Transmission":RTMP settings are available, as shown in the following figure: "Audio Settings" : the audio enable can be off / on, the encoding mode can be selected, and the parameters such as sampling rate and bit rate can be adjusted, as shown in the following figure:...
  • Page 28 “Image Parameter”can set focus, exposure, white balance, image, image quality, noise-reduction, as following picture. Focus including focus mode, default focal distance, digital zoom etc Exposure includes exposure mode, shutter speed, gain, iris, brightness, and anti-flicker. White Balance includes white balance mode, red gain, blue gain.
  • Page 29 Image includes mirror, flip, backlight compensation, Gamma, WDR(wide dynamic range). Image Quality includes brightness, sharpness, contrast, saturation. Noise reduction includes 2D/3D reduction. There is on/off option for 2D, and off/auto/1~4 six options. “Ethernet” includes DHCP mode, IP address, Net mask, Gateway, HTTP Port, RTSP Port, Visca Over IP. Default parameter as following: DHCP Gateway...
  • Page 30 Reset to default: reset the camera to default setting Reset simply: reset camera image parameter Reset Completelyall: reset camera Ethernet and image parameter, language and protocol will not be reset. Reboot: Reboot ISP part of camera Account Setting: is used for setting camera account and password Input the account firstly, then input same password twice, click set to finish Please remember account and password, otherwise you may be not able to login.

  • Page 31: View Rtsp Video Via Vlc

    VIEW RTSP VIDEO VIA VLC Default RTSP main streaming address: rtsp://192.168.1.188/stream/main Default RTSP sub streaming address: rtsp://192.168.1.188/stream/sub Default RTMP main streaming address: rtmp://192.168.1.188:1935/app/rtmpstream0 Default RTMP sub streaming address: rtmp://192.168.1.188:1935/app/rtmpstream1 1, Run VLC Media Player. 2, Media->network stream, to enter into “open media” interface. 3, Input RTSP address in URL as following: 4, Click play to view the real time image.

  • Page 32: Visca Over Ip

    VISCA over IP means VISCA protocol transmit via IP, to reduce RS232/RS485 cable layout (the controller must support IP communication function) Communication port spec: ⚫ Control port: RJ45 Gigabit LAN ⚫ IP protocol: IPv4 ⚫ Transmit protocol: UDP ⚫ IP address: set via web end or OSD menu ⚫...
  • Page 33 Payload type: Data definition as following: Name Value (Byte 0) Value (Byte 1) Value (Byte) VISCA command 0x01 0x00 Stores the VISCA command. VISCA inquiry 0x01 0x10 Stores the VISCA inquiry. Stores the reply for the VISCA command and VISCA VISCA reply 0x01 0x11...
  • Page 34 The value that was set as the sequence number is ignored. ERROR 0x0Fyy yy=01:Abnormality in the sequence number. yy=02:Abnormality in the message(message type). ⚫ Controlled reply The following data is saved in return command payload of control command. Message Value Description 0x01 Reply for RESET.
  • Page 35 Sequence chart when command lost Sequence chart when returned message lost Note: Do not set IP address, sub net mask, gateway parameter in VISCA over IP command, otherwise, it will cause network breaks off. Due to change these parameter, network will be in off status.
