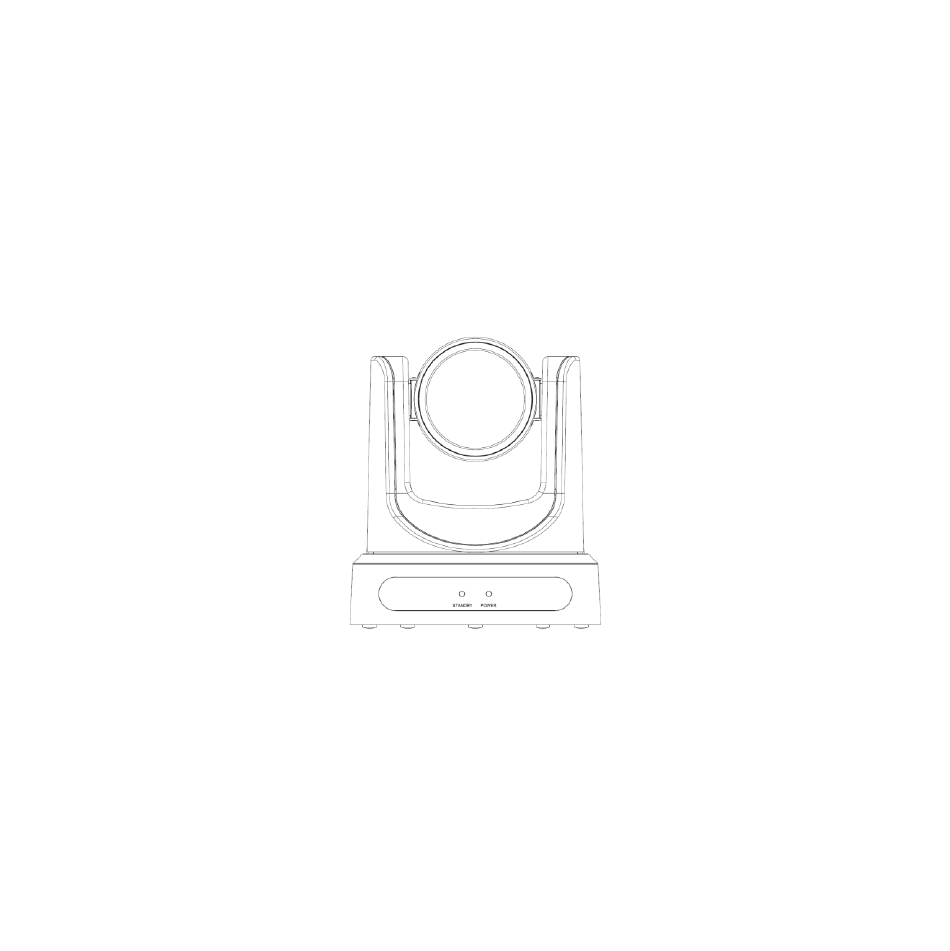

CleverMic 1212UHN
PTZ - camera
User Manual
V1.2
(English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1212UHN and is the answer not in the manual?

Questions and answers

Related Manuals for CleverMic 1212UHN

Summary of Contents for CleverMic 1212UHN

  • Page 1 CleverMic 1212UHN PTZ - camera User Manual V1.2 (English)
  • Page 2 Preface Thanks for using this CleverMic 1212UHN PTZ - camera. This manual introduces the function, installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product can only be used in the specified conditions in order to avoid any damage to the camera: ...

  • Page 3: Table Of Contents

    Contents Note .................................... 3 Supplied Accessories ..............................4 Quick Start ................................. 5 Features ..................................7 Product Specification ..............................8 Main Unit ................................. 11 Size................................... 12 IR Remote Controller Explanation .......................... 13 USE IR Remote Controller ............................16 RS-232 Interface ..............................19 VISCA Network Configuration ..........................

  • Page 4: Note

    Note  Electric Safety Installation and operation must accord with electric safety standard.  Caution to transport Avoid stress, vibration and soakage in transport, storage and installation.  Polarity of power supply The power supply of the product is +12V, the max electrical current is 2A .Polarity of the power supply plug drawing as follows.

  • Page 5: Supplied Accessories

    Supplied Accessories When you unpack, check that all the supplied accessories are included: Camera ........1PCS AC power adaptor ..... 1PCS Power cord ........1PCS RS232 cable ........ 1PCS Remote controller ......1PCS User manual ......1PCS USB3.0 ........1PCS...

  • Page 6: Quick Start

    Quick Start Step1. Please check connections are correct before starting...
  • Page 7 Step2. Setting of the system select switch The option of video format: VIDEO SYSTEM 1080p60 720p30 1080p50 720p25 1080i60 1080i50 720p60 720p50 576i 1080p30 480i 1080p25 CAUTION: a. After changing the switch, you need to restart the camera to take effect. b.

  • Page 8: Features

    Features  72.5° Wide-angle Lens + 32x Digital Zoom Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 32x digital zoom (optional)  USB3.0 Support USB3.0 ultra-high speed interface, can transfer uncompressed original video, and downward compatible with USB2.0. USB3.0, HDMI, Network can output at the same time. It also support CVBS interface ...

  • Page 9: Product Specification

    Product Specification Model USB3.0 Type HD Color Video Camera Name Camera HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, Video System 720p/25 SD: 480i, 576i Sensor 1/2.7", CMOS, Effective Pixel: 2.07M Scanning Mode Progressive Lens 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 Digital Zoom 32x (optional) Minimal Illumination...
  • Page 10 Local Storage Support Number of Preset Preset Accuracy 0.1° USB 3.0 Featured Oprate System Windows XP, Windows Vista, Windows 7,Windows 8,Mac OS X, Linux Color System YUV 4:2:2 USB3.0 : 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 Video format USB2.0 : 960x540p/30, 960x540p/25, 640x360p/60, 640x360p/50,1280x720p/25 USB video communication UVC1.0...
  • Page 11 1xUSB3.0: Type B female jack 1xUSB2.0: Type A female jack 1xRS-232: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1xRS-232 OUT: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only Control Input/Output 1xRS-485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P Power Connector JEITA type (DC IN 12V) Generic Specification...

  • Page 12: Main Unit

    Main Unit 1. Line in Interface 7. POWER switch 2. CVBS Interface 8. DC IN 12V jack 3. System select switch 9. HDMI interface 4. RS485 Interface 10. USB2.0 5. RS232 IN Interface 11. USB3.0 6. RS232 out Interface 12. Rj45 interface...

  • Page 13: Size

    Size...

  • Page 14: Ir Remote Controller Explanation

    IR Remote Controller Explanation 0. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. (Note: Power consumption in standby mode is approximately half of the normal mode) 1. Position Buttons To set preset or call preset 2.
  • Page 15 become dark. In this case, press the backlight ON / OFF button. To cancel this function, press the backlight ON / OFF button. 5. Focus Buttons Used for focus adjustment. Press [AUTO] adjust the focuses on the center of the object automatically. To adjust the focus manually, press the [MANUAL] button, and adjust it with [Focus＋] (Focus on far object) and [Focus－] (Focus on near object) 6.
  • Page 16 12. Image freezing function Manually freeze: Open the freezing function after press the remote control [F4], display "Freeze" on the left upper corner character, after 5 seconds display disappear automatically. If you want to cancel the freeze, press [F4] key and then can return to normal, display "Unfreeze" on the left upper corner, after 5 seconds display disappear automatically.

  • Page 17: Use Ir Remote Controller

    USE IR Remote Controller When the camera is working, you can use remote Move up: Press [ ] controller to perform panning, tilting, zooming and Move down: Press [ ] focusing, store and call back preset positions. Move left: Press [ ] Button Instruction：...
  • Page 18 3. Focus Control effective in full auto exposure mode) 5. Presets Set/Clear Focus Far: Press [FOCUS+] button (NOTE: Effective only in manual focus mode) Focus Near: Press [FOCUS-] button (NOTE: Effective only in manual focus mode) Press and hold the button, the action of focus continues and stops as soon as the button is released.
  • Page 19 6. Recalling the Preset 8. Camera IR Address Set [*]+[＃]+[F1]: Address1 [*]+[＃]+[F2]: Address2 [*]+[＃]+[F3]: Address3 [*]+[＃]+[F4]: Address4 9. Shortcut Set [*]+[＃]+[1]: OSD menu default English [*]+[＃]+[3]: OSD menu default Chinese Press any of the numeric buttons 0-9 directly to [*]+[＃]+[4]: Default IP address recall stored preset positions and settings.

  • Page 20: Rs-232 Interface

    RS-232 Interface Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.NC IR OUT 8.NC...

  • Page 21: Visca Network Configuration

    VISCA Network Configuration...

  • Page 22: Serial Communication Control

    Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with RS232C serial interface.  RS232 Communication Control The camera can be controlled via RS232 ,the parameters of RS232C are as follows: Baud rate: 2400/4800/9600 bit/s. Start bit: 1 bit.

  • Page 23: Visca Command List

    VISCA Command List (Ignore) Note: The camera serial standard VISCA/Pelco-D/Pelco-P, if the need for the secondary development, According to standard protocol to control the camera. If you need VISCA/Pelco - D/Pelco - P protocol command list in detail, please contact the manufacturer.

  • Page 24: Menu Setting

    Menu Setting 1. MENU EXPOSURE Press [MENU] button to display the main menu Mode Auto on the normal screen, using arrow button to move ExpCompMode the cursor to the item to be set. Press the [HOME] Backlight button to enter the corresponding sub-menu. Gain Limit Anti-Flicker 50Hz...
  • Page 25 Backlight: Set the backlight compensation, COLOR Optional items: On, Off (Effective only in Auto WB Mode Auto mode ) Saturation DRC: DRC strength, Optional items: 0 ~ 8. Bright: Intensity control, Optional items: 00~17. AWB sens (Effective only in Bright mode) Anti-Flicker Flicker: Anti-flicker.
  • Page 26 4. IMAGE On, Off Move the cursor to the Image item in the main B&W-Mode: Image color. Optional items: On, menu and press [home] button, IMAGE menu appears, as shown in the following figure. Gamma: Optional items: Default, 0.45, 0.5, 0.56, 0.63 IMAGE Style: Optional items: Norm, Clarity, Bright, Soft.
  • Page 27 AF-Sense: Automatic focusing sensitivity NR3D-Level: 3D noise reduction. Optional items: options, Optional items: Low, Normal, High Off, 1 ~ 8 L/R Set: Optional items: STD, REV D-HotPixel: Dynamic bad points, Optional items: Image Freeze:Optional items:On, Off Off, 1 ~ 5 7.
  • Page 28 AUTO, VISCA, PELCO-D, PELCO-P RESTORE DEFAULT V_Address: Protocol address, To be decided Restore? according to the agreement, AUTO, VISCA protocol Optional items: 1 ~ 7 P_D_Address: PELCO-D protocol Optional items: 0 ~ 254 P_P_Address: PELCO-P protocol Optional items: 0 ~ 31 V_AddrFix: If I can change through the serial port Change Value of infrared switch, Optional items: On, Off（When...

  • Page 29: Internet Function

    Internet function 1 Operating Environment Picture 1.2 Connect by router /interchanger Operating System: Windows 2000/2003/XP/ vista/7/8 4 IP camera visited/ controlled by Network Protocol: TCP/IP Client PC: P4/128MRAM/40GHD/ support scaled graphics card, support DirectX8.0 or more advanced 4.1 Setup IP address version.
  • Page 30 NOTE! IP camera default IP address"192.168.100.88", user "admin", password "admin". 4.2 Visit/Access IP Camera Input http://192.168.100.88 to IE ( better With IE web browser, others will cause little latency),a login Method 2: Open “upgrade_En.exe”, change IP window pop up, input login name: admin, password: and click “Set”.
  • Page 31 5 IP Camera accessed/controlled by WAN (internet) 5.1 Setup IPC accessed/controlled by dynamic 2 dynamic DNS available: Dyndns.org, 3322.org Router Port Mapping: After login, shown as below: Take TP-LINK router for example, enter Router Home Page (interface page),select “Transit control”- "Transit rule"--"Virtual server"--...
  • Page 32 5.2 Dynamic DNS visit camera Set domain name to camera, setup the parameter, then dynamic DNS can access camera.Access link: http://hostname :port numberFor example, setup host computer name: youdomain.f3322.org, camera port number: 554,Access link should http://youdomain.3322.org:554. Input URL address: NOTE！ rtsp://ip: port number/1 (Main stream);...
  • Page 33 1) Video playback pause button: control real-time video pause, stop the last picture, click recoverable video again. 2) Audio control buttons: can set slient mode. 3) Full screen switch button. B. PTZ Setup 6 IP Camera parameter setup 6.1 Homepage introduction Menu All pages include 2 menu bars: Real time monitoring: displaying video image...
  • Page 34 2) Rate: Vertical speed can be chosen as 1 ~ 24, horizontal direction at the rate of 1 ~ 20. 3) select corresponding speed and click direction button to realize PTZ speed up or speed down. 4) Zoom In/Zoom out: for zooming in or zooming out, Focus In/ Focus Out: Focusing on distant objects or Focusing on close objects.
  • Page 35 3) Encode Protocot interval is, the response will be lower from viewing Support H.264 and H.265 two formats. window. 4) Encode Level 9) Bit Rate control Support baseline, mainprofile, highprofile Code stream control way: three formats. Constant bit rate: video coder will be coding 5) Resolution according to preset speed Main bit flow support 1920x1080, 1280x720,...
  • Page 36 6.3 Image Setup, please click “Image” Sharpness0~15, slider control, on the right shows the corresponding numerical. Default 1. 5) Hue Hue 0~14, slider control, on the right shows the corresponding numerical. Default 7. 6) Flip & Mirror Tick Flip to realize image upside down, tick mirror to realize image around the mirror.
  • Page 37 1) Audio Type Audio type AAC 2) Sample rate Sample rate 44.1 K and 48 K, selectable. 3) Bit rate Bit rate 96k,128k,256k, selectable 4) Input Type line in only 5) Input VolL The volume of the left channel 6) Input VolR The volume of the right channel 7) ADTS Options Optional items:On, Off...
  • Page 38 the login page, press "cancel" button to cancel port and port. Port setting is to set up WEB password change. SERVER program using which port to transmit. When port mapping, need to be consistent with the 6.6 Network Setting, please click “Network” port number(default port: 80) B.
  • Page 39 Note: 6688) Software version may not be the latest version of 8) Apply / Cancel the current, please release version shall prevail. Modify network parameters then press "Apply" button to modify network parameters, press 7 Download the Network upgrade "Cancel" button to cancel network parameters. program 6.7 Device Information, please click “information”...

  • Page 40: Usb3.0

    USB3.0 Camera support UVC protocol, compatible USB2.0 & USB3.0. USB3.0 support 1920x1080p/60 max output. USB2.0 support 960x540p/60 max output. Support OS Windows XP/2003/VISTA/7/8 and other system、Linux、Mac OS General software Windows: AMCAP, VLC, Debut Video Capture, etc. Linux:V412 software driver and VLC media player, etc. Mac OS: FaceTime.

  • Page 41: Maintenance And Troubleshooting

    Maintenance and Troubleshooting Camera Maintains  If camera will not be used for a long time, please turn off the power switch, disconnect AC power cord of AC adaptor to the outlet.  Use soft cloth or tissue to clean the camera cover. ...
  • Page 42 When IPC first time accessed by Internet Explore (IE or other web browser),must install plug-in. User first time use this camera by internet (only for new user), must install a player software (VLC). and Install VLC (player software). Please go to VLC webside http://www.videolan.org/vlc,download After installation,login again, will show image, the video image is displayed.
  • Page 43 Copyright Notice All contents of this manual, whose copyright belongs to our Corporation. Cannot be cloned, copied or translated without the permission of the company.Product specifications and information which were referred to in this document are for reference only, and the content will be updated at any time without prior notice 2015/10...
