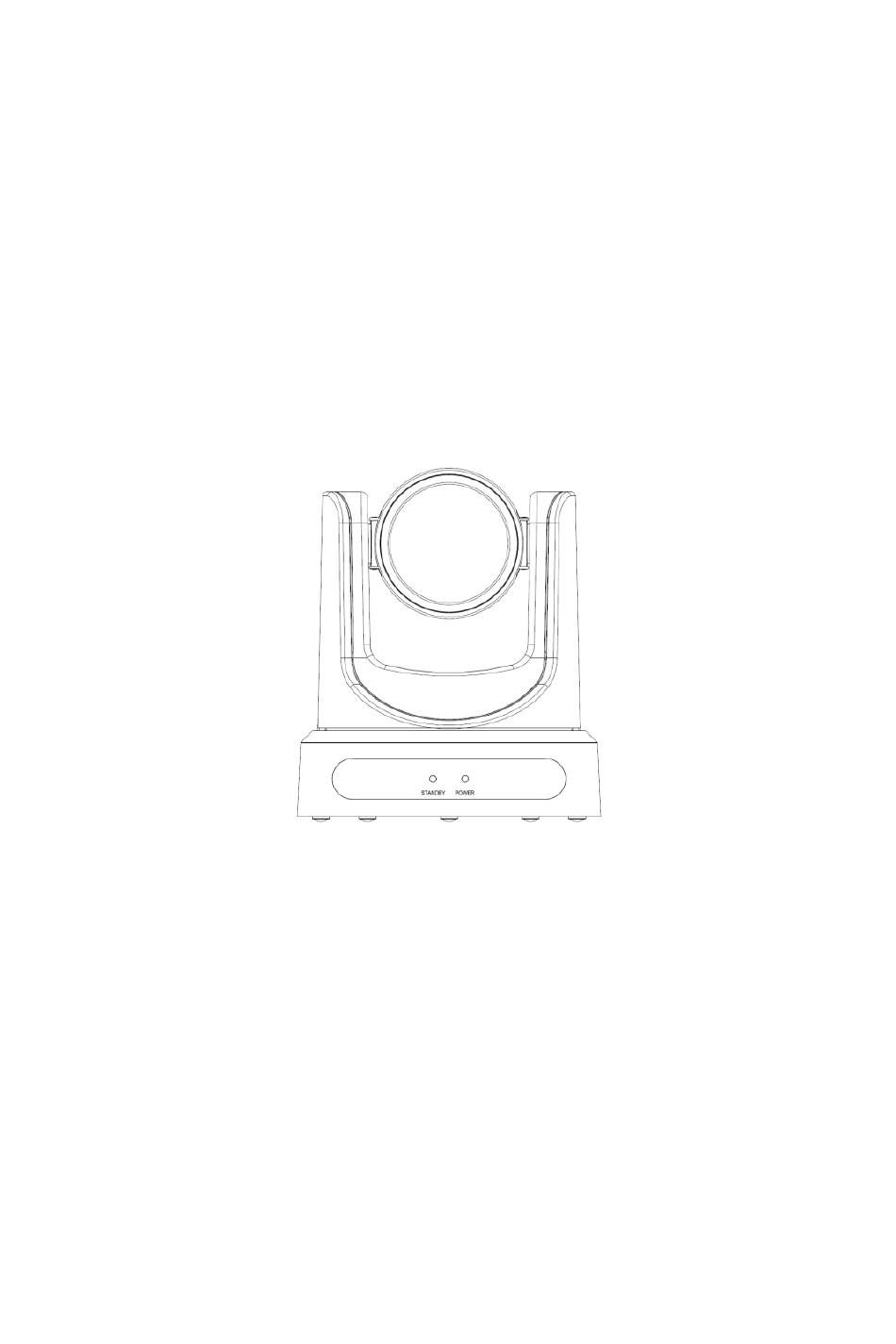

  • Page 1 CleverMic 1212SHN PTZ - camera User Manual V2.1 (English)
  • Page 2 Preface Thanks for using CleverMic 1212SHN PTZ-camera. This manual introduces the function, installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product can only be used in the specified conditions in order to avoid any damage to the camera: ...

  • Page 3: Table Of Contents

    Contents Note ................................. 3 Supplied Accessories ..........................3 Quick Start ............................... 4 Features ..............................6 Product Specification ..........................7 Main Unit ..............................9 Size ................................ 10 IR Remote Controller Explanation......................11 RS-232 Interface ............................ 13 VISCA Network Configuration ......................14 Serial Communication Control ......................

  • Page 4: Note

    Note  Electric Safety Installation and operation must accord with electric safety standard.  Caution to transport Avoid stress, vibration and soakage in transport, storage and installation.  Polarity of power supply The power supply of the product is +12V, the max electrical current is 2A .Polarity of the power supply plug drawing as follows.

  • Page 5: Quick Start

    Quick Start Step1. Please check connections are correct before starting Step2. Setting of the system select switch The option of video format: VIDEO SYSTEM 1080p60 720p30 1080p50 720p25 1080i60 1080i50 720p60 720p50 576i 1080p30 480i 1080p25...
  • Page 6 CAUTION: a. After changing the switch, you need to restart the camera to take effect. b. 720 p30 and 720 p25 only under the HDMI output. Step3. Press the Switch ON/OFF button on the rear of the camera, the power lamp light. Step4.

  • Page 7: Features

    Features  72.5 Wide-angle Lens + 32x Digital Zoom Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 32x digital zoom (optional).  H.265 Support The first H.265 encoding support conference video camera in the world, enabling full HD 1080p/60fps video stream by ultra-low bandwith.

  • Page 8: Product Specification

    Product Specification Camera HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p30,720p25,720p/120 (Supported by S Model Video System only),640x480p/240 (Supported by S Model only, optional) SD: NTSC, PAL Sensor 1/2.7 inch, CMOS, Effective Pixel: 2.07M Scanning Mode Progressive Lens 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 Digital Zoom 16x (optional)
  • Page 9 Video coding standard H.265/H.264/MJEPG Video Stream First Stream, Second Stream First Stream resolution 1920x1080, 1280x720, 1024x576,960x540,640x480, 640x360 50HZ：1280x720, 1024x576, 720x576, 720x408, 640x360, 480x270, 320x240 Second Stream resolution 60HZ：1280x720, 1024x576, 720x480, 720x408, 640x360, 480x270, 320x240 Video Bit Rate 128Kbps ~ 8192Kbps Bit Rate Type Variable rate, Fixed rate 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps, 720p120: 120fp(supported...

  • Page 10: Main Unit

    Input Voltage DC 12V / PoE (802.3af) (optional) Current Consumption 1.0A (Max) Operating Temperature -10°C ~ 40°C (14°F ~ 104°F) Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F) Power Consumption 12W (Max) MTBF >30000h Size 169mm x 142mm x 164mm Net Weight 1.35Kg (3.0lb) Main Unit...

  • Page 11: Size

    Size...

  • Page 12: Ir Remote Controller Explanation

    IR Remote Controller Explanation 1. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. (Note: Power consumption in standby mode is approximately half of the normal mode) 2. Position Buttons To set preset or call preset 3.
  • Page 13 the backlight compensation.(NOTE: Effective 9. Focus Buttons Used for focus adjustment. only in auto exposure mode) Press [AUTO] adjust the focuses on the center of Note: If a light behind the subject, the subject will the object automatically. To adjust the focus become dark.

  • Page 14: Rs-232 Interface

    RS-232 Interface Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.NC 8.NC 8.NC...

  • Page 15: Visca Network Configuration

    VISCA Network Configuration...

  • Page 16: Serial Communication Control

    Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with RS232C serial interface.  RS232 Communication Control: The camera can be controlled via RS232 ,the parameters of RS232C are as follows: Baud rate: 2400/4800/9600 bit/s. Start bit: 1 bit.

  • Page 17: Menu Setting

    Menu Setting EXPOSURE 1.MENU Mode Auto Press [MENU] button to display the main ExpCompMode menu on the normal screen, using arrow button to move the cursor to the item to be set. Press the Backlight [HOME] button to enter the corresponding Gain Limit sub-menu.
  • Page 18 Bright: Intensity control, Optional items: COLOR 00~17. (Effective only in Bright mode) WB Mode Auto Anti-Flicker Flicker: Anti-flicker. Optional items: Off, 50Hz, 60Hz (Effective only in Auto, RG Tuning Bright mode) BG Tuning Iris: Aperture value. Optional items: F1.8, Saturation 100% F2.0,F2.4,F2.8,F3.4,F4.0,F4.8,F5.6,F6.8,F8.0,F9.6 ,F11.0,Close （...
  • Page 19 items: On, Off. AWBsens:The white balance sensitivity, Flip-V: Image Flip Vertical. Optional items: Optional items: Normal, High, Low. On, Off. B&W-Mode: Image color. Optional items: On, Off. 4. IMAGE Move the cursor to the Image item in the Gamma: Optional items: Default, 0.45, 0.5, main menu and press [home] button, IMAGE 0.56, 0.63.
  • Page 20 L/R Set: Optional items: STD, REV 7. SETUP Image Freeze: Optional items: On, Off Move the cursor to the Setup item in the main Display Info: Optional items: On, Off menu and press [home] button, SETUP menu appears, as shown in the following figure. 6.
  • Page 21 9.RESTORE DEFAULT COMMUNICATION SETUP Move the cursor to the Restore Default item Protocol VISCA in the main menu and press [home] button, V_Address RESTORE DEFAULT menu appears, as shown in the following figure. V_AddrFix Net Mode Serial RESTORE DEFAULT Baudrate 9600 Restore? Select Item...

  • Page 22: Networkfunction

    NetworkFunction Method 1: press * and # and 4 on remote controller one by one, the camera IP address will 1 Operating Environment Operating System: Windows 2000/2003/XP/ be shown on screen. Method 2: connect camera to PC with vista/7/8 ethernet cable, use "upgrade_En.exe" to search for Network Protocol: TCP/IP IP address Client PC: P4/128MRAM/40GHD/ support...
  • Page 23 NOTE！ NOTE! If user first time use this camera by internet IP camera default IP address"192.168.100. (only for new user),must install a player software 88",user "admin", password "admin". (VLC). Please 4.2 Visit/Access IP Camera websidehttp://www.videolan.org/vlc,download Install Input http://192.168.100.88 to IE ( better (player software).After with IE web browser, others will cause little...
  • Page 24 Input URL address: 5.2 Dynamic DNS visit camera rtsp://ip: port number/1 (First stream); Set domain name to camera, setup the rtsp://ip: port number/2 (Second stream). parameter, then dynamic DNS can access camera. NOTE！ Access link: http://hostname :port number For example, setup host computer...
  • Page 25 image Parameter setup: with function buttons left, right, home oblique button as above 2) Rate: Vertical speed can be chosen as A. Video viewing window Video viewing window must be same as 1 ~ 24, horizontal direction at the rate of 1 ~ 20. video resolution, the bigger the resolution is, the 3) select corresponding speed and click direction button to realize PTZ speed up or speed...
  • Page 26 First stream support 1920x1080,1280x720, 1024x576,960x540,640x480,640x360, second Chinese/English/Russian stream support 50Hz:1280x720,1024x576, 6.2 Media 720x576,720x408,640x360,480x270,320x240,60 Video Setup, please click "Video" Hz:1280x720,1024x576,720x480,720x408,640x3 60,480x270,320x240,the bigger resolution is, the clearer the image will be, more network bandwidth will be taken. 5) Bit Rate User can assign bit flow/stream, normally speaking, the bigger bit flow is, the clearer the image will be.
  • Page 27 quality. the corresponding numerical. Default 7. 9) Fluctuate level 6) Flip & Mirror Restrain the fluctuation magnitude of Tick Flip to realize image upside down, tick variable rate, grade 1 ~ 6 mirror to realize image around the mirror. Default 6.3 Image Setup, please click "Image"...
  • Page 28 7) ADTS Options 6.6 Network Setting, please click "Network" Optional items: On, Off 8) Button Press "apply" button to save parameters, press "cancel" button to cancel parameter 6.5 System Setting, please click "System" 1) Lan Settings Default the IP address is 192.168.100.88, The MAC address can be modified.
  • Page 29 protocol, include Visca address, Pelco-D address, please contact the manufacturer. Pelco-P address. 4) RTMP Setting Setting the camera stream, can set up two stream, in the two stream selection control code stream of "On","Off", "Video", "Audio", etc. 5) RTSP Setting Setting network camera rtsp protocol of "On", "Off".

  • Page 30: Maintenance And Troubleshooting

    Maintenance and Troubleshooting Camera Maintains  If camera will not be used for a long time, please turn off the power switch, disconnect AC power cord of AC adaptor to the outlet.  Use soft cloth or tissue to clean the camera cover. ...
  • Page 31 2. Disconnect IP Camera with network, IP Camera and PC are connected, according to the proper operations to re-set the IP address. 3. Check the server's IP address and subnet mask and gateway address. 4. MAC addresses conflict. 5. Web port is occupied by other devices. ...
