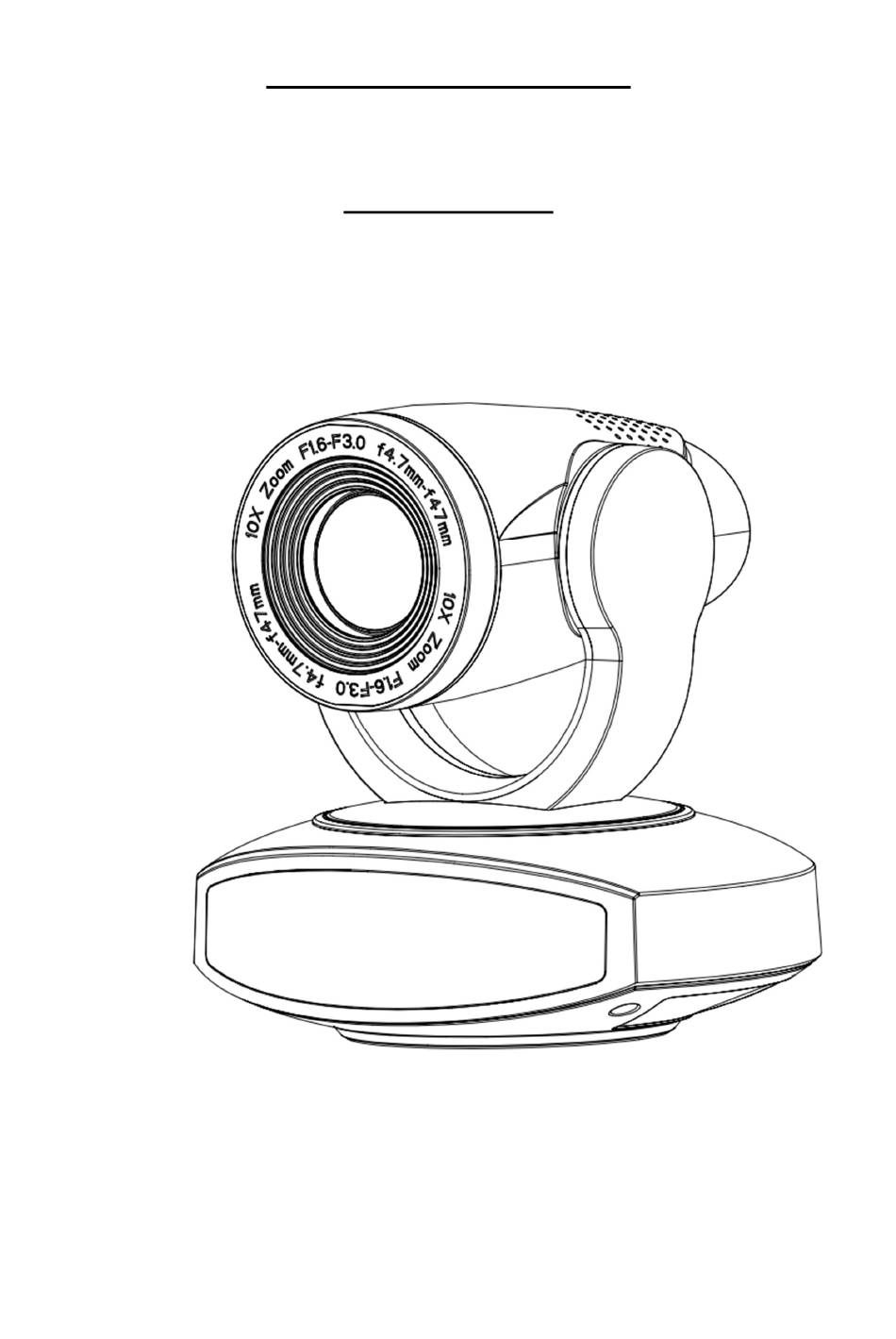

  • Page 1 CleverMic PTZ Camera User Manual...
  • Page 2 Attentions This manual details functions, installation, operation principles and methods of teacher tracking camera. Please read this manual carefully before installation and use. 1．How to use In order to prevent this product or products connected to it from being damaged, please use it within its prescribed scope of use. 1)Keep the device from rain or moisture;...

  • Page 3: Table Of Contents

    Do not install the product obliquely, otherwise it may display inclined image; 3)When installing the camera on TV or personal computer, use four double faced adhesive pads at the bottom for fixing; 4)This product shell is made of organic materials. Do not expose it to any liquid, gas or solids which may corrode the shell.
  • Page 4 2.2.1 CAMERA PERFORMANCE....................8 2.2.2 NETWORK PERFORMANCE....................8 2.3 TECHNICAL SPECIFICATION......................8 2.4 INTERFACE INSTRUCTION......................10 2.4.1 EXTERNAL INTERFACE......................10 2.4.2 BOTTOM DIAL SWITCH....................10 2.4.3 RS-232 INTERFACE......................12 3. APPLICATION INSTRUCTION........................13 3.1 VIDEO OUTPUT...........................13 3.1.1 POWER-ON INITIAL CONFIGURATION................13 3.1.2 VIDEO OUTPUT........................13 3.2 REMOTE CONTROLLER.......................14 3.2.1 KEYS INTRODUCTION......................15 3.2.2 APPLICATIONS.........................15 3.3 MENU SETTING..........................16 3.3.1 MAIN MENU........................16...
  • Page 5 4.2.6 NETWORK CONFIGURATION..................28 4.2.7 SYSTEM CONFIGURATION.....................28 4.2.8 LOGOUT........................29 4.2.9 WIRELESS NETWORK....................29 5. SERIAL COMMUNICATION CONTROL....................30 5.1 VISCA PROTOCOL LIST......................30 5.1.1 CAMERA RETURN COMMAND..................30 5.1.2 CAMERA CONTROL COMMAND..................30 5.1.3 INQUIRY COMMAND.....................33 5.2 PELCO-D PROTOCOL COMMAND LIST..................34 5.3 PELCO-P PROTOCOL COMMAND LIST..................35 6.

  • Page 6: Fast Installation

    1. Fast Installation 1.1 Camera Interface Explanation Photo 1.1 Interface of SDI Model Interface of SDI Model： 1、Camera Lens 4、Locating Hole 7、SDI Interface 2、Remote Controller Receiver 5、RS232 Control Interface (input ) 8、A-IN Interface Light 3、Tripod Screw Hole 6、LAN Interface 9、DC12V Input Power Supply Socket Photo 1.2 Interface of HDMI Model Interface of HDMI Model：...
  • Page 7 1、Camera Lens 4、Locating Hole 7、SDI Interface 5、RS232 Control Interface (input ) 8、A-IN Interface 2、Remote Controller Receiver Light 3、Tripod Screw Hole 6、LAN Interface 9、DC12V Input Power Supply Socket Photo 1.3 Interface of U3+HDMI Model Interface of U3+HDMI Model： 1、Camera Lens 4、Locating Hole 7、HDMI Interface 2、...

  • Page 8: Power-On Initial Configuration

    Interface of U2 Model： 1、Camera Lens 4、Locating Hole 7、USB2.0 Interface 2 、 Remote Controller Receiver 5、RS232 Control Interface (input ) 8、 DC12V Input Power Supply Socket Light 3、Tripod Screw Hole 6、LAN Interface Photo 1.6 Interface of U3 Model Interface of U3 Model： 1、Camera Lens 4、Locating Hole 7、USB3.0 Interface...

  • Page 9: Video Output

    head moves from bottom left to the bottom, and then goes to the HOME position (intermediate position of both horizontal and vertical ),while the camera module stretches. When remote control receiver light stops blinking, the self-checking is finished. Note: 1. The default address of the remote controller is the 1# address. 2.
  • Page 10 b. Connect the camera and the monitor via USB3.0 video cable, open video display software, select image device, and then video output will be available. 5) USB3.0 compatible with USB2.0 output a. USB3.0 video cable connection: U3+HDMI models refer to NO.7 in Figure1. 3; U3 models refer to NO.7 in figure1.6.
  • Page 11 2. Upside down mount step...

  • Page 13: Product Overview

    2. Product overview 2.1 Product Introduction 2.1.1 Product Model There are four main series according to different video formats, lens optical zooms, output interfaces and remote control modes. Model NO.X—XXX—XXX—XX IR ---IR Remote Controller WR---Wireless Remote Controller SDI---SDI Interface HDMI---HDMI Interface U3+HDMI---USB 3.0 and HDMI Interface U2---U2 Interface U3---USB3.0 Interface...

  • Page 14: Dimension

    2.1.2 Dimension Figure 2.2 Camera dimension 2.1.3 Accessory When you unpack, check that all the supplied accessories are included: Config U3+HDMI SDI Series HDMI Series U3 Series U2 Series uration Series Power adapter Power adapter 1 Power adapter Power adapter...

  • Page 15: Main Features

    piece piece piece User manual 1 User manual 1 User manual 1 User manual 1 User manual 1 Double-side Double-side glue Double-side Double-side Double-side glue shim shim glue shim glue shim glue shim Warranty card 1 Warranty card 1 Warranty card 1 Warranty card Warranty card piece...

  • Page 16: Technical Specification

    smoothly and very quickly to designated position. 6.Multi-Format Video Outputs: support HDMI、SDI、USB2.0、USB3.0、LAN interfaces H.265/H.264 7. Multiple Video compression: Support video compression 8. Audio Input Interface Support 16000,32000,44100,48000 sampling frequency and AAC,MP3,G.711A audio coding. 9. Multiple Network Protocol Support ONVIF,RTSP,RTMP protocols and support RTMP push mode,easy to link streaming media server (Wowza,FMS) 10.
  • Page 17 1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97 Format U3 interface video format 1)U3:1920X1080P60/50/30/25;1280X720P60/50/30/25;960X540P30;640X360P30;640 X480P30;352X288P30;960X540P30; 2)U3 compatible with U2: 960X540P30; 640X360P30; 1280X720P10/15; 720X576P50; 720X480P60; 640X480P30; 352X288P30. U2 interface video format 176x144/320x240/320x180/352x288/640x480/720x576/640x360/800X600/960X540/1 024X576/1024X768/1600X896/1920X1080/1280X720；P30/25/20/15/10/5 View Angle 16.43°(tele)--83.7°(wide) 6.43°(tele)--64.2°(wide) Digital Zoom Minimum 0.5Lux (F1.8,AGC ON) Illumination 2D & 3D DNR Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K White Balance...
  • Page 18 Stream Image Output Dual Code Source output (SDI/HDMI/USB3.0/USB2.0、LAN ) Multiple Code Source Video Compression H.264,H.265 Format Control VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps Protocol Audio Input Double track 3.5mm linear input; Interface Audio HDMI HDBaseT 、LAN output together with video 、 、 Output Audio Compression...
  • Page 19 Consumptio 12W (Max) PTZ Parameter Pan Rotation ±135° Tilt Rotation -30°～+30° Pan Control 0.1 -60°/sec Speed Tilt Control 0.1-30°/sec Speed Preset Speed Pan: 60°/sec,Tilt: 30°/sec Preset 255 presets (10 presets by remote controller) Number Other Parameter Store -10  ～+60  Temperature Store 20% - 95% Humidity...

  • Page 20: Interface Instruction

    2.4 Interface Instruction 2.4.1 External Interface External interface of SDI models: RS232 Input /Output, Input, Audio Input, SDI Output, LAN, DC12V Power Interface. Figure 2.3 SDI model external interface diagram External interface of HDMI model: Audio Input, HDMI Output, LAN, DC12V Power Interface.
  • Page 21 Figure 2.4 HDMI model external interface diagram External interface of USB3.0+HDMI model: HDMI Output, USB3.0Output,LAN, DC12V Power Interface.
  • Page 22 Figure 2.5 USB3.0+HDMI model external interface diagram External interface of USB2.0 model: USB2.0 Output,LAN, DC12V Power Interface. Figure 2.6 USB2.0 model external interface diagram External interface of USB3.0 model: USB3.0 Output,LAN, DC12V Power Interface.
  • Page 23 Figure 2.7 USB3.0 model external interface diagram...

  • Page 24: Rs-232 Interface

    2.4.3 RS-232 Interface 1) RS-232C interface specification as shown below Computer or keyboard and camera connection method WindowsDB-9 Camera 1.DTR 1.DCD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI 2) RS-232 Mini-DIN 8-pin Port Definition...
  • Page 25 Port Definition Data Terminal Ready Data Set Ready Transmit Data System Ground Receive Data System Ground IR Commander Signal IR OUT No Connection 3) RS232 (DB9) Port Definition Definition Port Data Carrier Detect Receive Data Transmit Data Data Terminal Ready System Ground Data Set Ready Request to Send...
  • Page 26 4) VISCA networking as shown below: Camera cascade connection method Camera 1 Camera 2 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.OPEN 8. NC 8.OPEN...

  • Page 27: Application Instruction

    3. Application Instruction 3.1 Video Output 3.1.1 Power-On Initial Configuration Connecting the power, camera will have initial configuration, R indicator light will be flashing. When the camera return to the HOME position (middle position for P/T),and lens finish zoom in/out, the auto-testing is finished. IR led will also stop flashing.

  • Page 28: Remote Controller

    3.2 Remote Controller 3.2.1 Keys Instruction 1. Standby Key After 3S long press, the camera will step into standby mode. Long press 3S again, the camera will self-test again and back to HOME position. (Note: If power-on mode is turned on and Preset 0 is set, and there is no operation within 12s, it will automatically point to the specified preset position.

  • Page 29: Applications

    9. BLC Control Key Back Light ON / OFF: Turn on or off the back light 10. Menu Setting Open or close the OSD menu Enter / exit the OSD menu or return to the previous menu. 11. Camera IR Remote Control Address Setting 【*】+【＃】+【F1】:Camera Address No.1 【*】+【＃】+【F2】:Camera Address No.
  • Page 30 Select the camera address to control. 2) Pan/Tilt Control press Down: press Left: press Right: press Back to middle position: press“【HOME】” Press and hold the up/down/left/right key, the pan/tilt will keep running, from slow to fast, until it runs to the endpoint; the pan/tilt running stops as soon as the key is released.
  • Page 31 BLC ON / OFF: support 6) Presets Setting, Running, Clearing 1. Preset setting: to set a preset position, the users should press the “【SET PRESET】” key first and then press the number key 0-9 to set a relative preset, Note: 10 preset positions in total are available by remote controller.

  • Page 32: Menu Setting

    3.3 MENU SETTING 3.3.1 Main Menu In normal working mode, press 【MENU】key to display the menu, using scroll arrow to point at or highlight the selected items. MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Language English (Setup) (Camera) (P/T/Z) (Video Format) (Version) LANGUAGE: Language setting, Chinese / English SETUP: System setting CAMERA OPTION: Camera setting PTZ OPTION: Pan tilt setting...

  • Page 33: Camera Setting

    SETUP ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Protocol Auto Visca Address Visca Address Fix PELCO-P Address PELCO-D Address PROTOCOL: VISCA/Pelco-P/Pelco-D/Auto Visca ADDR: VISCA=1~7 Pelco-P=1~255 Pelco-D = 1~255 Baud rate: 2400/4800/9600/115200 Visca Address Fix: On/Off 3.3.3 Camera Setting Move the pointer to the (CAMERA) in the Main Menu, click the【HOME】key and enter the (CAMERA) as follow, CAMERA ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
  • Page 34 Image: Enter into image setting Focus: Enter into focus setting Noise Reduction: Enter into noise reduction 1) EXPOSURE SETTING Move the pointer to the (EXPOSURE) in the Main Menu, click the【HOME】and enter the (EXPOSURE SET) as follow, EXPOSURE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Mode Auto Flicker 50Hz...
  • Page 35 2) COLOR SETTING Move the pointer to the (COLOR) in the Main Menu, click the【HOME】and enter the (COLOR SET) as follow, COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ WB Mode Auto RG Tuning BG Tuning Saturation 100% WB Mode:Auto,3000K,3500K,4000K,4500K,5000K,5500K,6000K,6500K,7000KManual,One Push RG Tuning:-10~10(only available in Manual mode) BG Tuning:-10~10(only available in Manual mode) Red Gain: 0~255(only available in Manual mode) Blue Gain: 0~255(only available in Manual mode)
  • Page 36 IMAGE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Brightness Contrast Sharpness Flip-H Flip-V B&W-Mode Color Gamma Default Brightness: 0~14 Contrast: 0~14 Sharpness: 0~15 Flip-H: On/Off Flip-V: On/Off B&W Mode: color, black/white Gamma: default, 0.45, 0.50, 0.55, 0.63 DZoom: digital zoom options: On/Off DCI: Dynamic Contrast: Off,1～8 4) FOCUS Move the pointer to the (FOCUS) in the Menu, click the【HOME】and enter the (FOCUS) as follow, FOCUS...

  • Page 37: P/T/Z

    AF-Sensitivity: High, middle, low 5) NOISE REDUCTION Move the pointer to the (NOISE REDUCTION) in the Menu, click the 【HOME】 and enter the (NOISE REDUCTION) as follow, NOISE REDUCTION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ NR-2D NR-3D Dynamic Hot Pixel 2D Noise Reduction: Auto, close, 1~7 3D Noise Reduction: Close, 1~8 Dynamic Hot Pixel: Close, 1~5 3.3.4 P/T/Z...

  • Page 38: Video Format

    VIDEO FORMAT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ 1080P60 1080P50 1080I60 1080I50 1080P30 1080P25 720P60 720P50 720P30 720P25 1080P59.94 1080I59.94 1080P29.97 720P59.94 Note: 1. S: 1080P60 Downward Compatibility; M: 1080P30 Downward Compatibility 2. Exit menu after modifying parameter to save it after powered off 3.3.6 Version Move the pointer to the (VERSION) in the Main Menu, click the【HOME】and enter the (VERSION) as follow, VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...

  • Page 39: Restore Default

    RESTORE DEFAULT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Restore Default? [↑↓]Select [← →]Change Restore default: options: yes/no; after restoring default, the video format won’t be restored. Note: If the address of former remoter is not 1 but another one from 2,3,4,the corresponding camera address will restore to 1 when all parameters or system parameters are restored. User should change the remoter address to be 1 (press No.1 according to the camera so to get normal operation ) 4.
  • Page 41 Note: The IP address to be added cannot be same with that of other computers or devices. The existence of this IP address needs to be verified before adding. Click the “Start” and select “Operation” to input cmd as picture below to verify if the network segment has been successfully added.

  • Page 42: Ie Log In

    User can also to verify network connection as steps above mentioned after the finish of camera self-check. If IP is default, open DOS command window and input 192.168.5.163,then press Enter key. It will show message as below: which means network connection is normal. 4.2 IE Log In 4.2.1 Web client 1) Web client Log In...

  • Page 43: Preview

    Input the IP address 192.168.5.163 of the device in the address filed of browser and click Enter button to enter into Web Client login page as below picture. User can login as administrator and normal user. If login as administrator (Default User name/Password: admin), users can preview, playback, configuration and cancel in the Web Client;...

  • Page 44: Configuration

    to play the video file. 2) Playback picture files First,please record,snapshot and save the file when previewing.Click "Playback" to enter recording file and picture files playback page ,and then select the file "Image File" and click Search,and search out the video file,click Play to play the image file.

  • Page 45: Video Configuration

    Sampling frequency:Set sampling frequency and the device will reboot automatically after change (default 44100,16000,32000 and 48000 optional) Sampling precision: Set sampling precision (default 16bits) Compressing code rate: Set audio compressing code rate (default 64bits,32,48,96,128bits optional) Audio Channel type: Set channel types (Default mono channel, Stereo audio optional) Input Audio volume: Set the volume of input volume (Default 2, 1~10 optional) Click “SAVE”,it will remind”Enable has changed.
  • Page 46 Host Port: server port number (default 1935,0-65535 optional) Host Address: server IP addresses (default 192.168.5.11) Stream Name: choose a different stream name (live / av0,live / av1 optional). User: Set the user name. Password: Set the password. Click on the "Save" button to display the "Save successful" message,then settings take effect. Method of obtaining RTSP: rtsp: // device IP address: 554 / live / av0 (av0 main stream;...
  • Page 47 Aperture value: Set the aperture value,active when it is status of manual or aperture-priority(default F1.8,closed, F11, F9.6,F8.0,F6.8,F5.6,F4.8,F4.0,F3.4,F2 .8,F2.4,F2.0,F1.8 optional). Brightness: Set the brightness value,active when it is a state of brightness priority (default 7,0-23 optional). c,Color:White balance,saturation,color,white balance,sensitivity,color temperature,gain red and blue gain can be set.

  • Page 48: Network Configuration

    Font Color of Time: Set font color of time and date (default white,black,yellow,red,blue optional). Font Color of Title: Set font color of title (default white,black,yellow,red,blue optional). Moving characters: Set the display position of moving date,time and title ,click on the "up,down,left,right"...
  • Page 49 RTMP Port: Set RTMP port (default 1935,0-65535 optional). RTSP Port: Set RTSP port,the device will restart automatically after changed (default 554,0-65535 optional). Visca Port: Set Visca port,the device will restart automatically after changed (default 3001,0-65535 optional). Click on the "Save" button,it will be valid when display "Save successful". RTSP access: RTSP: / / equipment IP address: 554/live/av0 (av0 main stream;...

  • Page 50: System Configuration

    Local SIP Port: 5060 Range 0-65535 GB28181 Server Address: IP address of the computer Server SIP Port: 5060 Range 0-65535 Server ID: 34020000002000000001 Click on the "Save" button,it will be valid when display "Save successful". 4.2.7 System configuration 1) Device Properties Device Name: Set the device name (the default Camera1,user can add their own).

  • Page 51: Logout

    Click on the "Save" button to display the "Save successfully" message,then the set is to take effect. Note: Please note the case-sensitivity of the user name and password. If login page by a common user’s name and password ,one does not have configuration privileges but can only operate to preview,playback,logoff.

  • Page 52: Serial Communication Control

    Wireless network configuration: Network interface enable: can check,to set the following items after checked. DHCP:can check,if check,it can obtain IP automatically. IP address:set wirelss WIFI IP(default 192.168.1.250,if checked DHCP,IP could assigned automatically) Note:wireless IP address can not be in the same segment with wired IP address. Subnet Mask: Set the wireless IP subnet mask (default255.255.255.0) Default Gateway: Set the wireless IP default gateway (default 192.168.1.1) SSID: The user can modify their own (the default test)

  • Page 53: Visca Protocol List

    5.1 VISCA protocol list 5.1.1 Camera return command Ack/Completion Message Command packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera address + 8 Error Messages Command packet Note Returned when the command format is different or when a...
  • Page 54 Command Function Command packet Note Far(Variable) 8x 01 04 08 2p FF p = 0(low) - F(high) Near (Variable) 8x 01 04 08 3p FF Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position Auto Focus 8x 01 04 38 02 FF Manual Focus 8x 01 04 38 03 FF...
  • Page 55 Command Function Command packet Note Direct 8x 01 04 4B 00 00 0p 0q FF pq: Iris Position CAM_Gain Limit Gain Limit 8x 01 04 2C 0p FF p: Gain Positon Reset 8x 01 04 0D 00 FF 8x 01 04 0D 02 FF Bright Setting CAM_Bright Down...
  • Page 56 Command Function Command packet Note 8x 01 04 66 03 FF P=0-7 CAM_ColorSaturation Direct 8x 01 04 49 00 00 00 0p FF 0:60% 1:70% 2:80% 3:90% 4:100% 5:110% 6:120% 7:130% CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF) 8x 01 04 06 06 02 FF Turn on the menu screen...

  • Page 57: Inquiry Command

    Command Function Command packet Note DownLeft 8x 01 06 01 VV WW 01 02 FF DownRight 8x 01 06 01 VV WW 02 02 FF Stop 8x 01 06 01 VV WW 03 03 FF 8x 01 06 02 VV WW AbsolutePosition 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF 8x 01 06 03 VV WW...
  • Page 58 y0 50 0D FF Bright CAM_ShutterPosInq 8x 09 04 4A FF y0 50 00 00 0p 0q FF pq: Shutter Position CAM_IrisPosInq 8x 09 04 4B FF y0 50 00 00 0p 0q FF pq: Iris Position CAM_Gain LimitInq 8x 09 04 2C FF y0 50 0p FF p: Gain Positon CAM_ BrightPosiInq...

  • Page 59: Pelco-D Protocol Command List

    CAM_BrightnessInq 8x 09 04 A1 FF y0 50 00 00 0p 0q FF pq: Brightness Position CAM_ContrastInq 8x 09 04 A2 FF y0 50 00 00 0p 0q FF pq: Contrast Position y0 50 00 FF y0 50 01 FF Flip-H CAM_FlipInq 8x 09 04 A4 FF...
  • Page 60 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02 Pan Speed Tilt Speed Upleft 0xFF Address 0x00 0x0C Pan Speed Tilt Speed Upright...

  • Page 61: Pelco-P Protocol Command List

    5.3 Pelco-P protocol command list Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right...

  • Page 62: Camera Maintenance And Troubleshooting

    6. Camera Maintenance and Troubleshooting 6.1 Camera Maintenance 1)If camera is not used for long time,please turn off power adapter switch and AC plug. 2)Use soft cloth or tissue to clean the camera cover. 3)Use soft cloth to clean the lens; Use neuter cleanser if bad smeared. No use strong or corrosive cleanser or corrosive cleanser avoiding scuffing.
  • Page 63 menu.If video output from LAN,menu will not be displayed,menu will automatically exists 30s later,then it can be controlled by remote controller. 5) Serial port can not work. a, Check whether the camera serial device protocol,baud rate,address is consistent b, Check whether the control cable is connected properly c, Check whether the camera working mode is the normal operating mode (see Table 2.2 and Table 2.3) 6) Web pages can not log in ——a,Check whether the camera is showing normally.
