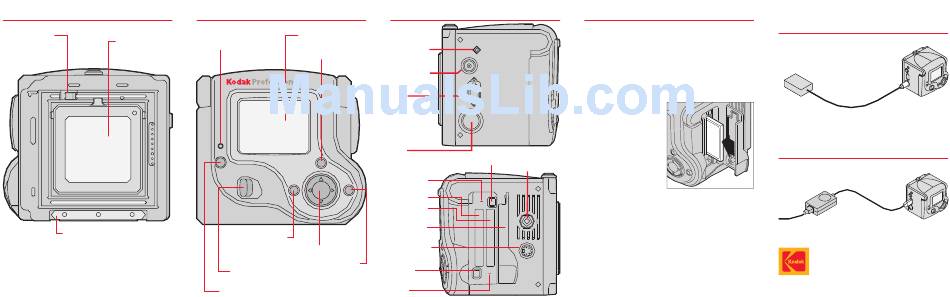

Kodak DCS Pro Back Plus Quick Reference page 2

Front
(attaches to camera body)
Filter Latch
IR Filter*
Slots for connecting to camera
body or MAMIYA Interface Plate
*To obtain correct focus you must use either an IR filter or
an anti-aliasing filter which is available as an accessory.
Rear
Image LCD
Camera Ready LED
Cancel button
CANCEL
PWR
MENU OK
DCS Pro Back Plus
Menu button
Four-way switch
OK button
Image LCD Tilt Latch
Power button
Sides
Lens Sync
Cable jack
Flash Sync
Cable jack
IEEE 1394
Port
Battery
Connection
jack
Remote Shutter
Card1 Eject button
release jack
Card2
Busy LED
Card2 slot
Card1 slot
Card door
S-Video
Output jack
Card2 Eject
button
Card1 Busy
LED
Inserting/Removing a CF Card
To Insert:
1. Open the Card door.
2. Insert a card in the slot and press firmly
until you feel the card seat. (When using
a single card, you can use either slot.)
3. Insert a second
card, if needed.
(The first card
inserted is the
active card.)
4. Close the Card
door.
To Remove:
1. Open the Card door.
CAUTION: Do not remove the card when
the Card Busy LED is flashing. Doing so
could destroy all the image files on the
card.
2. Press the Eject button next to the card
to be ejected.
Connecting to a Battery
in Portable Mode
DCS Pro Back Plus
Compatible
Battery
Battery Cable
Connecting to an AC Adapter
in Portable Mode
DCS Pro Back Plus
AC adapter
DC
AC
EASTMAN KODAK COMPANY
Rochester, New York 14650
© Eastman Kodak Company, 2001
Kodak and Kodak Professional are trademarks.
Printed in U.S.A. P/N 6B5811 9/01
