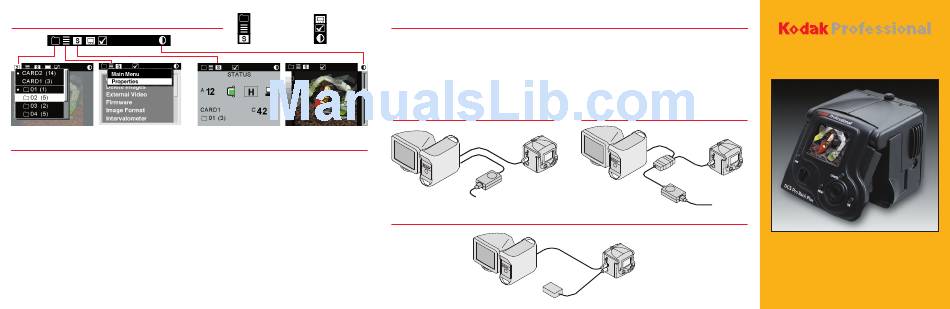

Kodak DCS Pro Back Plus Quick Reference

Displaying and Navigating the Menu Bar
Using the Image LCD and Digital Buttons
Turn the Image LCD on .........................................Press the OK button.
Select a highlighted menu option ..........................Press the OK button.
Enable Region of Interest box (Zoom mode).........Press the OK button.
Implement a zoom (Zoom mode) ..........................Press the OK button.
Delete an image (Delete mode).............................Press the OK button.
Toggle the Menu bar on/off....................................Press the Menu button.
Turn the Image LCD off .........................................Press the Cancel button.
Dismiss a menu without implementing change .....Press the Cancel button.
Disable Region of Interest box (Zoom mode)........Press the Cancel button.
Navigate through images in all Display modes
(except Zoom mode when Region of
Interest box is on) .............................................Press the left or right side of the 4-way switch.
Using the Image LCD and Digital Buttons
Folder icon Video icon
Menu icon Tag icon
Status screen icon Contrast icon
Navigate the Menu bar and display menus ...........Press the left or right side of the 4-way switch.
Navigate a drop-down menu .................................Press the top or bottom of the 4-way switch.
Change to a different Display mode ......................Press the top or bottom of the 4-way switch.
Move the Region of Interest box (Zoom mode) .....Press any edge of the 4-way switch.
Connecting to a Computer with
Two IEEE 1394 Ports
Computer
Connecting to a Computer Using Battery Power
(continued)
Connecting to a Computer with
One IEEE 1394 Port
DCS Pro Back
IEEE
Plus
1394 cable
DC
DC
Computer
AC adapter
AC
AC adapter
IEEE
DCS Pro Back Plus
1394 cable
Compatible
Battery
Computer
Battery cable
DCS Pro Back Plus
IEEE DCS Pro Back
1394 cable Plus
IEEE
1394 hub
AC

Quick Reference
