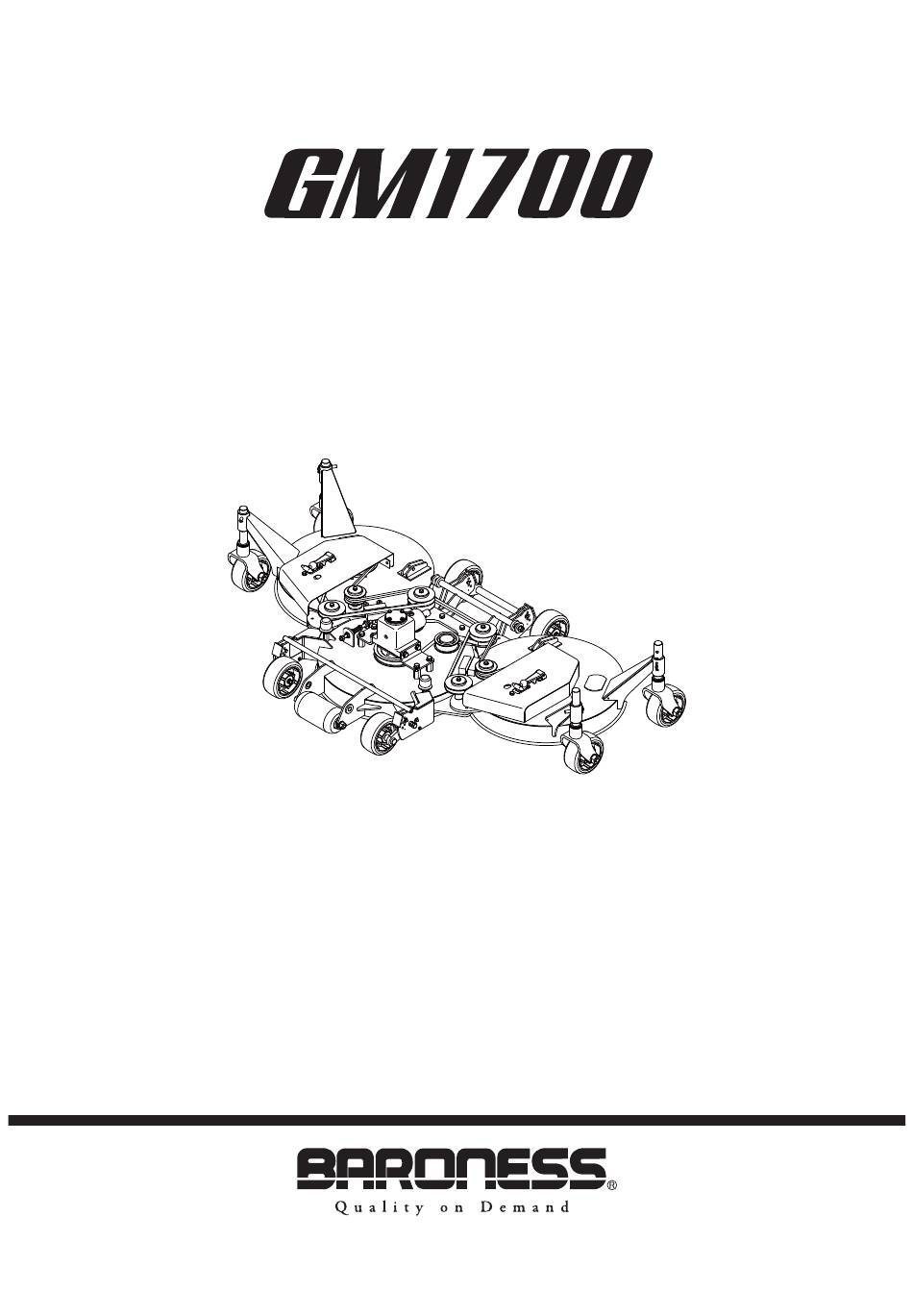

- Page 1 Contour Deck for GM1700 Owner's Operating Manual Serial No. GM1700 : 21202- (GM1700 Main Vehicle) "Required reading" Read this manual before using the machine. Original Instructions Ver.1.6...
- Page 2 GM1700 Greeting Thank you for purchasing the Baroness product. This manual describes the proper handling, adjustment, and inspection of your product. We hope you will use the product safely, and take advantage of its best performance. For details on the handling, adjustment and inspection of the main vehicle, refer to the Owner's Operating Manual for the main vehicle.
- Page 3 The operator is responsible for operating the product properly and safely. Maintenance service for this machine should be performed by a mechanic with expertise. If you have any questions concerning maintenance or genuine parts, please contact a Baroness dealer or Kyoeisha.
- Page 4 When replacing parts, be sure to use genuine Baroness parts or parts designated by Kyoeisha. Note that the Baroness product warranty may not apply to defects caused by the use of parts from other companies. Prior to use, carefully read the following manuals to thoroughly understand the contents for safe and correct operation.
-
Page 5: Table Of Contents
GM1700 Contents Safety .............. Page 1-1 Safe Operating Practices .......Page 1-2 Disposal ............Page 2-1 Recycle and Waste Disposal ......Page 2-2 Product Overview .......... Page 3-1 Specifications ..........Page 3-2 Names of Each Section ......... Page 3-3 Regulation Decals ..........Page 3-4 Safety Signs and Instruction Signs .... - Page 6 GM1700 Contents...
-
Page 7: Safety
GM1700 Safety Safe Operating Practices ...... Page 1-2 Page 1-1... -
Page 8: Safe Operating Practices
Observe the following safety instructions to ensure safe operation. Safe Operating Practices Read Safe Operating Practices described in the Owner's Operating Manual of Baroness main vehicle equipped with this mower deck thoroughly. Page 1-2 Safe Operating Practices... -
Page 9: Disposal
GM1700 Disposal Recycle and Waste Disposal ....Page 2-2 About Recycle ........Page 2-2 About Waste Disposal ......Page 2-2 Page 2-1... -
Page 10: Recycle And Waste Disposal
GM1700 Disposal Recycle and Waste Disposal About Recycle Recycling battery etc. is recommended for environmental conservation and economical use of resources. It may be required by local laws. About Waste Disposal Make sure that waste generated when servicing or repairing the machine is disposed of in accordance with local regulations. -
Page 11: Product Overview
GM1700 Product Overview Specifications ........Page 3-2 Specifications .........Page 3-2 Features of Contour Deck ..... Page 3-3 Names of Each Section ......Page 3-3 Regulation Decals ........Page 3-4 Positions of Regulation Decals ....Page 3-4 Description of Regulation Decals ..Page 3-4 Safety Signs and Instruction Signs .. -
Page 12: Specifications
1.5 acres/hour (3.11 mph x mowing 6,040 m /h (5.0 km/h x mowing width Efficiency width x 0.8) x 0.8) Values within [ ] are dimensions and weight of GM1700 main vehicle equipped with Contour Deck, ROPS and empty fuel tank. Page 3-2 Specifications... -
Page 13: Names Of Each Section
GM1700 Product Overview Features of Contour Deck Names of Each Section The swing of the left and right mower decks enables you to cut grass on undulations. The left and right mower decks each swing 8° up and down [up and down movement of left/right blade tips is ±76 mm (±3.0 in)]. -
Page 14: Regulation Decals
If they are damaged, become dirty, or Caution to Rotating Object Decal_001 peel off, replace them with new ones. Part numbers for decals that need to be replaced are listed in the parts catalog. Order them from a Baroness dealer or Kyoeisha. Page 3-4 Regulation Decals... - Page 15 GM1700 Product Overview DO NOT STEP Caution Decal Caution for Hand or Leg Injury Decal K4209001340 K4205001780 Decal, caution "DO NOT STEP" Decal, caution for hand or leg injury Caution Warning Do not step. May cut your hand or leg - When the blades are rotating, keep away from the machine.
- Page 16 GM1700 Product Overview Page 3-6 Safety Signs and Instruction Signs...
-
Page 17: Handling Instructions
GM1700 Handling Instructions Handling Precautions ......Page 4-2 Pre-installation Adjustments ....Page 4-2 Installation of Contour Deck ....Page 4-2 Installation of Universal Joint ....Page 4-5 Inspections ..........Page 4-5 Rotary Knife ........... Page 4-5 Cover ............. Page 4-6 Belt ............Page 4-6 Roller ............. -
Page 18: Handling Precautions
This manual contains descriptions for handling the mower deck. For details on handling, refer to this manual and the main vehicle GM1700 Owner's Operating Manual. Pre-installation Adjustments Installation of Contour Deck Move the main vehicle and mower deck onto atlwem-002 a level surface. - Page 19 GM1700 Handling Instructions Install the lift chain, and then secure it with Install the stopper arm onto the main vehicle the cotter pin. with the bolt and nut. Follow the same installation step for the left Follow the same installation step for the left and right sides.
- Page 20 GM1700 Handling Instructions Place the mower deck in the appropriate Important position. Make sure that the lift chain is not twisted. Install the lift chain onto the mower deck with the pin, and then secure it with the cotter pin.
-
Page 21: Inspections
GM1700 Handling Instructions Caution Universal joint Be sure to stop the engine before making Washer adjustments. Cotter pin Note: Note: If the decks are not equally raised, adjust the For removing the universal joint, reverse the installation position of the link fulcrum shafts. -
Page 22: Cover
GM1700 Handling Instructions Make sure that there are no cracks or tears Warning between the sail and flat part of the rotary knife. If you have removed any covers, etc., during inspection, make sure that you securely re- attach them in their original positions. -
Page 23: Caster
GM1700 Handling Instructions Caster Inspection of Casters Wear of bearings due to frequent use and/or damage of bearing, etc. caused by invasion of water may prevent smooth rotation of the casters. Inspect the casters and, if necessary, replace parts such as bearings. -
Page 24: Tightening Torques
GM1700 Handling Instructions Tightening Torques Important Refer to the Tightening Torque table. Note that the Baroness product warranty may not apply to defects caused by incorrect or overtorque tightening, etc. Standard Tightening Torques Bolts and Nuts Important A number of bolts are used in each part of this machine. - Page 25 GM1700 Handling Instructions General bolt Strength classification 4.8 Nominal diameter tib3yb-001 kgf-cm lb-in 3 - 5 30.59 - 50.99 26.55 - 44.26 7 - 9 71.38 - 91.77 61.96 - 79.66 14 - 19 142.76 - 193.74 123.91 - 168.17 29 - 38 295.71 - 387.49...
-
Page 26: Principal Tightening Torques
GM1700 Handling Instructions Principal Tightening Torques Tightening Torque by Model GM1700_Contour deck Tighten the following bolts and nuts at the torque specified in the table. For thread locking adhesive, apply a middle strength thread locker (ThreeBond 1322 or equivalent anaerobic sealant). -
Page 27: Adjustment Before Work
GM1700 Handling Instructions GM1700-2161Z0 Adjustment before Work Contour deck cutting height adjustment label Adjustment of Cutting Height Cutting Height Table Important Adjust all mower decks to the same cutting height. The adjustment range for the cutting height is 35 - 95 mm (1.4 - 3.7 in) [15 mm (0.6 in) yizobu-004 spacing, 5 levels]. - Page 28 GM1700 Handling Instructions Cutting height gauge wheel Cutting height gauge wheel Bolt Washer Cotter pin Remove the cotter pin and washer from the cutting height gauge wheel at the front Refer to the Cutting Height Table, and of the center mower deck, and then then change the hole positions.
-
Page 29: Storage
GM1700 Handling Instructions Insert the pin, and then securely install the caster with the washer and cotter pin. Storage Long-Term Storage Follow the instructions below for long-term storage of the machine. Cleaning Remove dirt, grass clippings, oil stains etc. ･... - Page 30 GM1700 Handling Instructions Page 4-14 Storage...
-
Page 31: Maintenance
GM1700 Maintenance Maintenance Precautions ..... Page 5-2 Maintenance Schedule ......Page 5-3 Adjusted Values ........Page 5-3 Greasing ..........Page 5-4 About Greasing ........Page 5-4 Greasing Points ........Page 5-4 Maintenance Work ......... Page 5-5 Cleaning of Contour Deck ..... Page 5-5 Change of Rotary Knife ...... -
Page 32: Maintenance Precautions
Use tools appropriate for each maintenance operation. Important For the safe and best performance of your machine, use Baroness genuine parts for replacement and accessories. Please note that our product warranty may be void if you use non-genuine parts for replacement or accessories. -
Page 33: Maintenance Schedule
GM1700 Maintenance Maintenance Schedule Standard Deck for GM1700 Contour Deck for GM1700 Mulching Deck for GM1700 Follow the maintenance schedule below. ○・・・Inspect, adjust, supply, clean ●・・・Replace (first time) △・・・Replace Maintenance Item Remarks Tightening the parts ○ ... -
Page 34: Greasing
GM1700 Maintenance Tension lever fulcrum Greasing Left/right mower decks About Greasing One greasing point is provided to each of the right and left mower decks. Since there may be adhesion or damage due to lack of grease on moving parts, they must be greased. -
Page 35: Maintenance Work
GM1700 Maintenance Change of Rotary Knife Maintenance Work Cleaning of Contour Deck Caution The rotary knife is an edged tool. Caution Take extra care in handling since they could When using a ramp, etc., apply the parking cut your hands or legs. - Page 36 GM1700 Maintenance Contour Deck Important Before installing the rotary knife, make sure Caution that it is balanced. When using a ramp, etc., apply the parking If the edge of the rotary knife becomes chipped brake, and chock the tires. or thin, replace it with a new one.
- Page 37 GM1700 Maintenance Follow the steps below to remove the rotary Important knife. The disc spring has a specific installation Use the square pipe from the included orientation. tools to secure the rotary knife so that it Do not install it facing the wrong direction.
-
Page 38: Grinding Of Rotary Knife
GM1700 Maintenance When, after grinding, the blade base of the Grinding of Rotary Knife rotary knife does not reach the sail Caution The rotary knife is an edged tool. Take extra care in handling since they could cut your hands or legs. -
Page 39: Balancing Of Rotary Knife
GM1700 Maintenance Follow the steps below to grind the rotary knife. Balancing of Rotary Knife Remove the rotary knife from the mower deck. Caution "Change of Rotary Knife" (Page 5-5) The rotary knife is an edged tool. Important Take extra care in handling since they could cut your hands or legs. -
Page 40: Adjustment Of Belt Tension
GM1700 Maintenance If the belt tension is not appropriate, adjust Adjustment of Belt Tension it by tightening the nut so that the length of the tension spring extends 35.0 mm (1.38 Warning in) from the end of the spring guide. -
Page 41: Adjustment Of Stoppers
GM1700 Maintenance Adjustment of Stoppers Lift Stoppers The rubber stoppers may wear or deteriorate The lift stoppers fulfill the role of preventing due to frequent use and may no longer perform interference between the mower deck and the as expected. - Page 42 GM1700 Maintenance Page 5-12 Maintenance Work...
- Page 43 1-26, Miyuki-cho, Toyokawa-city, Tel : +81 - 533 - 84 - 1390 Head Office Aichi-pref, 442-8530 JAPAN Fax : +81 - 533 - 84 - 1220 GM1700--UMA-GBZ/22J-00-S.K...
