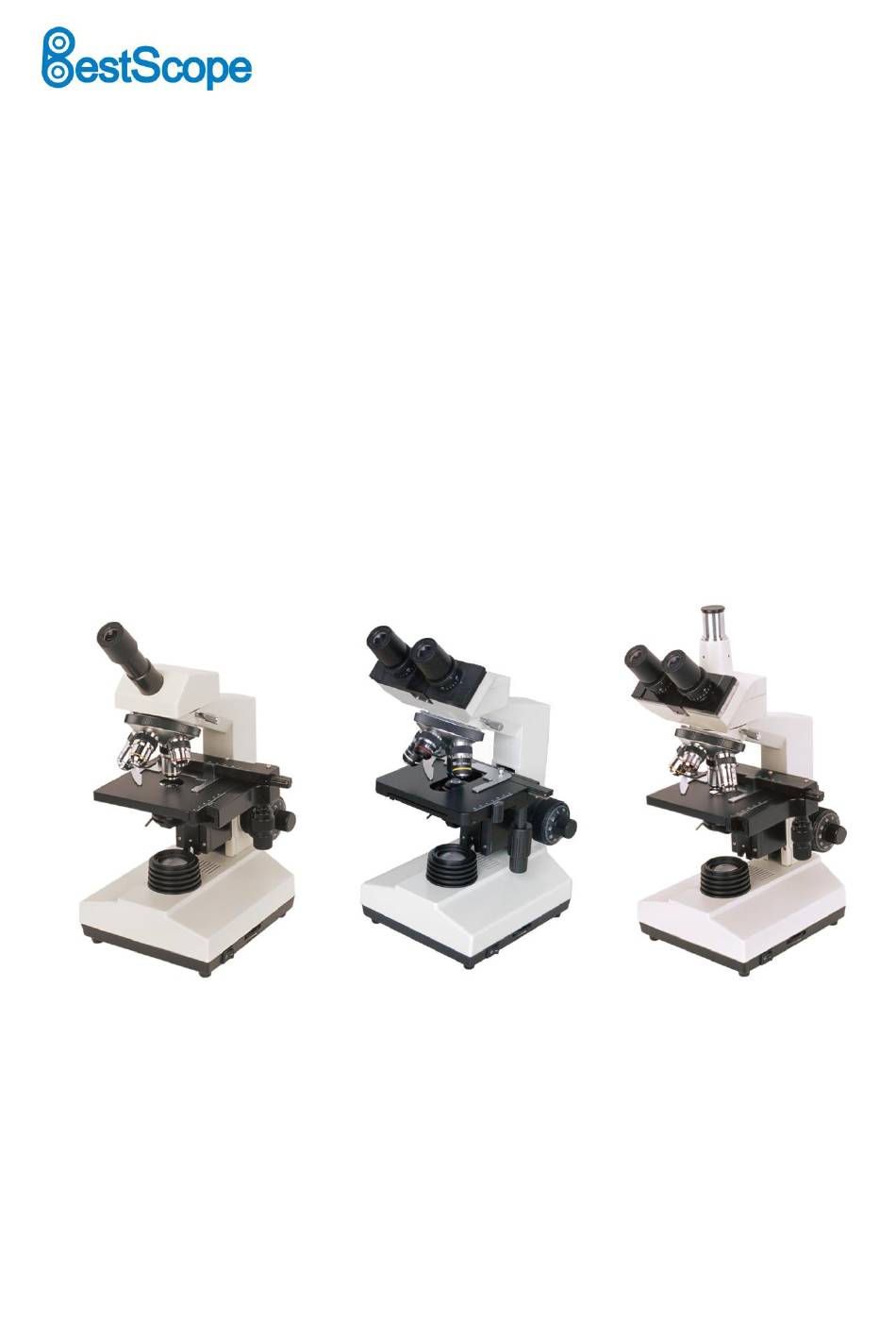

Biological Microscope
Model Number:BS-2030M/B/T
User Manual
BS-2030M
BS-2030B
BS-2030T
This instruction manual is for BS-2030M/B/ T biological microscope. To ensure safety and obtain optimum
performance and familiarize yourself fully with the use of this microscope. We recommend that you read
the manual thoroughly before operating the microscope, Attain this manual instruction in an easily
accessible place near the microscope for the further reference.
Advertisement
Table of Contents
Related Manuals for BestScope BS-2030B
Summary of Contents for BestScope BS-2030B
- Page 1 Biological Microscope Model Number:BS-2030M/B/T User Manual BS-2030M BS-2030B BS-2030T This instruction manual is for BS-2030M/B/ T biological microscope. To ensure safety and obtain optimum performance and familiarize yourself fully with the use of this microscope. We recommend that you read the manual thoroughly before operating the microscope, Attain this manual instruction in an easily accessible place near the microscope for the further reference.
-
Page 2: Table Of Contents
Bestscope International Limited CONTENTS ..............2 User Notice ............. 4 1. Components ..............5 2. Assembly ..........5 2.1 Assembly Diagram ............ 6 2.2 Assembly Steps ........... 10 3．Adjustment & Operation ..........10 3.1 Adjustment Sets ............11 3.2 Operation ............ -
Page 3: User Notice
Bestscope International Limited User Notice I. Safety Notes 1. Carefully open the box, avoid the accessories, like lens, dropping to ground and being damaged. 2. Do keep the instrument out of direct sunlight, high temperature or humidity, dusty and easy shaking environment. - Page 4 Bestscope International Limited neutral detergent. When using, if the microscope is splashed by liquid, cut off the power at once, and wipe up the moisture. Do not disassemble any parts of the microscope, which will affect the function or decline the performance of the microscope.
-
Page 5: Components
Bestscope International Limited 1. Components Eyepiece Binocular viewing head Slide clip Nosepiece Objectives Condenser Collector Stage Main body BS-2030B Biological Microscope... -
Page 6: Assembly
Bestscope International Limited 2.Assembly 2.1 Assembly Diagram The following figure shows the installation sequence of the components. The number in the figure shows the assembly steps. Before installing, be sure every component is clean, do not score any parts or glass surface. -
Page 7: Assembly Steps
Bestscope International Limited 2.2 Assembly Steps 2.2.1 Installing Binocular viewing head (Fig.1, 2) Insert the digital viewing head into the microscope head, turn into the right position, then screw down the bolt① to fix it. 2.2.2 Installing the eyepieces (Fig.3, Fig.1... - Page 8 Bestscope International Limited 2.2.3 Installing objectives (Fig.5& 6) 1. Adjusting the coarse focus knob until the support device of the mechanical stage reaches its low limit position. 2. Screw the lowest magnification objective into the nosepiece from the left or the right Fig.5...
- Page 9 Bestscope International Limited 2.2.5 Connecting the power cord (Fig.8, 9,10) ★ The cable and cords are vulnerable when bent or twisted, never subject the power cord to excessive force. Turn the main switch① to “O” (off) state ① before connecting the power cord.
- Page 10 Bestscope International Limited 2.2.7 Installing and replacing the lamp (Fig.11, 12) Please use the specified halogen Lamp 6V20W. Replace the lamp as follows if necessary. ① ② Please set the main switch to “O” (off) state before replacing, and make sure the bulb, the Fig.11...
-
Page 11: 3．Adjustment & Operation
Bestscope International Limited 3．Adjustment & Operation 3.1 Adjustment Sets ( Fig.14, Fig.15) Diopter Ring Locking Set Interpupillary Distance Indicator Left Coarse Focus Knob Longitudinal Adjustment Knob Left Fine Focus Knob Knob Transversal Adjustment Knob Condenser Adjustment Knob Aperture Diaphragm Adjustment Lever Fig.14... -
Page 12: Operation
Bestscope International Limited 3.2 Operation 3.2.1 Adjusting the brightness (Fig.16) Connect power, turn main switch①(shown in the figure)which on the bottom side of the base to “－”(on). Turning brightness adjustment knob ②clockwise, the voltage decline, and the brightness weaken; Whereas turning at the opposite direction, the voltage raise, and the brightness strengthen. - Page 13 Bestscope International Limited ● The tight tension of the coarse focus knob has already been adjusted before leaving factory. If loosen (e.g. the stage slip down by its weight), please screw the intention adjustment collar③ to the right position by the supplied spanner.
- Page 14 Bestscope International Limited ● Minify the aperture below 60% of the objective’s numerical aperture unless in a special case, for instance, observing an almost transparent specimen. ● The numerical aperture is marked on the objective. For example, the mark “ 10/0.25 ” means the magnification is 10×, and the numerical aperture is 0.25.
-
Page 15: Specification Table
Bestscope International Limited 4. Specification Table 4.1 Main specifications Mechanical Tube Length 160mm Sliding Monocular/Binocular/Trinocular Head, 45°Inclined, Interpupillary Viewing Head Distance55-75 mm Eyepiece Field of view: φ18mm Nosepiece External Quadruple Nosepiece Objective Achromatic objectives 4×, 10×, 40×, 100×(immersion oil) Coaxial Coarse & Fine Adjustment, Moving Range 30mm, Fine Division Focusing 0.002mm. -
Page 16: 5．Outfit
Bestscope International Limited Plan Achromatic Objectives are optional Designation Magnification Numerical Aperture Working Distance 0.10 15.8mm Plan Achromatic 0.25 12.2 mm Objective 40X(S) 0.65 0.37 mm 100X( Oil,S) 1.25 0.13 mm Eyepieces Designation Magnification Field of view(mm) Focal Length(mm) Wide Field Φ18... -
Page 17: 6．Troubleshooting Guide
Bestscope International Limited 〇 6V20W Halogen Lamp 〇 Spare lamp (6V20W Halogen lamp) 〇 Spare fuse(2A) 〇 Eyepieces 10× Plan Eyepieces 〇 Achromatic objective 4× 〇 Achromatic objective 10× Objectives 〇 Achromatic objective 40× 〇 Achromatic objective 100×(oil, spring) Bright Field Condenser with Adjustable 〇... - Page 18 Bestscope International Limited resolution \ contrast) didn’t use oil for the oil objective Use immerse oil There was bleb in the oil Eliminate the bleb Use a unsuitable oil Change to the specified The size of the aperture diaphragm is too big...
- Page 19 Bestscope International Limited No diopter adjustment Adjust the diopter correctly Eyes are too tired The brightness is not suitable Adjust the voltage of the lamp 3. Electrical system TROUBLE CAUSE SOLUTION Check the connection of the power No power cord The lamp can’t light...
