Bestscope International Limited

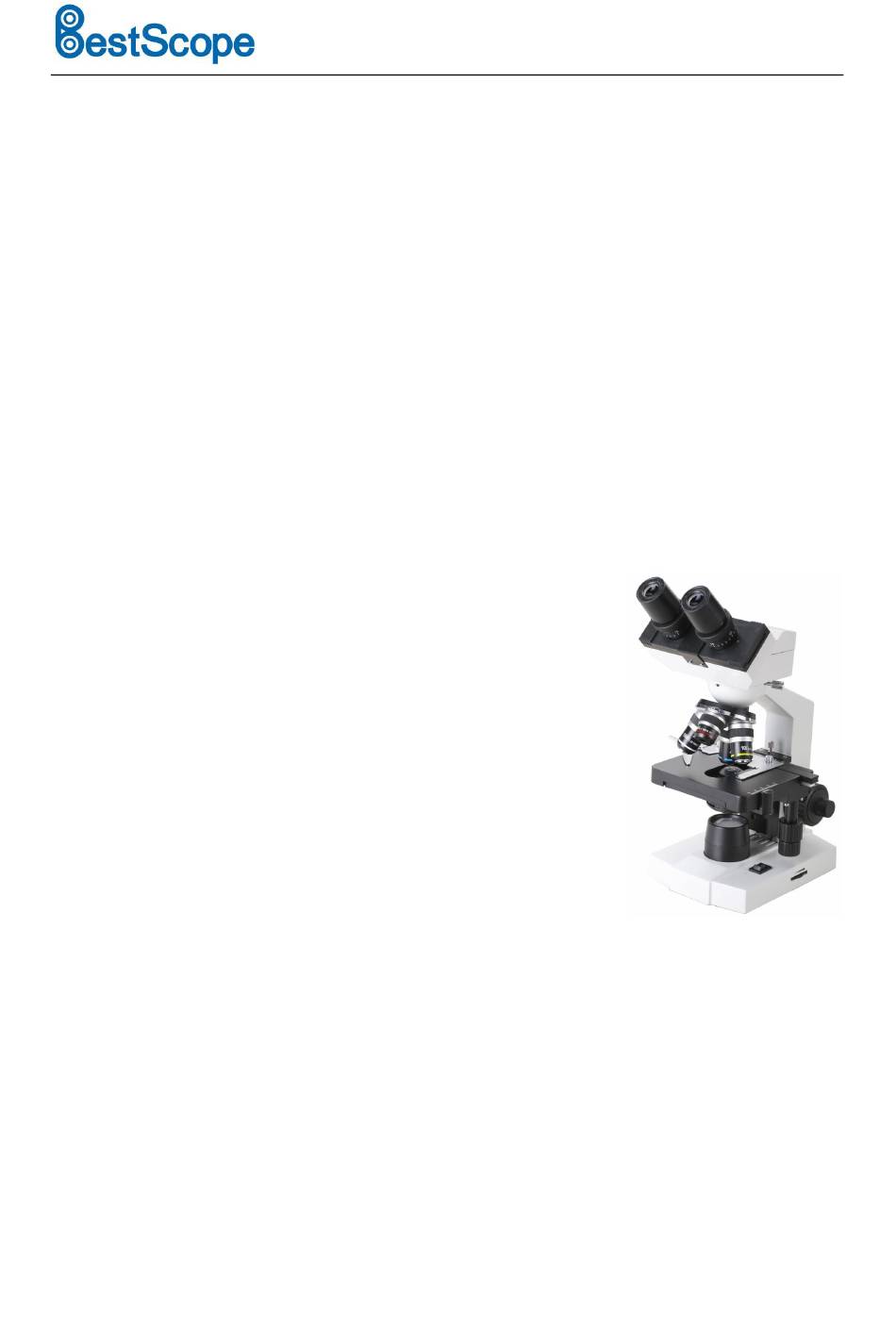

Digital Binocular Microscope
BS-2010BD
Instruction Manual
This manual is written for digital binocular microscope BS-2010BD. To ensure the safety, obtain optimum
performance and to familiarize the use of this microscope, it is recommended strongly that you study this
manual thoroughly before using the microscope and retain this manual in an easily accessible place near
the work desk for future reference.
Advertisement
Related Manuals for BestScope BS-2010BD
Summary of Contents for BestScope BS-2010BD
- Page 1 BS-2010BD Instruction Manual This manual is written for digital binocular microscope BS-2010BD. To ensure the safety, obtain optimum performance and to familiarize the use of this microscope, it is recommended strongly that you study this manual thoroughly before using the microscope and retain this manual in an easily accessible place near...
- Page 2 Main switch 1. Brief introduction Digital binocular microscope BS-2010BD is widely used in biological, pathological, bacteriological fields for purposes such as observation, research, academic demonstration, clinic, medical inspection. It features more comfortable and reliable operation with modern design and advanced technology.
- Page 3 Bestscope International Limited 2. Main Specifications 1. Mechanical tube: 160mm 2. Objectives (achromatic)： Magnification Numerical Focal Length Working Aperture f (mm) distance (mm) 0.10 31.05 37.5 0.25 17.13 7.316 0.65 4.65 0.632 100X 1.25 2.906 0.198 3. Eyepiece Category Magnification Focal Length f(mm) Field of view（mm）...
- Page 4 Bestscope International Limited 4. Structure Feature Eyepiece, objective and nosepiece 10X plan eyepieces combined with 4X, 10X, 40X, 100X achromatic objectives can give the microscope a large and clear field of view. The nosepiece has a precise frame which can locate objectives accurately and stably.
-
Page 5: Operation
Bestscope International Limited The condenser had been installed in the microscope before leaving factory. F) Collector: The collector had been installed and located before leaving factory. The screw-mounted collector can be taken down by anticlockwise turning. H) Filter: Mount the filter on the iris diaphragm bracket under the condenser if necessary. -
Page 6: Troubleshooting
Bestscope International Limited disassemble them as possibly as you can. 4. Keep the instrument clean, wipe dust regularly, apply a little non-corrosive grease in the sliding parts and be attention to avoid contaminating the optical elements especially. 5. Place the instrument in a cool, dry position. When not using the microscope, keep it covered with a dust helmet. - Page 7 Bestscope International Limited The size of the aperture diaphragm is too Minify it large The size of the aperture diaphragm is too Open it up small The position of the condenser is too low Adjust the position The condenser is not in the center of the...
- Page 8 Bestscope International Limited The brightness is not Use a substandard AC adapter Use the specified AC enough adapter The voltage is too low Add the voltage 9．The software Scopeimage 9.0 1) Installation 1. Link the digital Binocular head to a PC by the USB cable, the system will find the new device, and then run the driver under the CD, please follow the clue to finish the installation.
- Page 9 Bestscope International Limited ★ Please use the same USB2.0 port every time. Using on a different USB2.0 port requires reinstalling or updating the driver again to make the camera work rightly. If not, it will influence the performance of the camera, and cause the live image displays drag, for there is another system driver, and the system set it as default driver.
- Page 10 Bestscope International Limited Besides image windows, many other windows or user interface elements reside within the main window of ScopeImage 9.0. These include menu, toolbars, status bar and control windows, providing additional information about the images or control of the camera.
