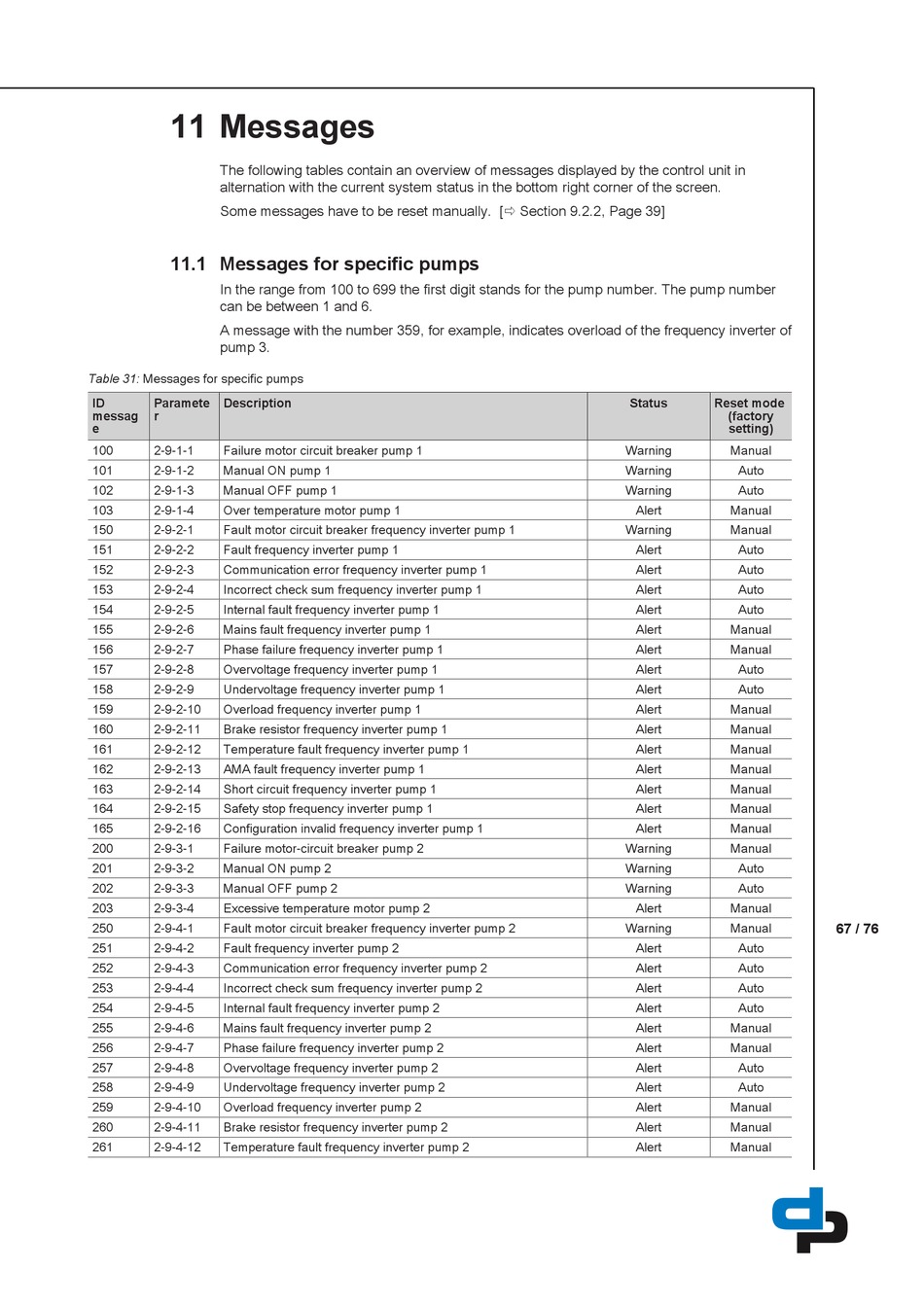

11 Messages

The following tables contain an overview of messages displayed by the control unit in
alternation with the current system status in the bottom right corner of the screen.
Some messages have to be reset manually. [ð Section 9.2.2, Page 39]

11.1 Messages for specific pumps

In the range from 100 to 699 the first digit stands for the pump number. The pump number
can be between 1 and 6.
A message with the number 359, for example, indicates overload of the frequency inverter of
pump 3.
Table 31: Messages for specific pumps
ID Paramete Description
messag r
e
100 2-9-1-1 Failure motor circuit breaker pump 1
101 2-9-1-2 Manual ON pump 1
102 2-9-1-3 Manual OFF pump 1
103 2-9-1-4 Over temperature motor pump 1
150 2-9-2-1 Fault motor circuit breaker frequency inverter pump 1
151 2-9-2-2 Fault frequency inverter pump 1
152 2-9-2-3 Communication error frequency inverter pump 1
153 2-9-2-4 Incorrect check sum frequency inverter pump 1
154 2-9-2-5 Internal fault frequency inverter pump 1
155 2-9-2-6 Mains fault frequency inverter pump 1
156 2-9-2-7 Phase failure frequency inverter pump 1
157 2-9-2-8 Overvoltage frequency inverter pump 1
158 2-9-2-9 Undervoltage frequency inverter pump 1
159 2-9-2-10 Overload frequency inverter pump 1
160 2-9-2-11 Brake resistor frequency inverter pump 1
161 2-9-2-12 Temperature fault frequency inverter pump 1
162 2-9-2-13 AMA fault frequency inverter pump 1
163 2-9-2-14 Short circuit frequency inverter pump 1
164 2-9-2-15 Safety stop frequency inverter pump 1
165 2-9-2-16 Configuration invalid frequency inverter pump 1
200 2-9-3-1 Failure motor-circuit breaker pump 2
201 2-9-3-2 Manual ON pump 2
202 2-9-3-3 Manual OFF pump 2
203 2-9-3-4 Excessive temperature motor pump 2
250 2-9-4-1 Fault motor circuit breaker frequency inverter pump 2
251 2-9-4-2 Fault frequency inverter pump 2
252 2-9-4-3 Communication error frequency inverter pump 2
253 2-9-4-4 Incorrect check sum frequency inverter pump 2
254 2-9-4-5 Internal fault frequency inverter pump 2
255 2-9-4-6 Mains fault frequency inverter pump 2
256 2-9-4-7 Phase failure frequency inverter pump 2
257 2-9-4-8 Overvoltage frequency inverter pump 2
258 2-9-4-9 Undervoltage frequency inverter pump 2
259 2-9-4-10 Overload frequency inverter pump 2
260 2-9-4-11 Brake resistor frequency inverter pump 2
261 2-9-4-12 Temperature fault frequency inverter pump 2
Status Reset mode
(factory
setting)
Warning Manual
Warning Auto
Warning Auto
Alert Manual
Warning Manual
Alert Auto
Alert Auto
Alert Auto
Alert Auto
Alert Manual
Alert Manual
Alert Auto
Alert Auto
Alert Manual
Alert Manual
Alert Manual
Alert Manual
Alert Manual
Alert Manual
Alert Manual
Warning Manual
Warning Auto
Warning Auto
Alert Manual
Warning Manual
Alert Auto
Alert Auto
Alert Auto
Alert Auto
Alert Manual
Alert Manual
Alert Auto
Alert Auto
Alert Manual
Alert Manual
Alert Manual
