- Page 1 ---------------------------------------------------------------------------------------------------------------------- JC Electronic Crane Scale User’s Guide CRANE SCALE...
-
Page 2: Table Of Contents
---------------------------------------------------------------------------------------------------------------------- Table of contents 1.Overview ·················································································· 3 2.Features & Specifications······························································· 3 3.Keypad operation ········································································ 3 4.General Scale Operation ································································ 4 5.Battery Charging ········································································· 5 6.Precaution ················································································· 5 7.Calibration Method ······································································ 6 8.Setup Functions in Sub-Menu·························································· 6 9.Schematics ················································································ 7 10.Optional Accessories·································································· 10 11.Error Information ······································································... -
Page 3: Overview

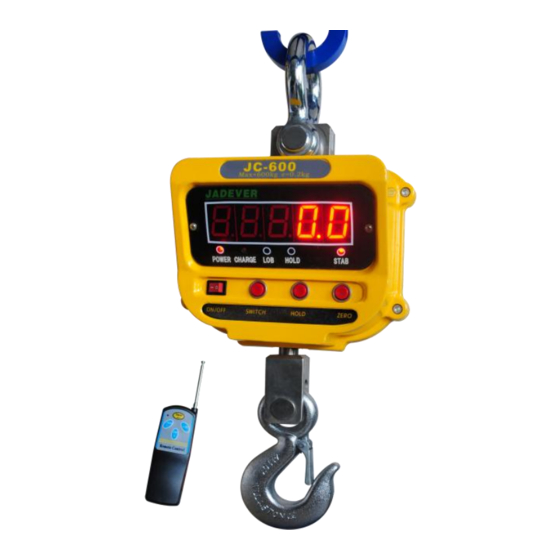

---------------------------------------------------------------------------------------------------------------------- Overview JC series electronic crane scale combines reliable, advanced electrical hardware with good software. Using AT series micro-processor and high speed, high precision A/D conversion technology, the JC series of scale has a specially designed jittering compensation circuitry， so they can reach steady state quickly with strong anti-interference capability. -
Page 4: General Scale Operation
---------------------------------------------------------------------------------------------------------------------- Max. Capacity Model Measured Division Division Hi resolution (kg) JC-600 600kg 0.2kg 0.1kg JC-1000 1000kg 0.5kg 0.2 kg JC-2000 2000kg 0.5 kg JC-3000 3000kg 0.5 kg JC-5000 5000kg 1 kg JC-10t 10000kg 2 kg JC-15t 15000kg 10kg 5 kg JC-20t 20000kg 10kg... -
Page 5: Battery Charging
---------------------------------------------------------------------------------------------------------------------- to set the display to “0”. 3. Weight Measurement Once the load is suspended completely, the display shows the weight value of the load. When the “Stable” indicator is lit, weight value can be recorded. In case there is tare such as cable, load the tare and press [ZERO] to zero the display to “0”kg. -
Page 6: Calibration Method
---------------------------------------------------------------------------------------------------------------------- Do not use the scale in the rain or heavily polluted environment. If the scale is not going to be used for some time, please clean it, remove the battery and store it in dry conditions. For problem “a” through “d”, please stop using the scale and send it back to your supplier for repair or replacement of problem parts. -
Page 7: Schematics
---------------------------------------------------------------------------------------------------------------------- when unstable Press [HOLD] [SWITCH] to change. Backlighting setup 0: Manual 1: to Auto Press [ZERO] press [HOLD] or [Switch] to change. Sets units Press [ZERO] 0: lb 1: kg Save results Press [ZERO] 0: don’t save 1: save Press [HOLD] [SWITCH] to change. - Page 8 ---------------------------------------------------------------------------------------------------------------------- Model JC-15t JC-20t JC-30t 1072 Dimensions of JC（600KG-15T）...
- Page 9 ---------------------------------------------------------------------------------------------------------------------- Model JC-600 JC-1000 JC-2000 JC-3000 JC-5000 JC-10t JC-15t...
-
Page 10: Optional Accessories
---------------------------------------------------------------------------------------------------------------------- Optional Accessories Key pad functions of remote control (This is for the scales with remote control) 【Zero】: To zero the displaying weight. 【Hold】: Keep the current displaying weight and the indicating lamp will be lit. 【+/BL】: Turn on the backlighting. . (Only applies when the scale has a LCD display.) 【SW】: Change the division value between measured division and hi-resolution division. - Page 11 ---------------------------------------------------------------------------------------------------------------------- Er2; There is incorrect password to modify the calibration data. Err3: The weight value at the calibration point is too small. It should be no less than 3 valid digits. Err4: Incorrect calibration password. Please input the correct password. Err5: The internal code at the calibration point is too small.
