TECH SUPPORT: 503.693.1918
KEYLESS ENTRY SYSTEM
AUTKL600
6 channel system
Remote Transmitter
(illustration may very from actual remote)
USER GUIDE

CODE LEARNING

a. Turn key to ON position (yellow ACC wire must be hooked up), press
valet button for 3 seconds. The parking lights will flash once to indicate
code learning mode. Press any button in order to learn the desired
remote. The parking lights will flash once for confirmation, after each
remote transmitter is learned. Up to 4 remote transmitters can be learned
at this time.
b. Turn key to OFF position or wait for 5 seconds and system will exit
code learning.

REMOTE DOOR LOCKING

a. Press button 1. The parking lights will flash once. The starter/ignition
kill circuit will be enabled and the lock output will pulse for 1 second or
until button 1 is released.
b. LED will begin flashing slowly.

REMOTE DOOR UNLOCKING

a. Press button 2. The parking lights will flash twice. The starter/ignition
kill circuit will be disabled and the unlock output will pulse for 1 second
or until button 2 is released.
b. LED will be off.

CH1 OUTPUT

Press button 3 to output channel 1 continuously until button 3 is released.

CH2 OUTPUT

Press button 4 to output channel 2 continuously until button 4 is released.

CH3 OUTPUT

Press button 1+3 to output channel 3 continuously until button 1+3 is
released.

CH4 OUTPUT

Press button 2+4 to output channel 4 continuously until button 2+4 is
released.
©2008 The Hoffman Group International Ltd Co. All rights reserved.
The above instructions are for reference only. THGI is not responsible for any inaccuracies in the above instructions. THGI is also not responsible for any property damage or personal injuries resulting from
the above instructions. Installation by qualified automotive professionals is highly recommended.
WWW.AUTOLOC.COM

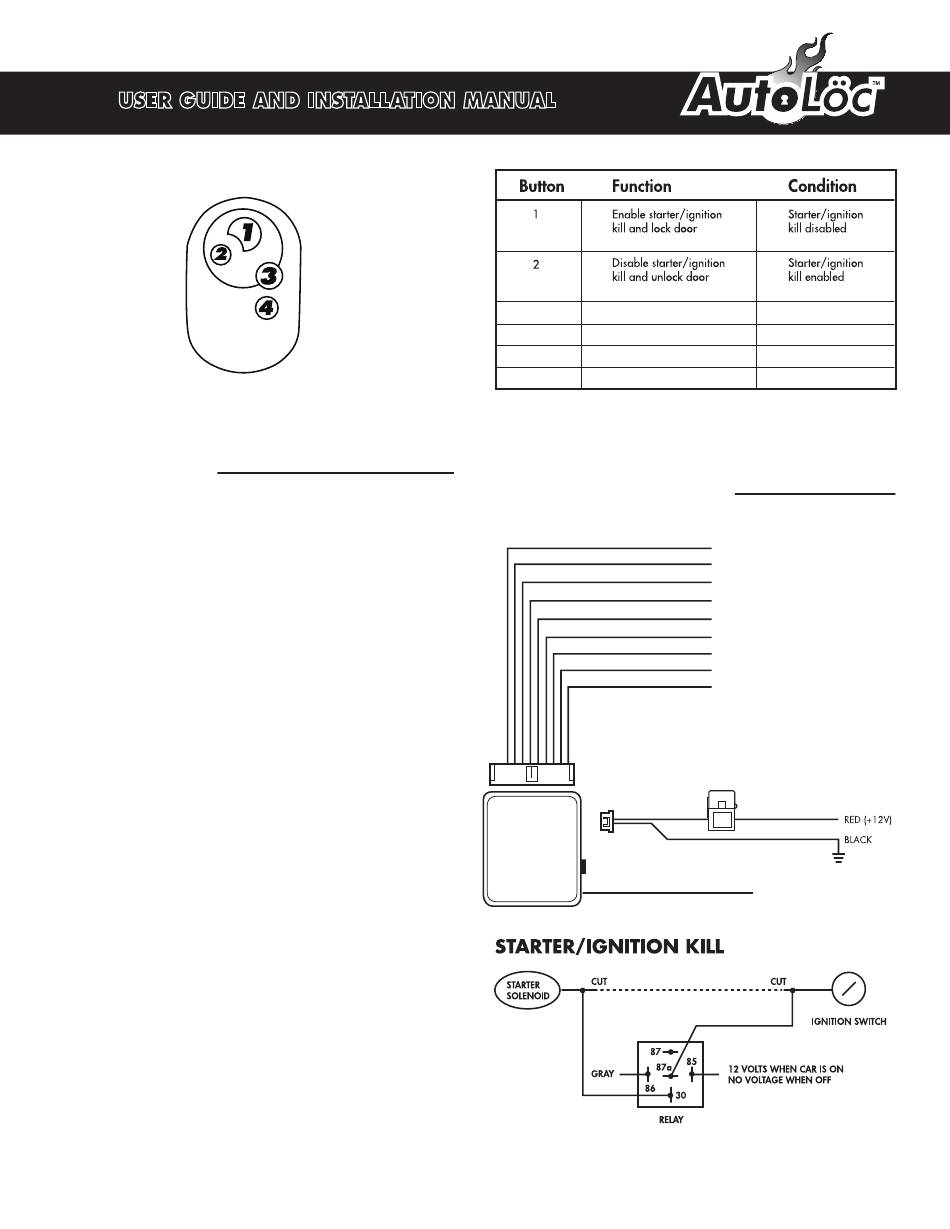

WIRING DIAGRAM
AUTKL600 1 of 2
Revised 11/05/2013
LOCK
UNLOCK
3
1st channel output
2nd channel output
4
1+3
3rd channel output
2+4
4th channel output
Connect to ground side of circuit.
2A FUSE

VALET SWITCH

ANTENNA
KL800
Anytime
Anytime
Anytime
Anytime
PURPLE/BLACK (CH4 – 500 mA)
GREEN/BLACK (CH3 – 500 mA)
YELLOW/BLACK (CH2 – 500 mA)
BROWN/BLACK (CH1 – 500 mA)
GREEN/WHITE (UNLOCK – 500 mA)
BLUE/WHITE (LOCK – 500 mA)
GRAY (STARTER/IGNTION KILL OUTPUT)
ORANGE (PARKING LIGHTS)
YELLOW (KEY ON ACCESSORY)
*ALL OUPUTS ARE NEGATIVE
Ground signals.
+
1.
