AutoLoc KL400 User Manual And Installation Manual

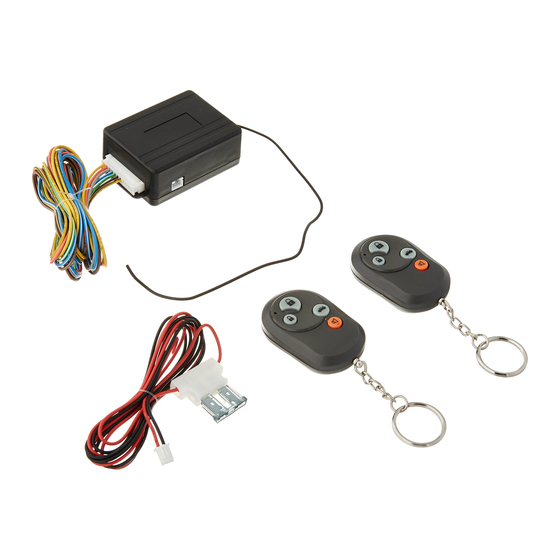

KEYLESS ENTRY SYSTEM
KL400
4 channel system
Remote Transmitter
(illustration may very from actual remote)

USER GUIDE

CODE LEARNING

a. Turn key to ON position (yellow ACC wire must be hooked up), press
valet button for 3 seconds. The parking lights will flash once to indicate
code learning mode. Press any button in order to learn the desired
remote. The parking lights will flash once for confirmation, after each
remote transmitter is learned. Up to 4 remote transmitters can be learned
at this time.
b. Turn key to OFF position or wait for 5 seconds and system will exit
code learning.

REMOTE DOOR LOCKING

a. Press button 1. The parking lights will flash once. The starter/ignition
kill circuit will be enabled and the lock output will pulse for 1 second or
until button 1 is released.
b. LED will begin flashing slowly.
REMOTE DOOR UNLOCKING
a. Press button 2. The parking lights will flash twice. The starter/ignition
kill circuit will be disabled and the unlock output will pulse for 1 second
or until button 2 is released.
b. LED will be off.
CH3 OUTPUT
Press button 3 to output channel 1 continuously until button 3 is released.
CH4 OUTPUT
Press button 4 to output channel 2 continuously until button 4 is released.
LOCK
UNLOCK
3 3rd channel output
4th channel output
4

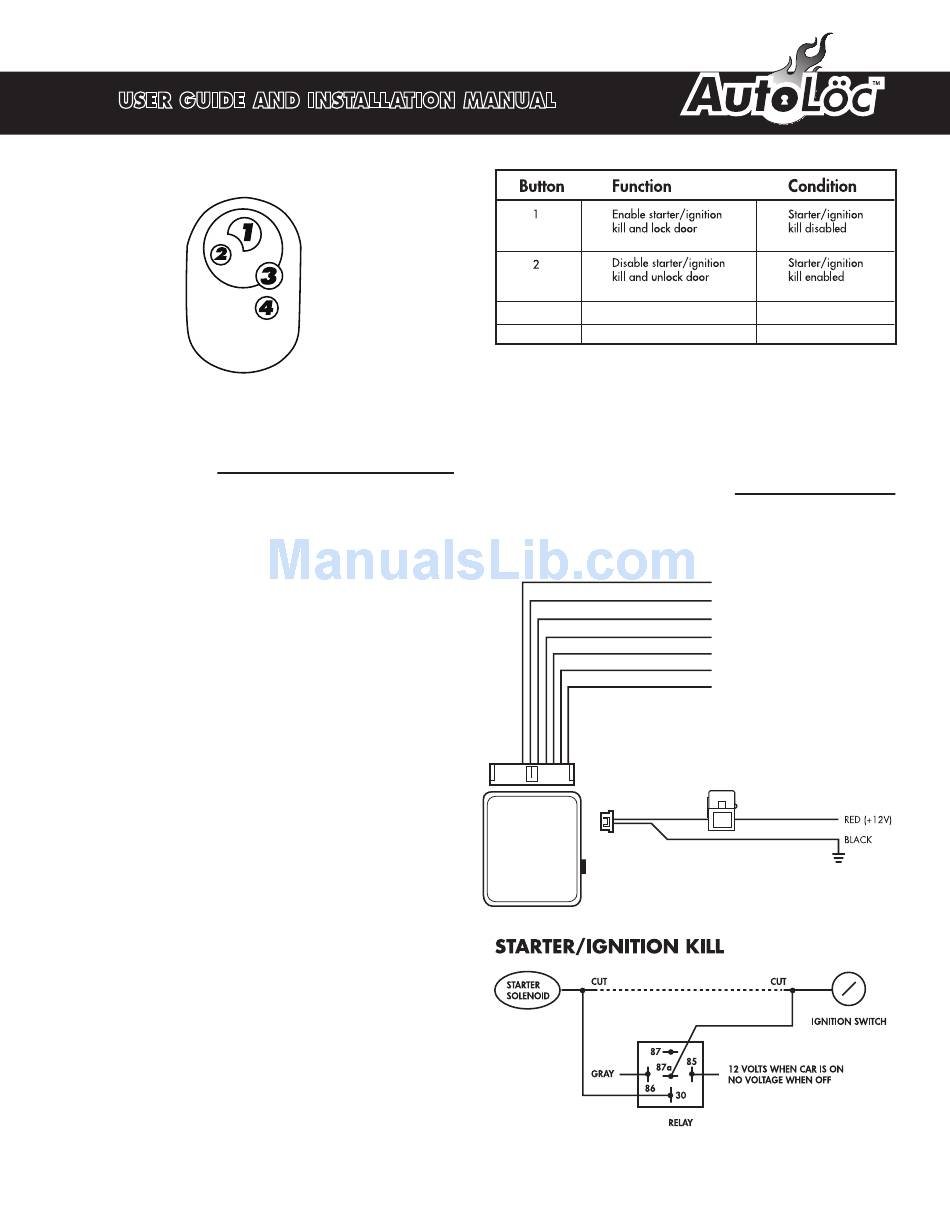

WIRING DIAGRAM

VALET SWITCH
KL400
Anytime
Anytime
YELLOW/BLACK (CH4 – 500 mA) - 4
BROWN/BLACK (CH3 – 500 mA) - 3
GREEN/WHITE (UNLOCK – 500 mA) - 2
BLUE/WHITE (LOCK – 500 mA) - 1
GRAY (STARTER/IGNTION KILL OUTPUT)
ORANGE (PARKING LIGHTS)
YELLOW (KEY ON ACCESSORY)
2A FUSE
+
