REMOTE/PUSH BUTTON START
AUTEC0
#54309
The AUTEC0 is indeed a fantastic device-
with one single button (or other input) you
can turn on your accessory circuit AND your
ignition, together or separate. The following
instructions will serve as a valuable guide
to the correct wiring of this amazing unit.
Unit Operation
Accessory Operation
1. Press button (blue input 1) for 1 second
to turn on accessory mode (radio, etc.).
2. Press button again (blue input 1) for 1
second to turn accessory mode off.
*
Trigger polarity (+/-) is selectable on
option 8 of the programming menu.
0 = negative
1 = positive
Starter/Ignition Operation
1. Press button (blue input 1) for more than 3
seconds. Ignition and accessory will activate
after 2 seconds, and starter will crank for a
programmed length of time.
2. To turn vehicle off, press and hold button
(blue input 1) for more than three seconds.
Setting Crank Duration
1. Press button 1 for 5 seconds. Display
will light.
2. Use buttons 2 and 3 to get display to
indicate the number 2.
3. Press button 1 once to confirm selected
time mode (3), then press button 2 or 3 to
select the desired output time in half-sec-
ond intervals. (cranking time)
4. Press button 1 once to confirm selected
output time.
5. Press button 1 once or wait ten
seconds and the device will exit time
setting mode.
Programmable Control Module
+12v
+12v
Starter
Numeric Display
Button1
Button2
Button3
IMPORTANT INFORMATION!
1
You must use relays on ALL outputs
except for Status LED output.
2
All outputs are negative trigger.

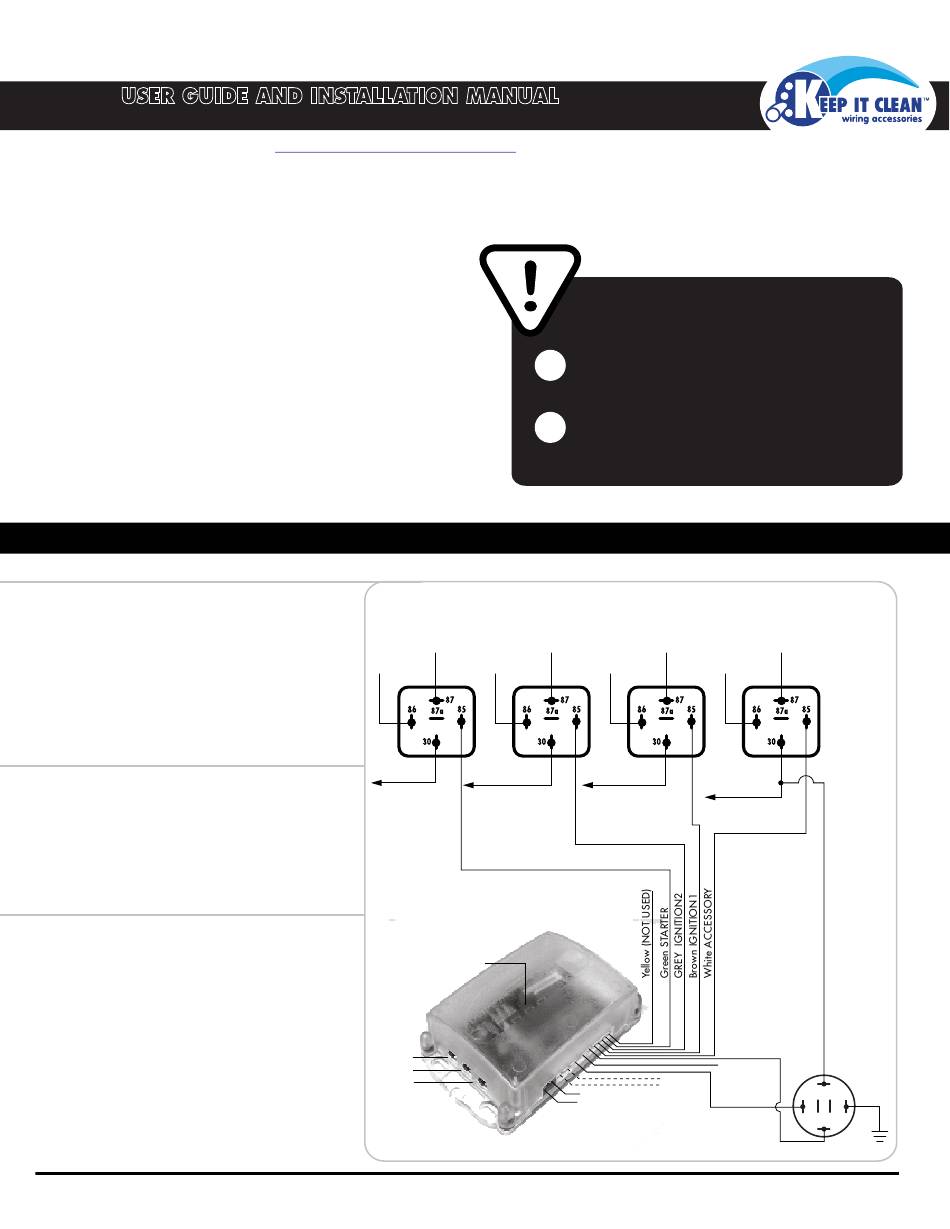

Device Diagram
+12v
+12v
+12v
+12v
Ignition2
Ignition1
Not Used
Black Ground
Red +12v
+12v
+12v
Accessory
Orange
Purple
LED +
(NOT USED)
Blue Input 1 (Button)
LED –

Advertisement

loading
Need help?

Need help?

Do you have a question about the AUTEC0 54309 and is the answer not in the manual?

Questions and answers

Summary of Contents for AutoLoc AUTEC0 54309

  • Page 1 REMOTE/PUSH BUTTON START Programmable Control Module AUTEC0 #54309 The AUTEC0 is indeed a fantastic device- IMPORTANT INFORMATION! with one single button (or other input) you You must use relays on ALL outputs can turn on your accessory circuit AND your except for Status LED output.
  • Page 2 REMOTE/PUSH BUTTON START Programmable Control Module AUTEC0 #54309 Time Settings 1. Press button 1 for five seconds to enter programming mode. Digital display will illuminate. 2. Press buttons 2 or 3 to scroll through modes. Press button 1 to choose the desired mod to change.
  • Page 3 REMOTE/PUSH BUTTON START Programmable Control Module AUTEC0 #54309 PUSH BUTTON START WITH STARTER OVERRIDE BUTTON Electrical Engine (AUTEC0) Control Module Push Button on column (optional) AUTHF500 NOT USED Black #5 Black #2 Yellow Red +12V Crank Green- Starter Ign. 2 Gray- Ign.
  • Page 4 REMOTE/PUSH BUTTON START Programmable Control Module AUTEC0 #54309 AUTECO & KEYLESS SAFETY RELAY +12v +12v +12v +12v +12v +12v +12v +12v Starter Ignition2 Ignition1 Accessory WHITE/BLACK (CH6 500mA) RED/BLACK (CH5 500mA) PURPLE/BLACK (CH4 500 mA) GREEN/BLACK (CH3 500 mA) YELLOW/BLACK (CH2 500 mA) BROWN/BLACK (CH1 500 mA)
