KL800

USER GUIDE

CODE LEARNING

a. Turn key to ON position (yellow ACC wire must be hooked up), press
valet button for 3 seconds. The parking lights will flash once to indicate
code learning mode. Press any button in order to learn the desired
remote. The parking lights will flash once for confirmation, after each
remote transmitter is learned. Up to 4 remote transmitters can be learned
at this time.
b. Turn key to OFF position or wait for 5 seconds and system will exit
code learning.

REMOTE DOOR LOCKING

a. Press button 1. The parking lights will flash once. The starter/ignition
kill circuit will be enabled and the lock output will pulse for 1 second or
until button 1 is released.
b. LED will begin flashing slowly.

REMOTE DOOR UNLOCKING

a. Press button 2. The parking lights will flash twice. The starter/ignition
kill circuit will be disabled and the unlock output will pulse for 1 second
or until button 2 is released.
b. LED will be off.

CH1 OUTPUT

Press button 3 to output channel 1 continuously until button 3 is released.

CH2 OUTPUT

Press button 4 to output channel 2 continuously until button 4 is released.

CH3 OUTPUT

Press button 1+3 to output channel 3 continuously until button 1+3 is
released.

CH4 OUTPUT

Press button 2+4 to output channel 4 continuously until button 2+4 is
released.

CH5 OUTPUT

Press buttons 1+2 to output channel 5 continuously until buttons 1+2 are
released.

CH6 OUTPUT

Press buttons 3+4 to output channel 6 continuously until buttons 3+4 are
released.
KL800 3/09/04 1/2
8 channel system
LOCK
UNLOCK
3
1st channel output
4
2nd channel output
1+3
3rd channel output
2+4
4th channel output
1+2
5th channel output
3+4
6th channel output

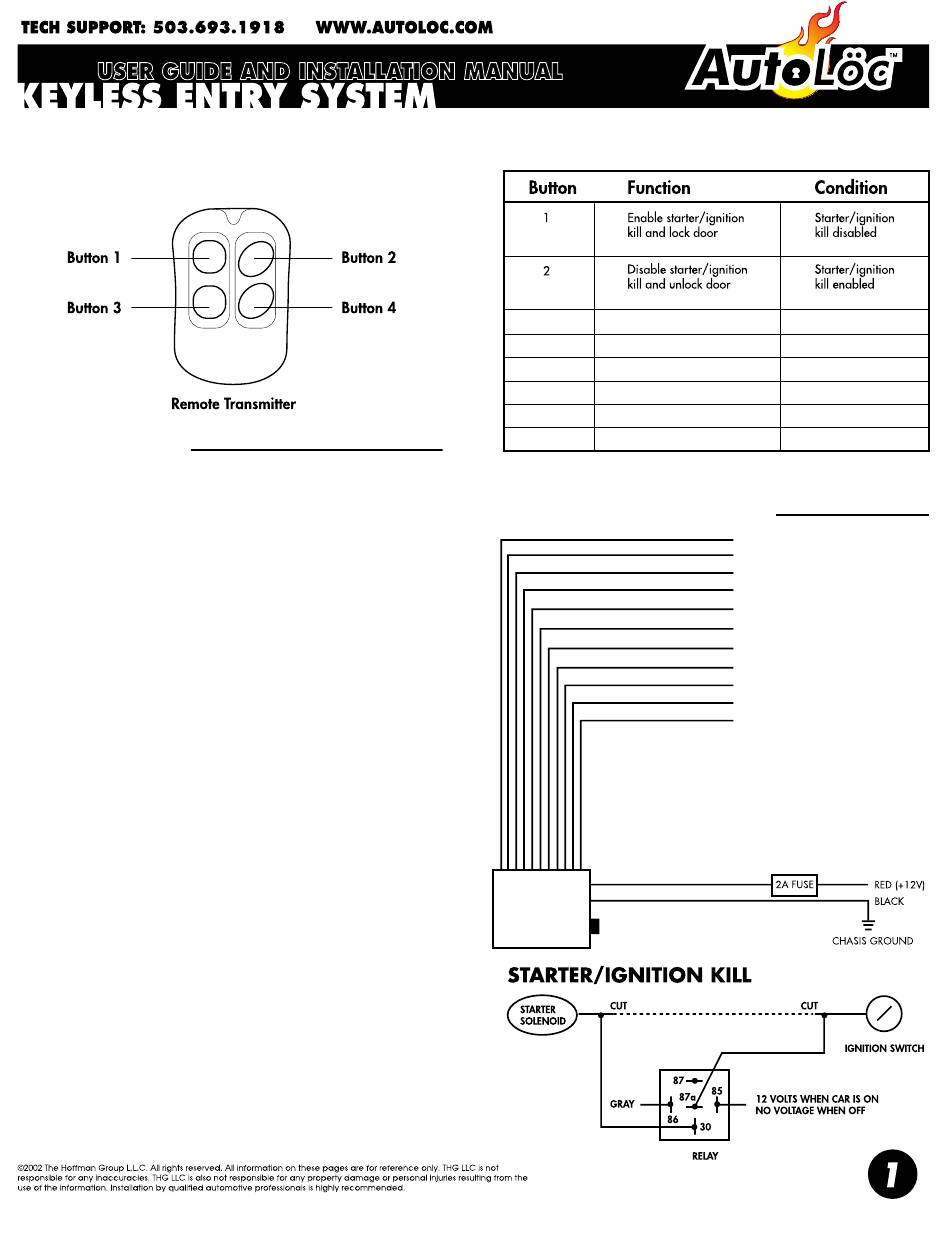

WIRING DIAGRAM

VALET SWITCH

KL800
Anytime
Anytime
Anytime
Anytime
Anytime
Anytime
WHITE/BLACK (CH6 - 500mA)
RED/BLACK (CH5 - 500mA)
PURPLE/BLACK (CH4 – 500 mA)
GREEN/BLACK (CH3 – 500 mA)
YELLOW/BLACK (CH2 – 500 mA)
BROWN/BLACK (CH1 – 500 mA)
GREEN/WHITE (UNLOCK – 500 mA)
BLUE/WHITE (LOCK – 500 mA)
GRAY (STARTER/IGNTION KILL OUTPUT)
ORANGE (PARKING LIGHTS)
YELLOW (KEY ON ACCESSORY)
+
