- A fixed IP address can be assigned.
Use the sensorTOOL program to specify the sensor settings
described above.
The program is available online at
TOOL.exe.

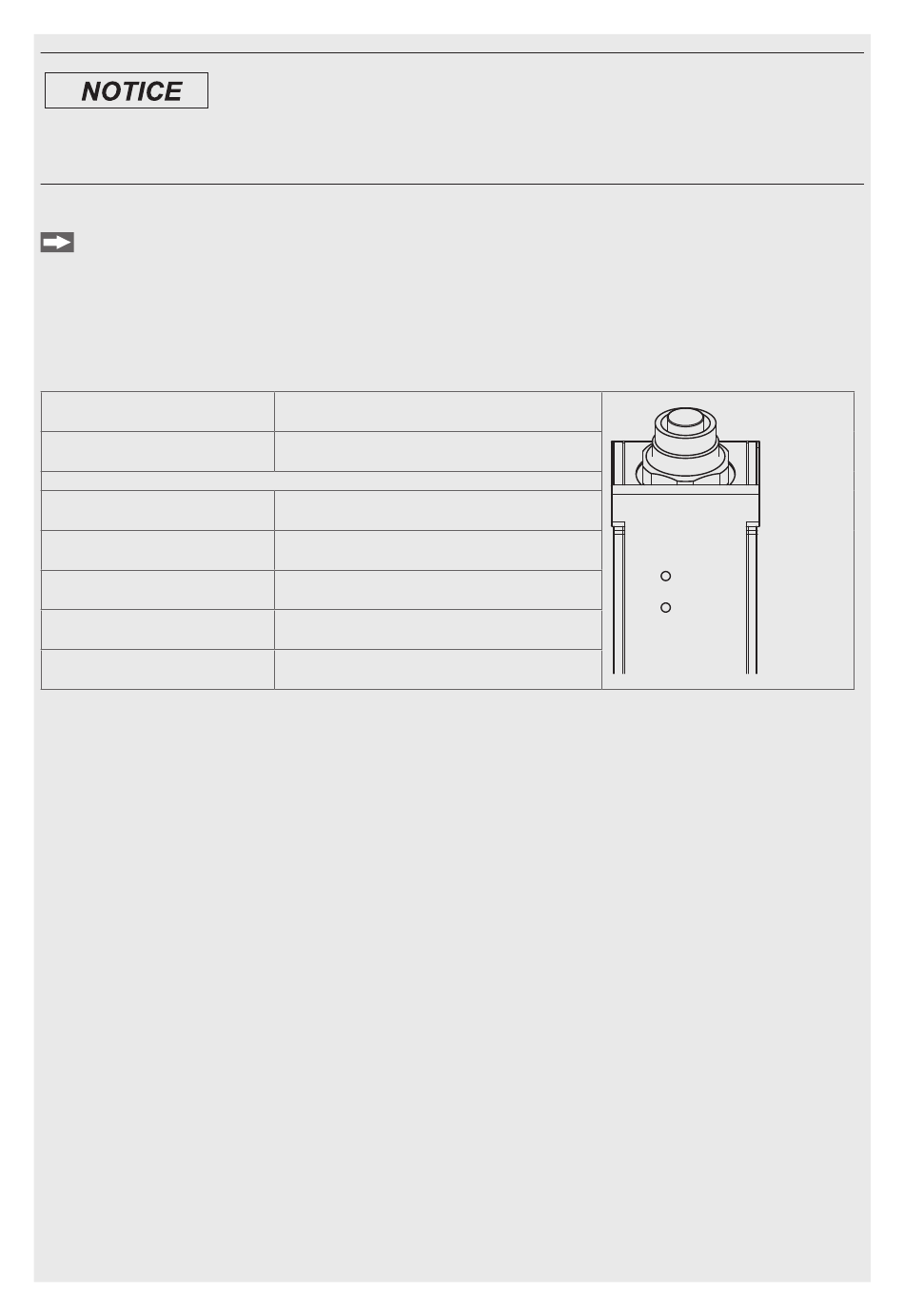

LED Indication
LED laser on
Green

LED state

Green
Green, flashes long
Green, flashes short
Red, flashes
6.
System Requirements
scanCONTROL Configuration Tools
The following minimum system requirements are necessary:
- Windows 7, Windows 8 or 8.1, Windows 10 (each 32 bit and 64 bit)
- 1 GHz processor or faster (32 bit and 64 bit) / 1 GB RAM (recommended 4 - 8 GB)
- Screen resolution: 1024 x 768 (recommended 1920 x 1080)
scanCONTROL 3D-View
The following minimum system requirements are necessary:
- Windows 8 or 8.1, Windows 10 (each 64 bit)
- 1 GHz processor or faster (64 bit)
- 1 GB RAM (recommended 16 GB)
- Screen resolution: 1024 x 768 (recommended 1920 x 1080)
- Graphics card / GPU with OpenGL 3.1 or higher
scanCONTROL 25xx
If the sensor is connected to a POE-capable network adapter/
switch and you also use the power supply of the multifunction
port, these two power supplies must be galvanically isolated.
> Damage to the sensor and/or Ethernet card!
www.micro-epsilon.com/download/software/sensor-
Meaning
Laser is on
Meaning
Measurement is active
Data transmission is active
Controller is accessing laser
Error code
laser on
state
