Chemitec METER Quick Start Manual

Technical Data

Housing material:
Mechanical installation:
Protection degree:
Electrical connection:
Working temperature: -30 ÷ +70°C; +80°C non-continuous
-20 ° to +60 ° C for ATEX certified vers.
Pressure:
Power supply:
Power consumption: 2-wire max 0,6W / 4-wire max 1,5W
Analog output:
Relays output:
Digital communication:
Max measure range:
[In case of non perfectly reflecting surfaces, the maximu distance
value will be reduced]
Blind distance: 0,25m (5m vers.) / 0,40m (8m vers.)
Temperature compensation:
Accuracy: ±0,2% (of the measured distance)
Resolution:
Calibration: 4 buttons or by HART/MODBUS RTU
Warm-up:
LCD Display: Plug-in display/keyboard 4 buttons matrix LCD
Ex-proff:
Warranty
Products supplied by the Company are guaranteed for a period of 12 (twelve) months from delivery date according to the
conditions specified in our sale conditions document.
The Company can choose to repair or replace the Product.
If the Product is repaired it will mantein the original term of guarantee, whereas if the Product is replaced it will have 12
(twelve) months of guarantee.
The warranty will be null if the Client modifies, repair or uses the Products for other purposes than the normal conditions
foreseen by instructions or Contract.
In no circumstances shall the Company be liable for direct, indirect or consequiential or other loss or damage whether
caused by negligence on the part of the company or its employees or otherwise howsoever arising out of defective goods
Factory Test Certificate
In conformity to the company and check procedures I certify that the equipment:
METER
...................
Serial n. .......................................................
is conform to the technical requirements on Technical Data and it is made in conformity to the Company procedure
Quality Control Manager

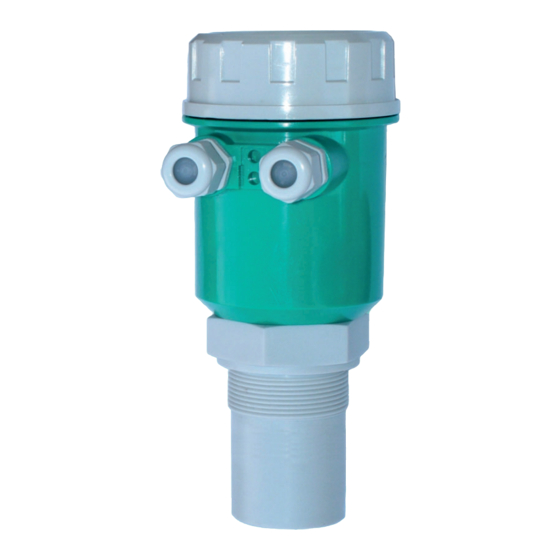

Ultrasonic level transmitter
PC or Al / PP wetted part
(PVDF for ATEX certified vers.)
2"GAS M (PP flange DN80 opt.)
Internal push connectors
from 0,5 to 1,5 bar (absolute)
2-wire: 20÷30 Vdc / 4-wire: 24Vdc
4÷20mA, max 750ohm (4-wire)
(4-wire only) n°2 3A 230Vac (n.o.)
MUDBUS RTU for 4-wire vers.
(opt.) HART for 2-wire vers.
max 0.25÷5m
max 0.4÷8m
digital from -30 to 80°C
not better than ±3mm
5 minutes
ATEX II 1/2G Ex ia II C T6
Production and check date:
.................................
METER
IP67
1mm
typical
................................
