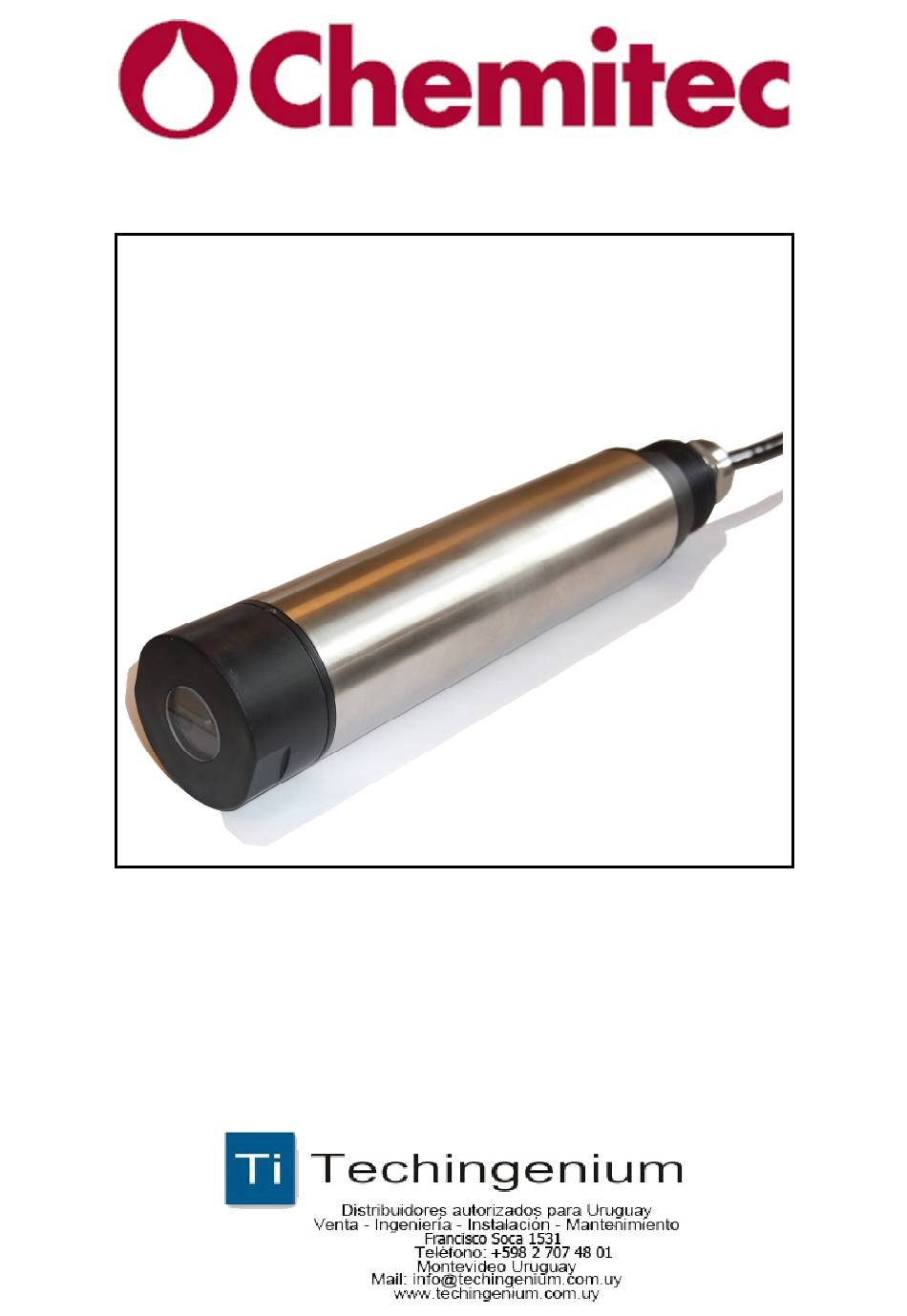

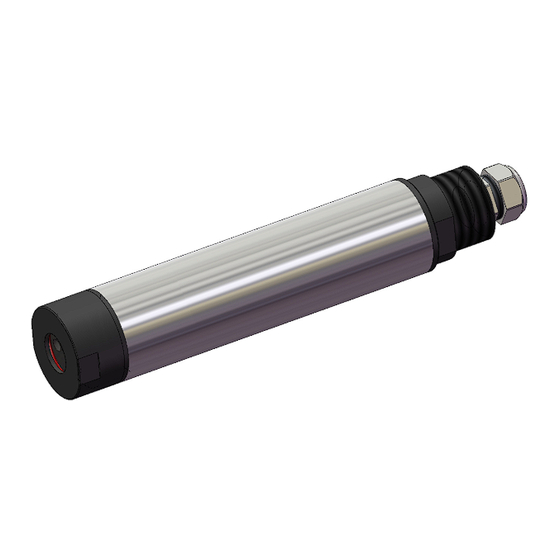

- Page 1 S461/T SONDA DI TORBIDITA’ A INFRAROSSI INFRARED TURBIDITY PROBE MANUALE TECNICO / TECHNICAL MANUAL P/N: …………………. Rev. 0 Ver. 1.0 EDIZIONE Febbraio 2014 / EDITION February 2014...
- Page 2 The measured scattered light signals are converted to frequency signals. The frequency signals are assigned to corresponding turbidity units and solid matter concentrations, and appear in the display. Principle of 90° scattered beam Measurement: S461T Infrared Turbidity Probe – Data Sheet Page 9...
- Page 3 Composition of the supply The supply consists of a single package containing the following parts: 1. 1 S461/T Sonda Torbidità ad infrarossi con 10 metri di cavo 2. 1 Technical manual for instruction S461T Infrared Turbidity Probe – Data Sheet Page 10...
- Page 4 Install the probe in the channel so that it is immersed for at least 20 cm and the distance from walls and bottom of the channel is not less than 20 cm. S461T Infrared Turbidity Probe – Data Sheet Page 11...
- Page 5 Anchoring to poolside devices Protection top Measuring Unit Insole pedestal h=600mm Insole pedestal h=1700mm Wall bracket D42 Probeholder Extension L=700mm D42 Probeholder bracket S461T Turbidity Probe S461T Infrared Turbidity Probe – Data Sheet Page 12...
- Page 6 (5) and O-rings (6), then screw the M12 superior bolts (4) to the stop poles (3). Repeat this procedure with the M16x60 bolts (8), then tighten the corresponding M16 Nuts (9). S461T Infrared Turbidity Probe – Data Sheet Page 13...
- Page 7 Precautions for installation in pipeline S461T Probe Necessary space for disassembly Revolvable Necessary space for nipple welding and valve assembly Attention: measures refer to the inside part of the pipe S461T Infrared Turbidity Probe – Data Sheet Page 14...
- Page 8 Order codes 9700590063 S461T turbidity sensor immersion style 10m cable 9720590063 S461T turbidity sensor immersion style 10m cable with RS485 output 9730590063 S461T/INS Turbidity sensor insertion style 10m cable with socket 9740590063 S461T PVC Turbidity sensor immersion style special Oring 10m cable...
