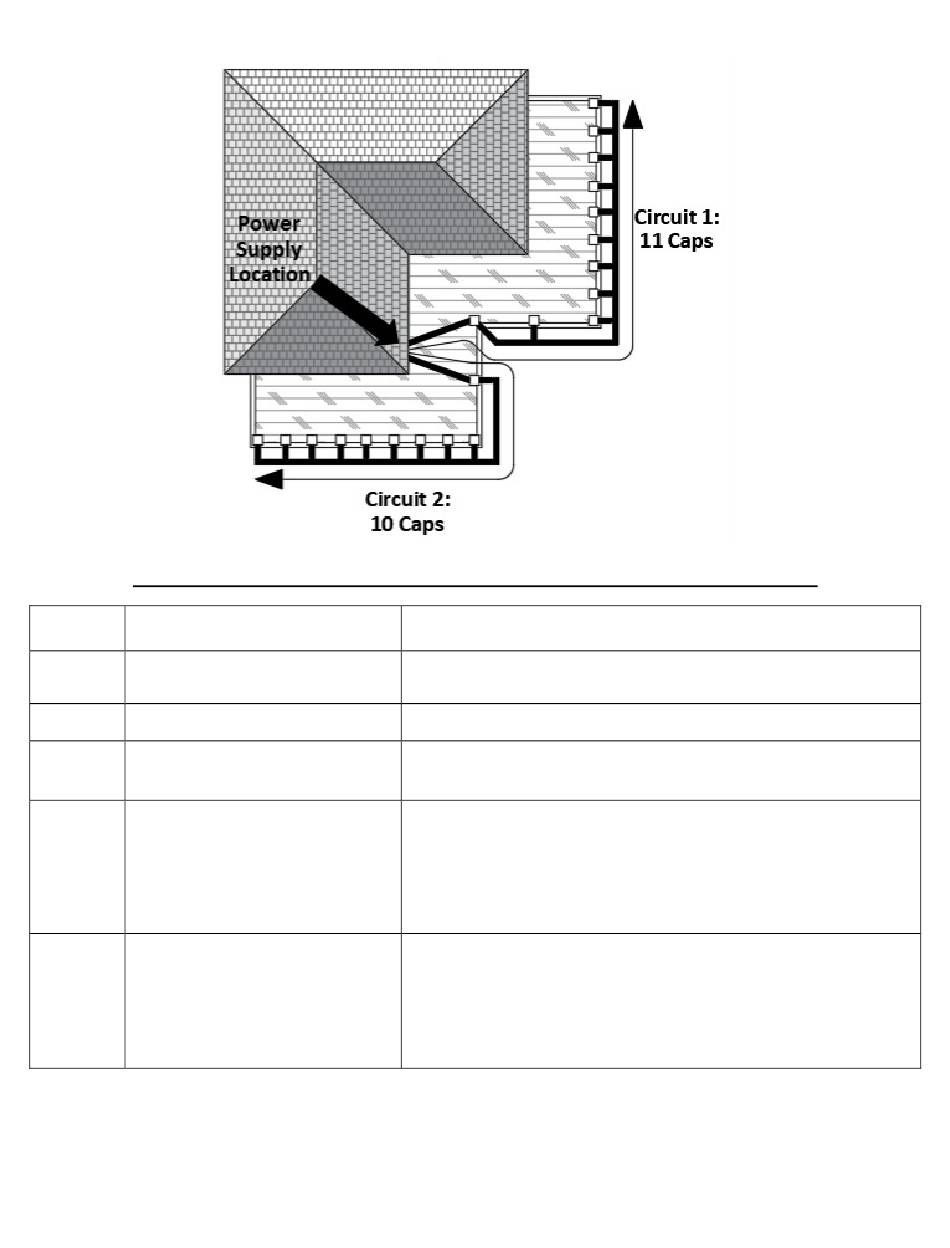

Typical Lighted Cap Material Take-Off for Deck Example Above

Suggested
Item with INTEX SKU
Quantity
1
Transformer (LEDPOWER-150)
1
Timer & PhotoCell (LEDPOWER-TP) This item is optional but recommended
21
Lighted Flat Caps (LED-NCFLAT5)
100' Spool of Conductor Wire
3
(LEDWIRE100)
2-Pack Self-Stripping Sealing Gel
4
Connectors (LEDSPLICE)
Description
150W unit can support 40 total Lighted Caps across 4 separate
circuits
Also available in Pyramid; includes 9" Connection Wire and 2 Gel
Connectors
16 Gauge 2 Conductor Wire (Assuming "Through Rail" Installation)
For "Through Rail" Installation, assume 10' of wire required
for every 8' section
For "Under Deck / "Through Post" Installation, assume 20'
of wire required for every 8' section
This item is optional but recommended
Although 2 Gel Connectors are supplied with purchase of
each Lighted Cap, it is recommended to purchase a few
extra, as the connector is a "1-time use" item. Once the
connector has been used and attached, it cannot then be
removed and reused.
LEDINST | REV B
