Bulletin TI-N2-04K
Technical Information
Installation, Operation, and Maintenance Manual
Parker Balston
General Description
Engineered System
Oxygen Monitoring
!
Bulletin TI-N2-04J
Model N2-04 Nitrogen Generator
®

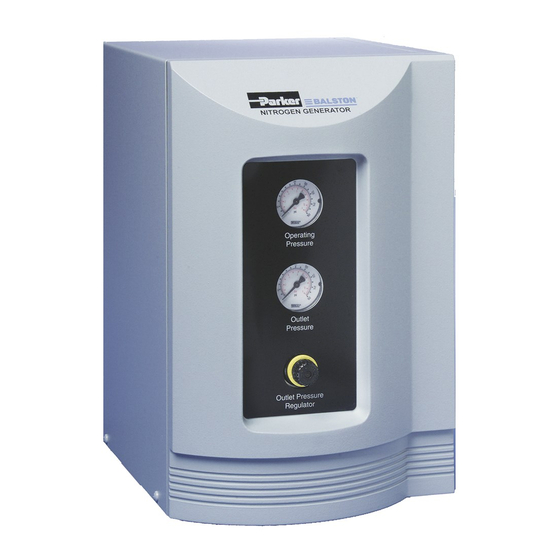

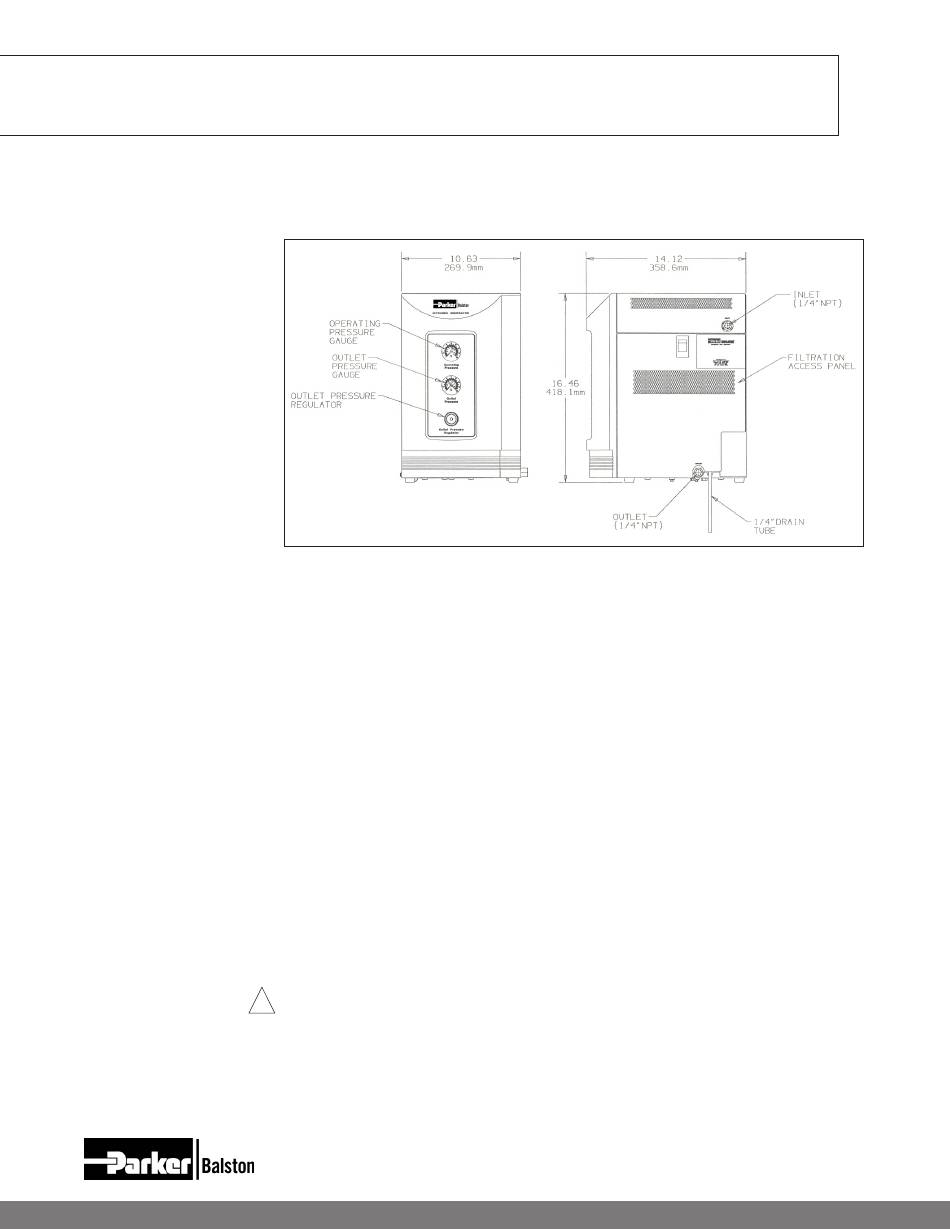

Figure 1 - N2-04 Nitrogen Generator
These instructions must be thoroughly read and understood before installing and operating
this product. Failure to operate this product in accordance with the instructions set forth
in this manual and by other safety governing bodies will void the safety certification of this
product. If you have any questions or concerns, please call the Technical Services Depart-
ment at 800-343-4048, 8 AM to 5 PM Eastern Time or email at balstontechsupport@parker.
com. For other locations outside North America, please contact your local representative.
The Parker Balston N2-04 Nitrogen Generator is a completely engineered system which will
convert a compressed air supply into 95% to 99% purity compressed nitrogen. The system
is based on state-of-the-art membrane separation technology. Hollow fiber membranes
are used to separate air into a concentrated nitrogen output stream and an oxygen enriched
permeate stream.
The N2-04 Nitrogen Generator includes all the components required to convert compressed
air into high purity nitrogen (see Figure 1). The user need only connect a supply of com-
pressed air to the inlet of the nitrogen generator and connect the outlet of the generator to
the process requiring high purity nitrogen.
The flow schematic on page 2 (Figure 2) shows all of the major components of the system.
The system can be broken down into four primary functional groups. These are: prefiltration,
air separation, controls, and final filtration.
In hazardous applications where the oxygen content in nitrogen is critical (i.e. blanketing
explosive chemicals or packaging food for extended shelf life), an oxygen monitor or trace
analyzer should be used in conjunction with safety interlocks and/or alarm systems to as-
sure proper nitrogen purity levels at all times.
Installation, Operation and Maintenance Manual
Model N2-04 Nitrogen Generator
Parker Hannifin Corporation
1
Industrial Gas Filtration and Generation Division
Lancaster, NY • 1-800-343-4048
Advertisement
Table of Contents
Related Manuals for Parker Balston N2-04
Summary of Contents for Parker Balston N2-04
- Page 1 For other locations outside North America, please contact your local representative. General Description The Parker Balston N2-04 Nitrogen Generator is a completely engineered system which will convert a compressed air supply into 95% to 99% purity compressed nitrogen. The system is based on state-of-the-art membrane separation technology.
-
Page 2: Installation
Model N2-04 Nitrogen Generator Prefiltration Two stages of coalescing prefiltration are incorporated into the N2-04 Nitrogen Generator to protect the membrane module from contamination . These filters are located behind the filtration access panel, and they remove liquids and particulate matter from the incoming air supply. The filters are equipped with float drains which automatically open to empty any liquids which accumulate inside the filter housing. - Page 3 Operation/Adjustment Procedures Startup The inlet and outlet connections to the N2-04 Nitrogen Generator must be checked for leaks prior to system start-up. After the system is properly installed and checked for leaks, the inlet valve can be opened to introduce compressed air to the system.
-
Page 4: Shutting Down
Technical Information Model N2-04 Nitrogen Generator Elevated Pressure If the N2-04 Nitrogen Generator is being used to deliver nitrogen at an elevated pressure Applications (>10 psig/0.7 barg), use the following procedure for start-up and adjustment of the system. (Note: (>10 psig/0.7 barg) in elevated pressure applications, the customer should install a flow controller downstream from the Nitrogen Generator, as detailed in the Installation section of this manual). -
Page 5: Filter Cartridge Replacement
Consult the manufacturer for procedure and frequency of calibration. Cleaning The product is not intended for use in extremely dirty environments. If necessary, the N2-04 Nitro- gen Generator may be wiped clean with a dry cloth on an as needed basis. - Page 6 Installation, Operation and Maintenance Manual Bulletin TI-N2-04K Technical Information Model N2-04 Nitrogen Generator Balston Nitrogen Model Number N2-04 Generation System CSA Certification Standard CSA 22.2 No. 61010-1-12 Purity (% Nitrogen) 95% to 99%, 90 psig (6.2 barg) Atmospheric Dewpoint -58°F (-50°C) Particles >...
- Page 7 Installation, Operation and Maintenance Manual Bulletin TI-N2-04K Technical Information Model N2-04 Nitrogen Generator All troubleshooting and service activities should be performed by suitable personnel using reasonable care. Symptom - Nitrogen Generator Course of Action Loss of Outlet Pressure Check that the flow control valve on the generator is fully open and control the flow with a valve at the process.
- Page 8 Installation, Operation and Maintenance Manual Bulletin TI-N2-04K Technical Information Model N2-04 Nitrogen Generator © 2004, 2015 Parker Hannifin Corporation Printed in U.S.A. Bulletin TI-N2-04K Parker Manufacturing (UK) Ltd Parker Hannifin Corporation Industrial Gas Filtration and Generation Division Gas Separation & Filtration Division EMEA...
