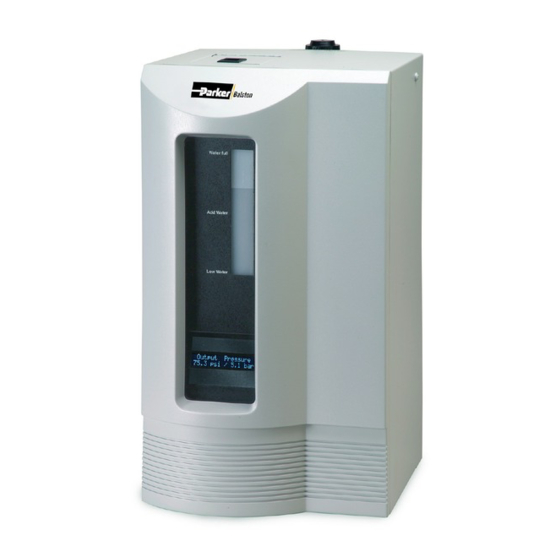

- Page 1 Installation, Operation and Maintenance Manual Bulletin TI-H2PD-K H2PD-150 and H2PD-300 Hydrogen Generators Parker Balston H2PD-150 and ® H2PD-300 Hydrogen Generators Installation, Operation, and Maintenance Manual 1-800-343-4048 www.parker.com/igfg...
-
Page 2: Quick Start Instructions
Parker Balston ® Quick Start Summary, Models H2PD-150 and H2PD-300 This Quick Start Summary is designed to get the Parker Hydrogen Generator up and running quickly. This is not intended to replace the full instructions. Please read this entire manual. - Page 3 The outlet pressure of the hydrogen generator is adjustable, and the generator can deliver hydrogen at pressures up to 60 psig (4.1 barg). The H2PD-150 has a hydrogen delivery capacity of 150 cc/min., and the H2PD-300 has a hydrogen delivery capacity of 300 cc/min. The high quality of the hydrogen produced by the Parker Balston Hydrogen Generators makes them a valuable addition to the analytical laboratory. The generators are ideal for use with high sensitivity Flame Ionization Detectors (FID’s),...
-
Page 4: Units Selection
The electrolytic dissociation of water to produce hydrogen and oxygen takes place in the electrolytic cell of the Parker Balston Hydrogen Generator. The operational components of the cell are the anode and cathode. The anode is nickel. The cathode is palladium, formed into tubes. (See “Palladium Membrane”... -
Page 5: Startup Screen
50 ml), a hydrogen production control circuit, an electrolyte leak detector, an over temperature sen- sor, a pressure sensor, and a low water shut-off control (see Figure 2). As a result of the minimal storage capacity and other safety features (detailed later in this text), the Parker Balston Hydrogen Generators comply with OSHA hydrogen safety requirements. The Parker Balston Hydrogen Generators have built-in system diagnostics that monitor the opera- tion of the generator and display its operational status to the user. -
Page 6: Control Circuit
The generator will re-start and the audible signal will be reset as soon as deionized water is added and the water level rises over the “Low Water” level mark. The Parker Balston Hydrogen Generator will run for 8-10 days (depending on ambient temperature, flow demand, etc.) at maximum flow on a full water bottle, before the “Add Water”... -
Page 7: Installation
Shutdown section of this manual.) Utilities Power - The Parker Balston Hydrogen Generator may be operated by a 120 VAC or a 230 VAC, 50/60 Hz power supply. (Note: Main supply line voltage must be within ±10% of the nominal rated voltage for the generator.) See product label on the rear panel of the hydrogen generator for... -
Page 8: Operation
To ensure safe operation of and prevent potential damage to the Parker Balston Hydrogen Generator, do not vent multiple generators in a common line to an exhaust hood. Pipe each generator vent separately to the exhaust hood. -
Page 9: Manual Filling
Installation, Operation and Maintenance Manual Bulletin TI-H2PD-K H2PD-150 and H2PD-300 Hydrogen Generators Install ship kit as shown: A. Insert plug into bottle fill opening B. Install cap over plug and tighten C. Install yellow plug in vent tube and stick label over... -
Page 10: Temporary Shutdown
Troubleshooting and Service section of this manual for further instructions. Temporary Shutdown To maximize the life of the palladium membrane, the Parker Balston Hydrogen Generator should be run continuously. If the hydrogen generator must be shut down for short periods of time (e.g., over- night), leave the power switch in the “on” position, and move the hydrogen output switch to the “OFF” position. Shutting the unit down in this manner will minimize water and energy consumption. -
Page 11: Electrolyte Solution
Installation, Operation and Maintenance Manual Bulletin TI-H2PD-K H2PD-150 and H2PD-300 Hydrogen Generators To re-start the Parker Balston Hydrogen Generator after a temporary shutdown, switch the hydro- gen outlet valve to “Auto”, set the hydrogen output pressure to the desired reading, and adjust the flow using the (customer-provided) flow control device. If the cell has cooled during the shutdown period, the hydrogen generator will require 2 to 4 hours to achieve its specified hydrogen flow rate. -
Page 12: Fuse Replacement
The procedure for changing the electrolyte is as follows: Turn off the Parker Balston Hydrogen Generator, disconnect it from the power supply, and allow it to cool for four hours, preferably overnight. Remove the back panel from the unit by removing the four panel screws. -
Page 13: Principal Specifications
Parker Balston Hydrogen Gas Generator, 300 cc/min, 230 VAC 50/60 Hz, IEC Connector (1) H2PD-150JA-100 Parker Balston Hydrogen Gas Generator, 150 cc/min, 100 VAC, 50/60 Hz, JA 100 cord set (1) H2PD-300JA-100 Parker Balston Hydrogen Gas Generator, 300 cc/min, 100 VAC, 50/60 Hz, JA 100 cord set (1) - Page 14 Installation, Operation and Maintenance Manual Bulletin TI-H2PD-K H2PD-150 and H2PD-300 Hydrogen Generators All troubleshooting activities should be performed by suitable personnel using reasonable care. Warning: Any troubleshooting or service activity which requires removal of the generator cover should be done using extreme caution. Exposed AC may be present.
- Page 15 Installation, Operation and Maintenance Manual Bulletin TI-H2PD-K H2PD-150 and H2PD-300 Hydrogen Generators Don’t Forget To: 1 Complete and mail or fax in your warranty registration card. 2 Keep your product certification in a safe place. 3 Call the Technical Services Department at 800-343-4048, 8AM to 5PM Eastern Time (North America only) with any questions. For other locations, please contact your local representative. Serial Numbers The serial number for the unit is attached to the back panel. For your own records, and in case service is required, please record the following: DATE IN SERVICE SERIAL NO.
- Page 16 Installation, Operation and Maintenance Manual Bulletin TI-H2PD-K H2PD-150 and H2PD-300 Hydrogen Generators Symbol Description Caution, refer to accompanying documents for explanation. Refer to the caution/warning note indicated for explanation. Caution, risk of electric shock. © 2005, 2014 Parker Hannifin Corporation Printed in U.S.A. Bulletin TI-H2PD-K Parker Hannifin Corporation Parker Hannifin Manufacturing Limited...
Need help?
Do you have a question about the H2PD-150 and is the answer not in the manual?
Questions and answers
Генератор водородаParker Balston заблокировался, что делать, помогите пожалуйста
If the Parker Balston H2PD-150 hydrogen generator is locked, the following steps should be taken based on the possible error messages:
1. If the display shows "High Pressure":
- Open the output valve.
- Set the pressure to zero.
- Wait 1–2 minutes.
2. If the display shows "Check Cell":
- Consult the factory for assistance.
3. If the display shows "High Temperature" and the generator is within 3 months of the annual electrolyte replacement date:
- Change the electrolyte.
- Consult the factory if needed.
These steps may resolve the lock condition depending on the cause.
This answer is automatically generated
My hydrogen generator has the Add Water error. But the water in the generator is still full. Can you assist?
If the "Add Water" error appears on a Parker Balston H2PD-150 hydrogen generator despite the water level being full, try the following steps:
1. Check the Water Level Sensor – Ensure the sensor is clean and functioning properly.
2. Reset the Generator – Turn off the generator, wait a few minutes, and restart it.
3. Verify Water Quality – Use only deionized water to prevent sensor or system issues.
4. Inspect for Leaks – Check internal and external piping for any leaks that may cause incorrect readings.
5. Consult Technical Support – If the issue persists, contact Parker Balston technical support for further assistance.
These steps should help resolve the issue.
This answer is automatically generated
