Connection Details

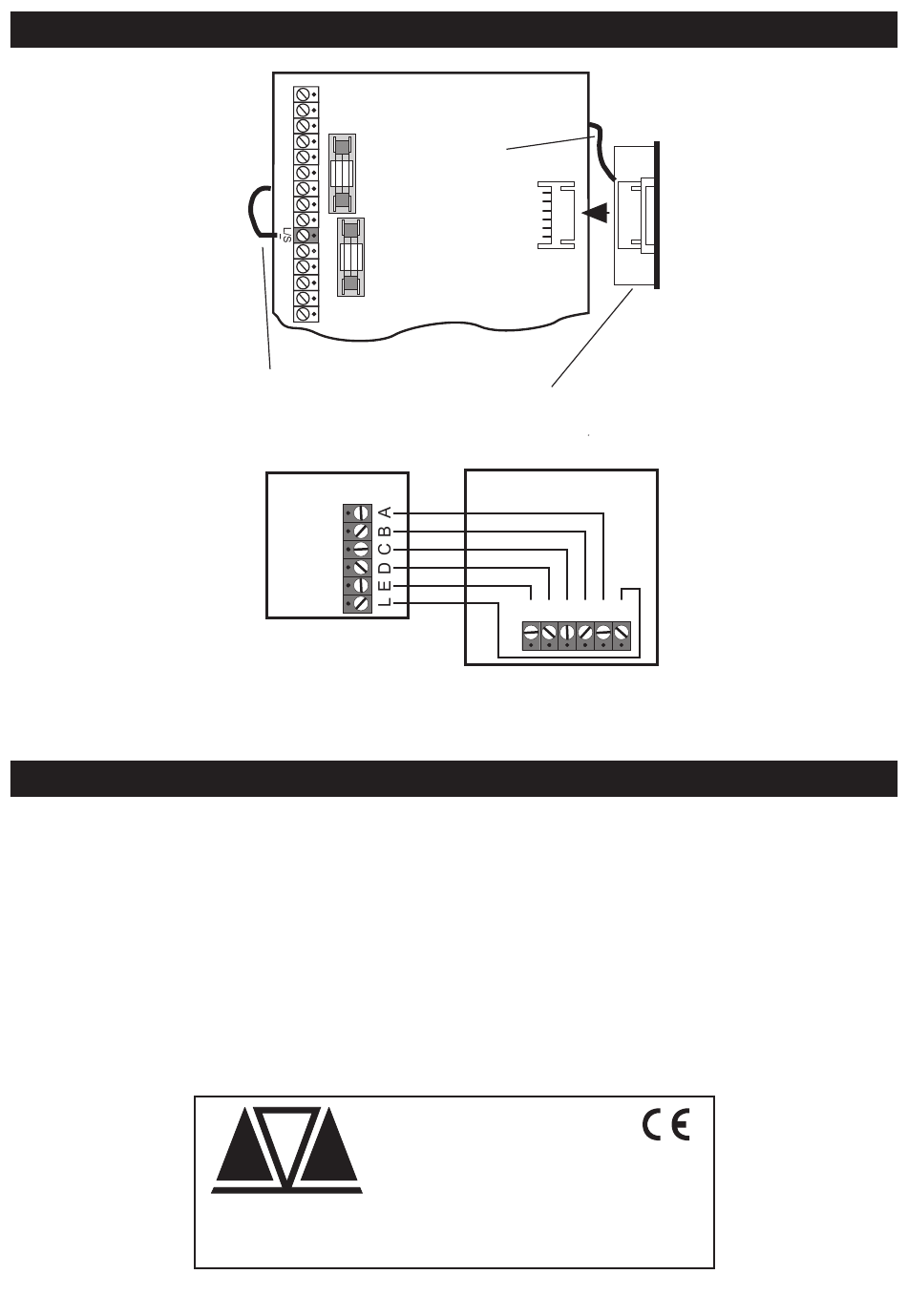

Figure 1 Remote Keypad Connection Details

Testing

Reconnect mains power and battery, and replace the control panel front cover. Test the
operation of the remote keypad as follows:
At the remote keypad, enter the first 3 digits of "User 1" passcode then [HOME], this will
1.
select "User Function" mode, indicated by the UNSET Led flashing.
Press [1] to select the "Bell Test" option, all indicators Leds should light and the internal
2.
sounder will sound. Press [AWAY] to abandon the test, the system will return to the unset
condition.
3. Remove the cover of the remote keypad and check that a tamper alarm occurs.
4. Replace cover and enter all four digits of "User 1" passcode to silence tamper alarm and
enter passcode again to reset alarm.
18625
Flying-lead
connected to L/S -
Interface PCB
MENVIER
SECURITY
Flying-lead
Interface PCB
Remote Keypad
E D C B A L
