Summary of Contents for extraspace expandakabin

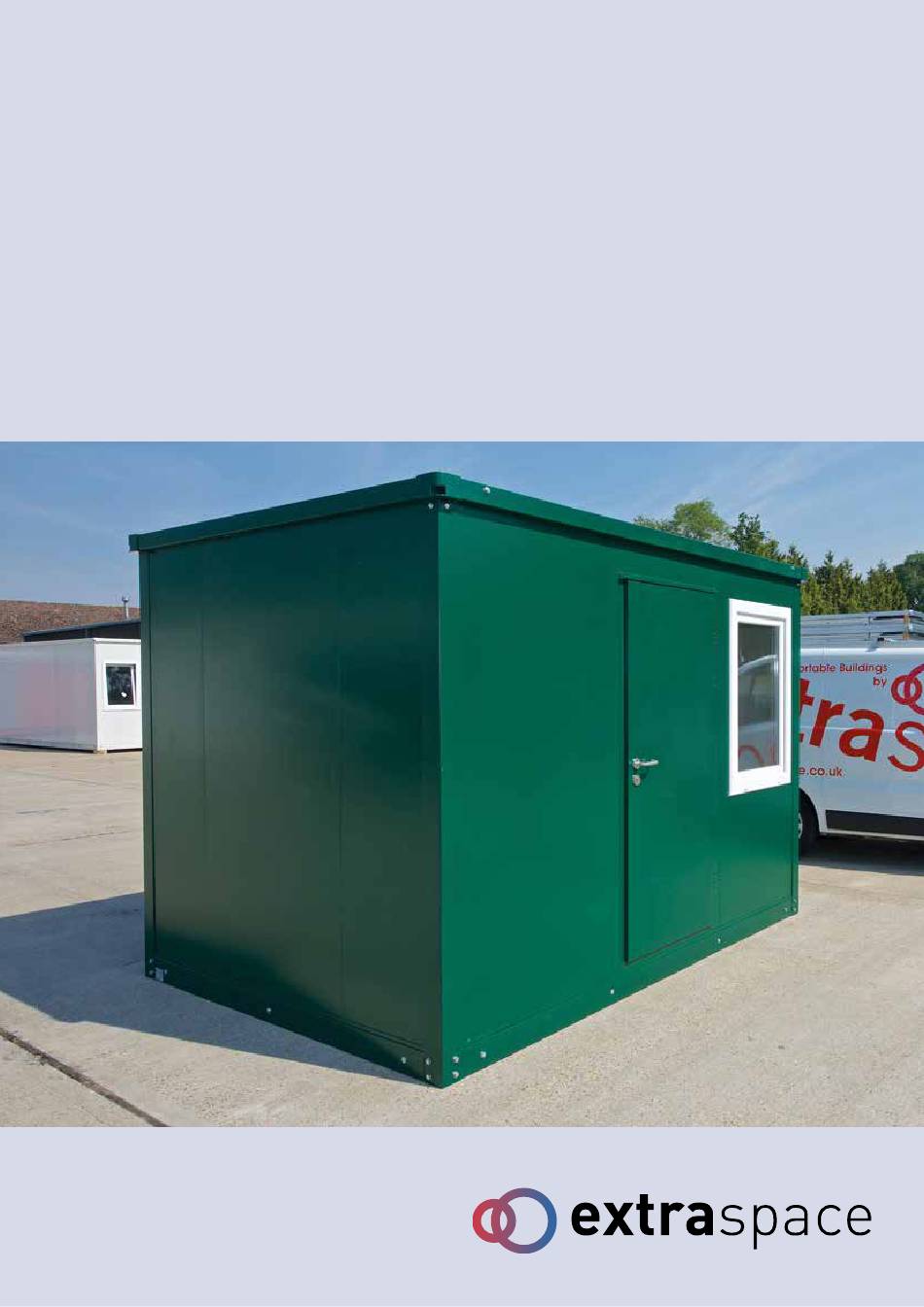

- Page 1 Assembly Instructions...
- Page 2 Assembly Instructions General assembly instructions • Read instructions thoroughly before commencing assembly • For best results assemble on level, solid ground or it may affect alignment of the wall and ceiling panels • On initial assembly, hand tighten all nuts and bolts then once full assembly has been completed, tighten again with socket/spanner •...
- Page 3 STEP Lift off the roof section and place to one side, allowing for space to assemble your Expandakabin. STEP Remove the 4 corner sections by unscrewing the x4 19mm bolts on each.
- Page 4 IMPORTANT INFORMATION If your Expandakabin has been delivered and sited in the place where it will be used, ignore steps 5 and 6 and do not disassemble the floor chassis. If you need to carry the Expandakabin components to a new location and would prefer to break them down into more manageable sizes, follow steps 5 and 6.
- Page 5 STEP Relocate Expandakabin to the desired location (ensure flat solid ground) and reverse the process by slotting the x3 sections back together and re-using the bolts and washers.
- Page 6 The outer rounded corner support section is then bolted in place using x4 19mm bolts. This forms a channel on each side for the side panels to fit into. STEP Remove the protective plastic membrane from all the side panels. www.extraspace.com...
- Page 7 Install a steel panel joining strip by slotting it against the wall panel. Install the remaining wall panels in place to complete the back wall, repeating the process of using the joining strips for each panel. These will slot in place and require no fixing. Expandakabin Assembly Instructions V2...
- Page 8 7. STEP Install the long edge top ring beam which supports and holds the wall panels in place. Align the protruding pin with the hole and push in place to secure. (Note image showing which holes to use.) www.extraspace.com...
- Page 9 Now install one of the end walls using x2 small panels and x1 large panel. STEP Install the next corner section to the other end of the side wall and secure, repeating the process from step 7. Expandakabin Assembly Instructions V2...
- Page 10 Install the second side wall using the remaining large panels. (Please note: windows and doors can be positioned in different ways depending on your requirements, which should be chosen prior to construction. These photographs are for illustrative purposes only.) www.extraspace.com...
- Page 11 19mm bolts. STEP Install the other short edge top ring beam which supports and holds the end wall panels in place. Align the protruding pin with the hole and push in place to secure. Expandakabin Assembly Instructions V2...
- Page 12 STEP Unlock the door and install the door handle. Use the long screws with locking sleeve to affix in place. Affix vanity cover to door assembly by snapping in place, one per side. www.extraspace.com...
- Page 13 STEP Install the roof panels by lifting and slotting them into position. No fixing required. The number of roof panels is dependant on the size of your Kabin. Expandakabin Assembly Instructions V2...
- Page 14 (tape should be applied to external joints) STEP Install window fixings. 1x window supplied in locked position for safe transit. To install handles open the plastic cover to expose screw holes. Insert screws and tighten then close the plastic cover. www.extraspace.com...
- Page 15 Install the roof fixing brackets x8 to secure the top roof section to the corner posts. Use 13mm bolts, washers and captive nuts. There are x2 brackets per corner. STEP Now’s the time to check all the bolts are secured tightly. Expandakabin Assembly Instructions V2...
- Page 16 Congratulations! Your Expandakabin is now fully assembled and ready to use. www.extraspace.com...
- Page 17 Accessories Your Expandakabin is now ready for use but don’t forget, we also have a wide range of handy accessories that means you can personalise your units around your own specific needs: Electrical Pack Includes consumer unit, external plug and socket, light switches, light fittings , convector heater, cables and self adhesive trunking.
- Page 18 Stacking / Lifting Kit Window Panel Door Panel Full Height Window Panel Full Glazed Door Panel For more information or to buy on-line visit www.expandastore.co.uk/accessories/ www.extraspace.com...
- Page 19 NOTES Expandakabin Assembly Instructions V2...
- Page 20 Expandarange – The complete range of storage and accommodation solutions Expandastore Expandacom - Flat-packed storage unit - Flat-packed office/ accommodation unit Expandakabin Expandachem - Flat-packed office unit home and - Flat-packed storage unit for the commercial use. safe storage of chemicals and lubricants.
