Summary of Contents for extraspace Expandacom

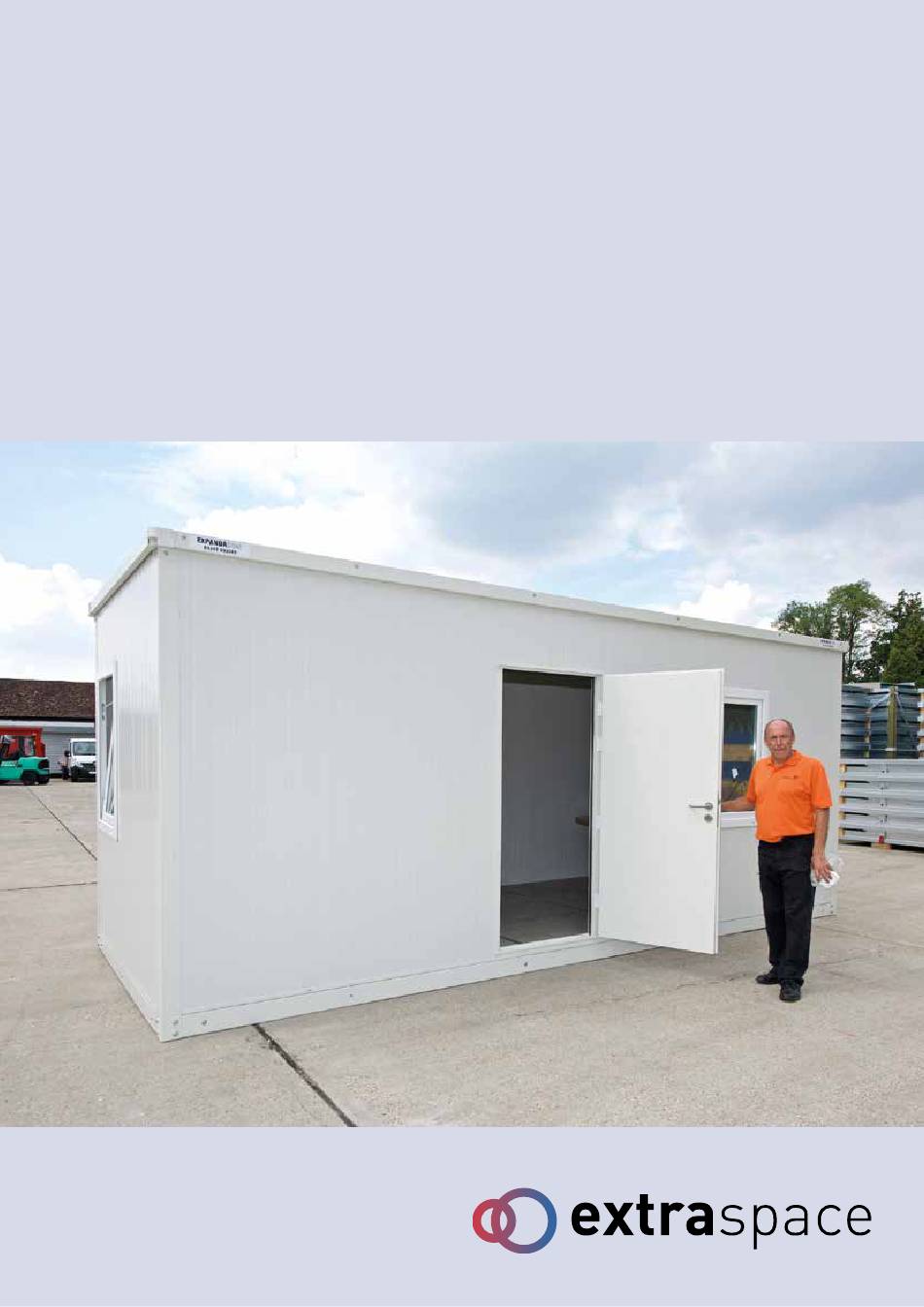

- Page 1 Assembly Instructions...
- Page 2 Assembly Instructions General assembly instructions • Read instructions thoroughly before commencing assembly • For best results assemble on level, solid ground or it may affect alignment of the wall and ceiling panels • On initial assembly, hand tighten all nuts and bolts then once full assembly has been completed, tighten again with socket/spanner •...
- Page 3 STEP Remove the 4 travelling brackets. Each has x2 bolts that should be unscrewed using a 19mm spanner and once free, lift the roof slightly to ease removal. Expandacom Assembly Instructions V2...
- Page 4 (on top) and x12 along the ring beam on each long edge. The roof will now be in 2 sections. STEP Remove the 4 corner sections by unscrewing the x4 19mm bolts on each. KEEP THESE SAFE for re-use later www.extraspace.com...
- Page 5 IMPORTANT INFORMATION If your Expandacom has been delivered and sited in the place where it will be used, ignore steps 5 and 6 and do not disassemble the floor chassis. If you need to carry the Expandacom components to a new location and...
- Page 6 STEP Relocate Expandacom to the desired location (ensure flat solid ground) and reverse the process by slotting the 5 sections back together and re-using the bolts and washers. STEP Assemble the first corner post and slot the steel cruciform shaped support in plate then affix using x2 19mm bolts.
- Page 7 Install the remaining x5 wall panels in place to complete the back wall. These will slot in place and require no fixing. STEP Install the corner section at the end of the back wall and secure in place, repeating the process from step 7. Expandacom Assembly Instructions V2...
- Page 8 Align the protruding pin with the hole and push in place to secure (Refer to image for which holes to use.) STEP Now install one of the end walls using x1 quarter sized panel and x2 standard sized panels. www.extraspace.com...
- Page 9 (Refer to image for which holes to use). STEP Install the remaining end wall using x1 quarter sized panel and x2 standard sized panels. STEP Install the second side wall using x5 remaining standard sized panels. Expandacom Assembly Instructions V2...
- Page 10 Align the protruding pin with the hole and push in place to secure. STEP Install the remaining long edge roof beam which supports and holds the side wall panels in place. Align the protruding pin with the hole and push in place to secure. www.extraspace.com...
- Page 11 STEP Install the roof panels x5 by lifting and slotting them into position. No fixing required. STEP Seal the roof panels using the self adhesive tape supplied (tape should be applied to external joints) Expandacom Assembly Instructions V2...
- Page 12 STEP Install window fixings. The windows (x2) are supplied in locked position for safe transit. To install handles open the plastic cover to expose screw holes. Insert screws and tighten then close the plastic cover. Repeat for each window. www.extraspace.com...
- Page 13 STEP Install the roof fixing brackets x8 to secure the top roof section to the wall sections. Use 13mm bolts, washers and captive nuts. There are 2 brackets per corner. Expandacom Assembly Instructions V2...
- Page 14 19mm bolts and x4 13mm bolts, each with washer and captive nut. STEP Install the top roof joining panel using x14 13mm bolts, washers and captive nuts. STEP Now’s the time to check all the bolts are secured tightly. www.extraspace.com...
- Page 15 Accessories Your Expandacom is now ready for use but don’t forget, we also have a wide range of handy accessories that means you can personalise your units around your own specific needs: Electric Pack Short Ending Linking Kit Stacking / Lifting Kit...
- Page 16 Expandarange – The complete range of storage and accommodation solutions Expandastore Expandacom - Flat-packed storage unit - Flat-packed office/ accommodation unit Expandakabin Expandachem - Flat-packed office unit home and - Flat-packed storage unit for the commercial use. safe storage of chemicals and lubricants.
