Summary of Contents for extraspace Expandachem

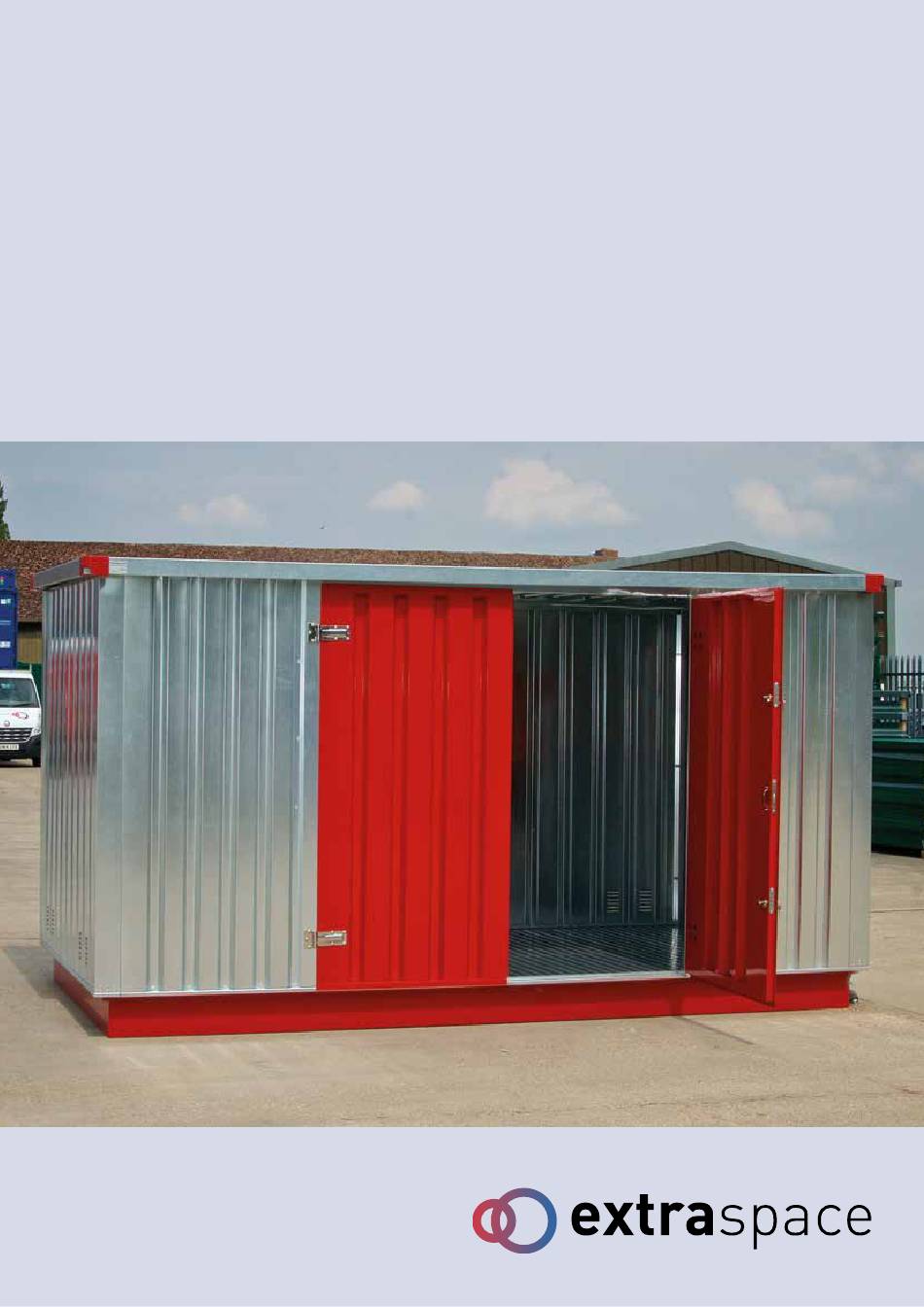

- Page 1 Assembly Instructions...
- Page 2 Assembly Instructions General assembly instructions • Read instructions thoroughly before commencing assembly • For best results assemble on level, solid ground or it may affect alignment of the wall and ceiling panels • On initial assembly, hand tighten all nuts and bolts then once full assembly has been completed, tighten again with socket/spanner •...
- Page 3 Fixings pack • Side panels • Floor grates • Back wall panel • Corner assembly • Front door panel sections STEP Construct the 4 corner supports (each has x2 parts) using 13mm bolts, washers and capture nuts. Expandachem Assembly Instructions V2...
- Page 4 Secure the back wall panel to the floor chassis by using x4 19mm bolts, washers and captive nuts. Note: These fit at the ends of the panel and in the centre, avoid the holes without captive nuts in place. www.extraspace.com...
- Page 5 Then affix the side panel to the floor chassis using x2 19mm bolts, washers and captive nuts. STEP Install the floor grills by lifting and sliding them into position. No fixings required. Expandachem Assembly Instructions V2...
- Page 6 13mm bolts, washers and captive nuts. Then affix the front panel to the floor chassis using x4 19mm bolts, washers and captive nuts. Note: Avoid the holes where no captive nut is www.extraspace.com...
- Page 7 Use x2 screws, washers and nuts. STEP Install the roof by lifting it in place. It will naturally slot in position over the wall panels and should be secured by using x4 13mm bolts, washers and nuts. Expandachem Assembly Instructions V2...
- Page 8 Install the lifting eyes and rods. Slide each rod through the roof section and ensure it is aligned with the holes in the floor chassis (this is easiest to achieve from inside the unit). Complete assembly by using x1 washer and nut per rod and tightening to secure. www.extraspace.com...
- Page 9 STEP Now’s the time to check all the bolts are secured tightly. Congratulations! Your Expandachem is now fully assembled and ready to use. Expandachem Assembly Instructions V2...
- Page 10 Accessories Your Expandachem is now ready for use but don’t forget, we also have a wide range of handy accessories that means you can personalise your units around your own specific needs: Storage bins Made from galvanised steel, storage bins are tough and a great way to safely store a variety of items.
- Page 11 Short End Linking Kit Door Closer The Ryobi door closer is of sturdy construction and easy to install. Closes door slowly and safely thanks to its hydraulic action. For more information or to buy on-line visit www.expandastore.co.uk/accessories/ Expandachem Assembly Instructions V2...
- Page 12 Expandarange – The complete range of storage and accommodation solutions Expandastore Expandacom - Flat-packed storage unit - Flat-packed office/ accommodation unit Expandakabin Expandachem - Flat-packed office unit home and - Flat-packed storage unit for the commercial use. safe storage of chemicals and lubricants. Gardenstore Bikestore...
