Summary of Contents for extraspace expandastore

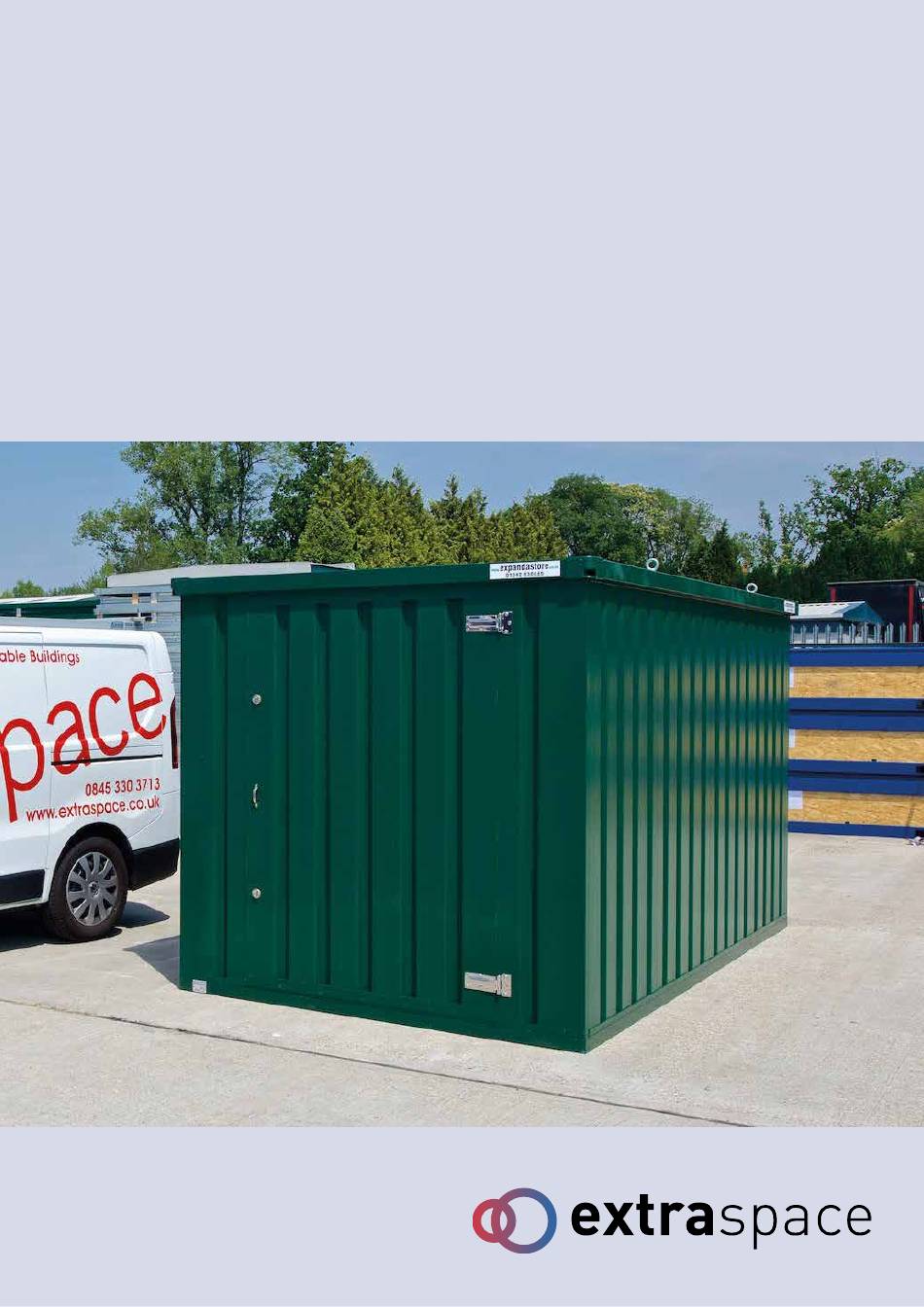

- Page 1 Assembly Instructions...
- Page 2 Assembly Instructions General assembly instructions • Read instructions thoroughly before commencing assembly • For best results assemble on level, solid ground or it may affect alignment of the wall and ceiling panels • On initial assembly, hand tighten all nuts and bolts then once full assembly has been completed, tighten again with socket/spanner •...
- Page 3 STEP Remove the components and panels. Discard the packaging and wooden packing blocks. STEP Install the first end wall panel (The one without the door). Affix to floor chassis using 13mm bolts, washers and captive nuts. Expandastore Assembly Instructions V2...
- Page 4 Affix to floor chassis using 13mm bolts, washers and captive nuts. STEP Install the end wall/door panel and secure it to both side wall panels 13mm bolts, washers and captive nuts. Affix to floor chassis using 13mm bolts, washers and captive nuts. www.extraspace.com...
- Page 5 Install the cylinder lock by sliding it into place. Ensure the key aperture is facing outside and use x1 screw to secure in place. STEP Install the handles by aligning them with the pre-drilled holes. Use x2 screws, washers and nuts Expandastore Assembly Instructions V2...
- Page 6 4 wall panels. STEP Assemble the lifting eye and rods. Slide a metal washer then rubber washer over the collar of the lifting eye then insert the steel rod and screw tight. Repeat x4 times www.extraspace.com...
- Page 7 STEP Install the lifting eye and rods. Slide each rod through the roof section and ensure it is aligned with the holes in the floor chassis. Fit into captive nut in chassis. Expandastore Assembly Instructions V2...
- Page 8 STEP Now’s the time to check all the bolts are secured tightly. Congratulations! Your Expandastore is now fully assembled and ready to use. www.extraspace.com...
- Page 9 Accessories Your Expandastore is now ready for use but don’t forget, we also have a wide range of handy accessories that means you can personalise your units around your own specific needs: Cable / Hose Holder An easy to fit bracket for storing cables and hoses etc.
- Page 10 Locking Bar Shelf Arms Shelf Uprights Short End Linking Kit Steel Ramp Storage Bins Made from galvanised steel, storage bins are tough and a great way to safely store a variety of items. www.extraspace.com...
- Page 11 Sump Shelf Touch Up Spray Long SIde Linking Kit For more information or to buy on-line visit www.expandastore.co.uk/accessories/ Expandastore Assembly Instructions V2...
- Page 12 Expandarange – The complete range of storage and accommodation solutions Expandastore Expandacom - Flat-packed storage unit - Flat-packed office/ accommodation unit Expandakabin Expandachem - Flat-packed office unit home and - Flat-packed storage unit for the commercial use. safe storage of chemicals and lubricants.
