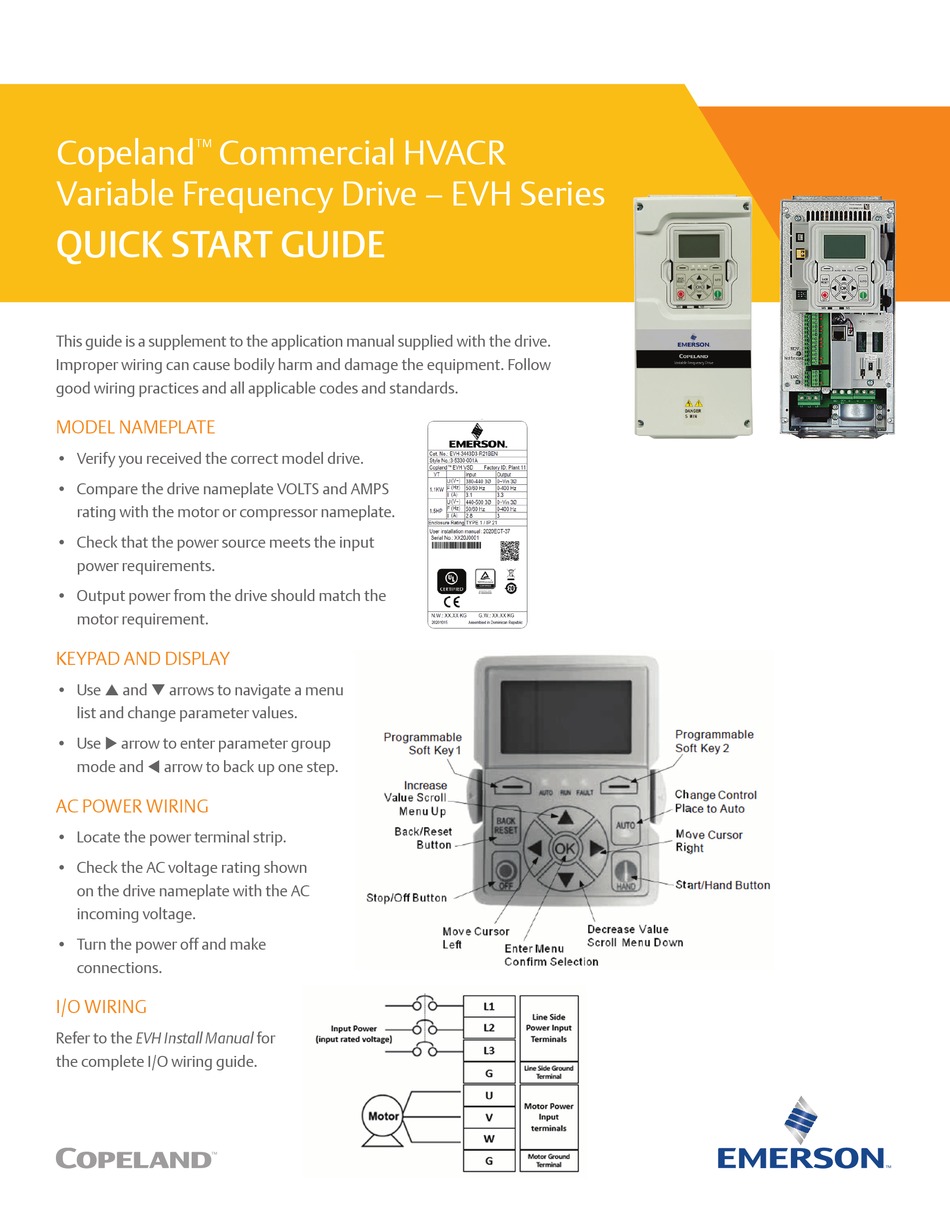

Emerson Copeland EVH Series Quick Start Manual

Copeland Commercial HVACR
™
Variable Frequency Drive – EVH Series
QUICK START GUIDE
This guide is a supplement to the application manual supplied with the drive.
Improper wiring can cause bodily harm and damage the equipment. Follow
good wiring practices and all applicable codes and standards.

MODEL NAMEPLATE

• Verify you received the correct model drive.
• Compare the drive nameplate VOLTS and AMPS
rating with the motor or compressor nameplate.
• Check that the power source meets the input
power requirements.
• Output power from the drive should match the
motor requirement.

KEYPAD AND DISPLAY

• Use  and  arrows to navigate a menu
list and change parameter values.
• Use  arrow to enter parameter group
mode and  arrow to back up one step.

AC POWER WIRING

• Locate the power terminal strip.
• Check the AC voltage rating shown
on the drive nameplate with the AC
incoming voltage.
• Turn the power off and make
connections.

I/O WIRING

Refer to the EVH Install Manual for
the complete I/O wiring guide.
