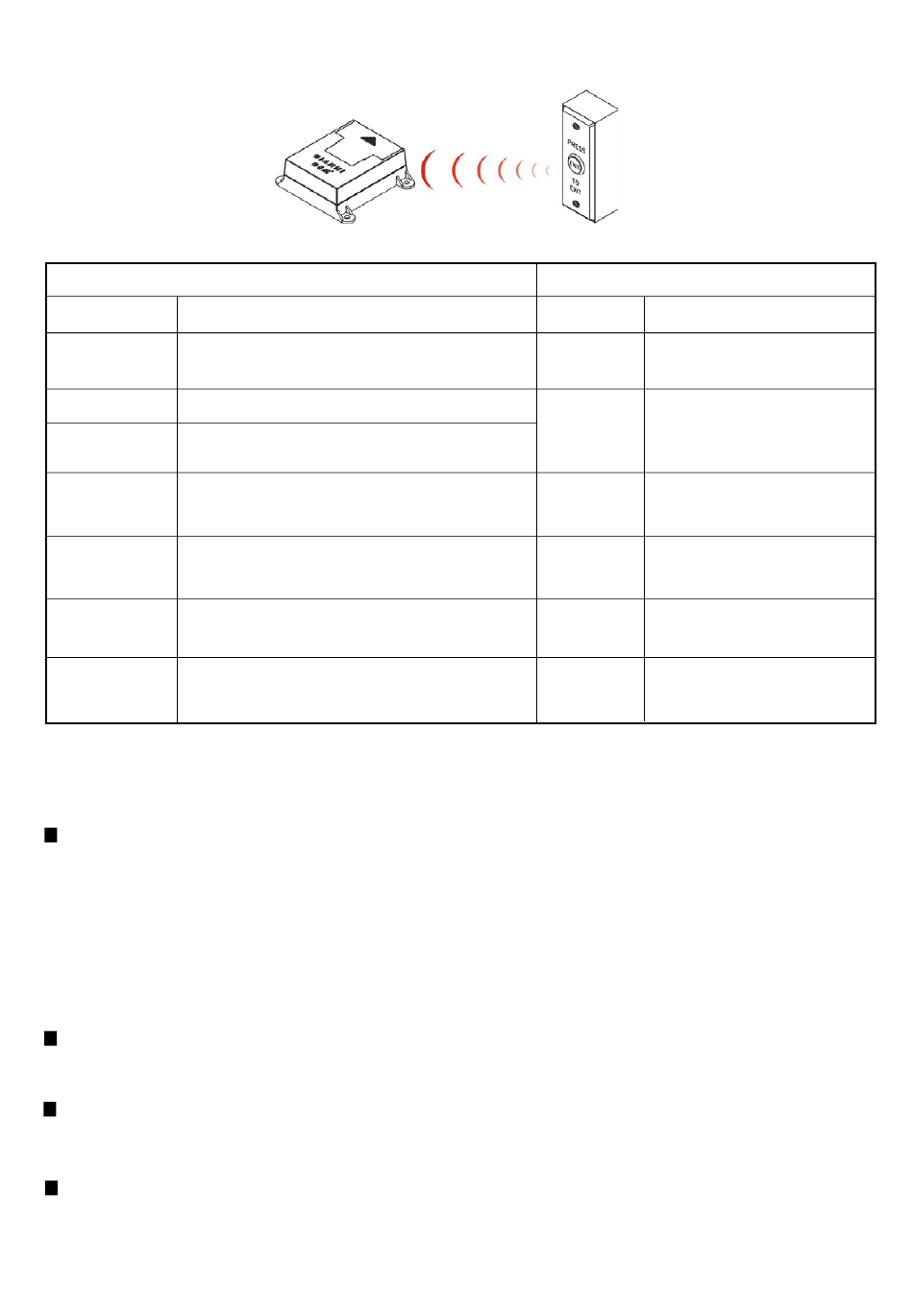

Gianni WPB Series User Manual

I. Specifications:
RF Hopping Code Controller (RX)
Power
12~24 VDC
Pull in: 50mA/12 VDC , Holding: 20mA/12 VDC
Current draw
Pull in: 70mA/24 VDC , Holding: 40mA/24 VDC
Output 1 relay (N.O./ COM/ N.C.)
Relay Rating 3A/120 VAC ; 3A/24 VDC
The buzzer starts beeping when the transmitter
sends the signal.

Buzzer indicator

(no beeping when power is dead)
Green LED -> Power
LED indicator
Red LED -> Receive & input
Timer setting
1,3,5,10 seconds
The quantity of
15 pcs
the remote
transmitter applied
*PB contact can connect " Request to Exit Button" which is the same function as the remote transmitter.
But the buzzer does not beep.

Operating indication:

Encoding the remote transmitter:

Press "Learning Key" -> then press the button of the remote transmitter -> remote transmitter data
encoded. When encoding, if the button of the remote transmitter is pressed constantly, it will not only be
encoded but also implement to open the door. To encode other remote transmitter, please do the
operation again.
Attention:
there are 15 remote transmitters' data can be encoded into to the receiver, if the 16 is
intend to encode, the data of 1
influence if the data is re-encode.

Reset the unit to delete all the remote transmitter coding data:

Press "Learning Key" constantly (LED on) for approximately 8 sec. until the LED off which means all the data in
the receiver has been deleted completely.
Buzzer Indicator
When the transmitter sends the signal, the receiver will operate to unlock as well as to activate beeping. Please
replace the battery when the transmitter power is almost dead and the buzzer does not beep.

Battery

1) The voltage of a new battery is about 12.6V that is allowed to transmit data and work perfectly
about 10,000 cycles and 13,000 cycles most.
2) Low-battery indication
Copyright All Rights Reserved.
P-MU-WPB-N Published: 2020.09.21
WPB Series Wireless Push Button
User Guide
(RX)
st
remote transmitter will be replaced by the 16 . There will be no
(TX)
Remote Transmitter (TX)
Power Input 12 VDC battery
Transmitting
433.3MHz
frequency
The brightness of LED is
LED indicator based on the capacity of
the dry battery
Transmitting
Max. 50~60M
distance
Embedded
Hopping Code IC
modules
Battery
Max. 13,000 cycles
Life
The Lowest Not lower than 7V for the battery
voltage of the remote transmitter
th
th
Page: 1/ 2
