Gianni GK460 Series Installation Instructions

Specifications

The strike is polarity insensitive
GK460 series of electric strikes are designed for use with cylindrical locksets and accommodate latchbolts up to 9/16" throw. The
strikes can be configured to fail-safe or fail-secure on site.
Operating Voltage 12VDC or 24VDC or 12/24VDC
Single Voltage:
250mA/12VDC or 150mA/24VDC
Current Draw
Dual Voltage:
300mA/12VDC, 150mA/24VDC
For indoor use: + 14°F to + 120°F
Operating Temperature
For outdoor use: -31°F to +151°F
Humidity 0% to 85% Non-condensing
Latch Throw 9/16" (15mm) maximum
Keeper Width
1 7/16" (36mm)
Static Strength
1500 lbs (680Kg)
Dynamic Strength 70 ft-lbs
Destructive Attack: Level 1
Line Security: Level 1
Performance Level
Standby Power: Level 1
Endurance: Level IV
Strike Body
Faceplate
Keeper
Latch Monitor

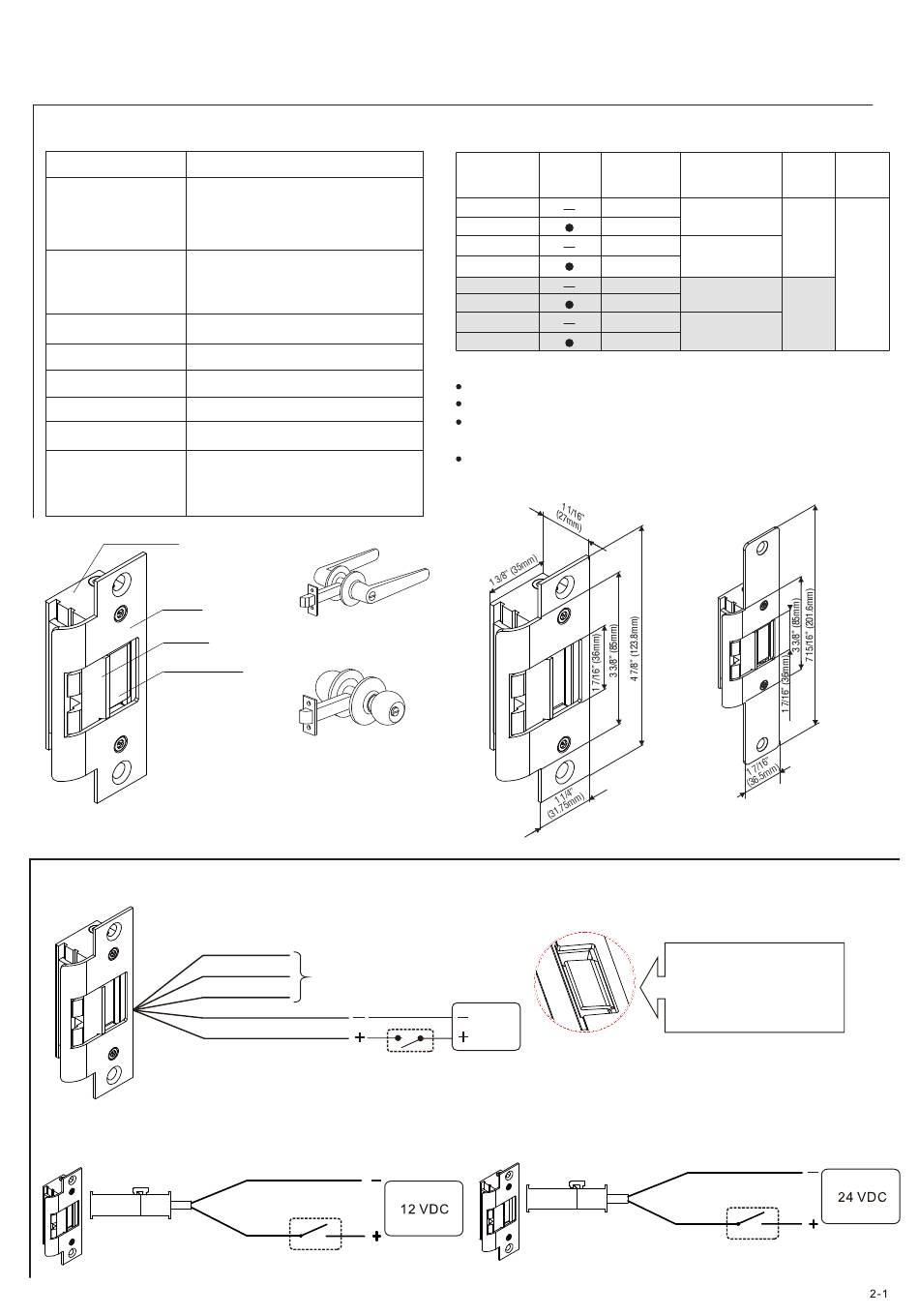

Wiring Diagrams

Single Voltage (12V or 24V)
Dual Voltage (12V/24V)
For 12VDC Operation:
Red
Black
(Polarity Insensitive)
(-10°C to + 49°C)
(-35°C to + 66°C)
Cylindrical Lever Lockset
Cylindrical Knob Lockset
Blue:N.O.
Green:COM.
Latch monitor wires
Rated: 0.3A/6VDC
Yellow:N.C.
White:12VDC Red:24VDC
White:12VDC Red:24VDC
(Polarity Insensitive)
Control Device
N.C. for "Fail-Safe" Operation
N.O. for "Fail-Secure" Operation
Control Device
Copyright © 2016 All Rights Reserved. P-MU-GK460 Published: 2017.03.31
Electric Strike Installation Instructions
Endurance
Latch
Model
Monitor (Cycles)
GK460
250,000
GK460M 100,000
GK460-ST 250,000
GK460M-ST 100,000
GK461 250,000
GK461M 100,000
GK461-ST 250,000
GK461M-ST 100,000
UL Requirements
Wiring methods shall be in accordance with NFPA70.
The GK460/461 series is intended to be used with UL Listed Exit Hardware.
The GK460/461 series shall not impair the intended operation of an
emergency exit.
The GK460/461 series shall not impair the operation of panic hardware mounted
on the door.
GK460
Latch Monitor
Power
input
For 24VDC Operation:
White
Black
(Polarity Insensitive)
GK460 Series
Body Latch
Frame
Construciton
Throw
Zinc Alloy
Hollow
Metal
Stainless
9/16"
Steel
(15mm)
Zinc Alloy
Wood
Stainless
Steel
GK461M
(Model with Latch Monitor)
N.O. dry contact output:
opened status
N.C. dry contact output:
when the micro switch is
pressed by latch bolt.
Control Device
