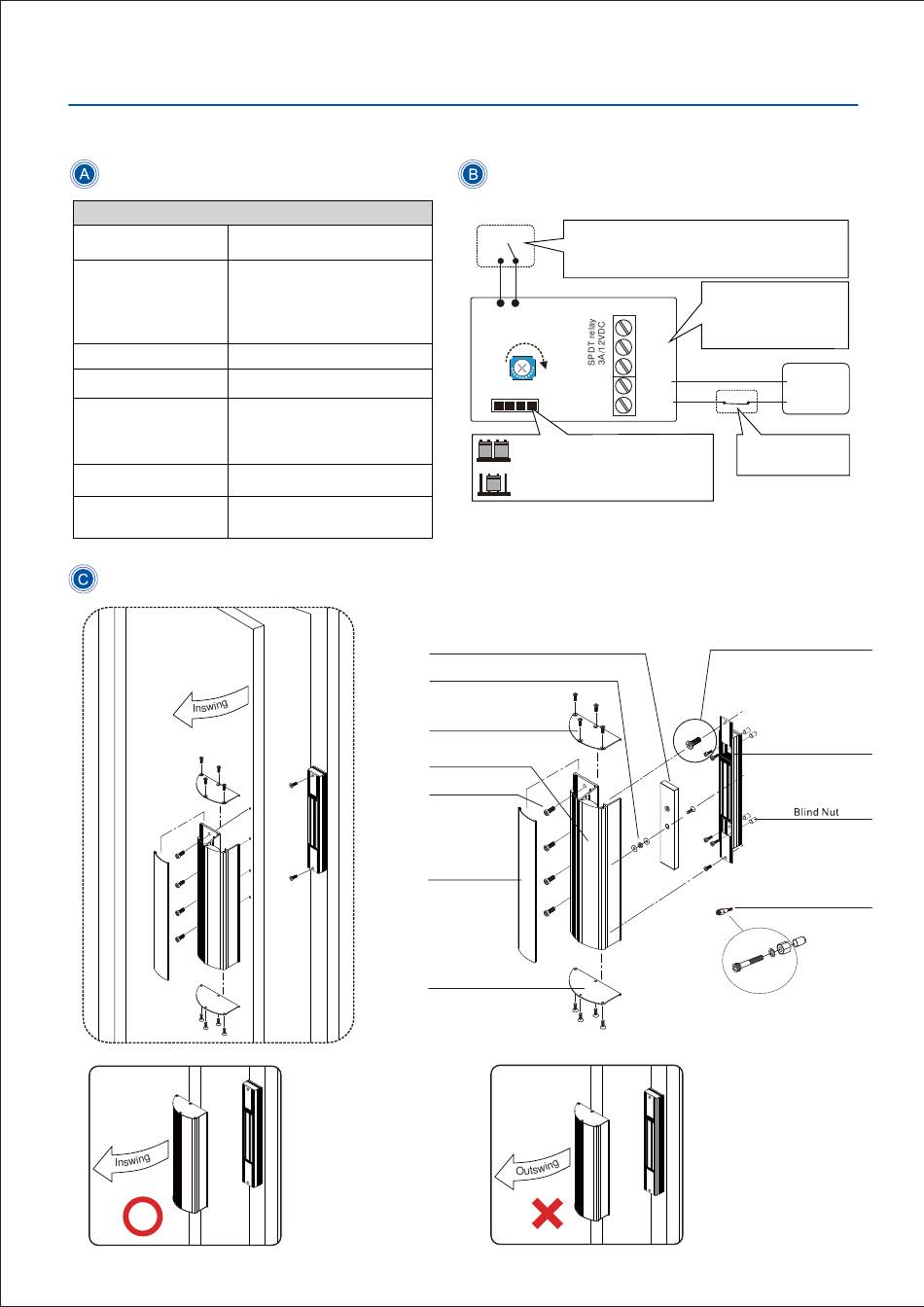

Gianni Handle Lock Series Installation Instruction

PH-450/ PH-900
Electromagnetic Lock Installation Instruction
Technical Specification
Specification
PH450:12/24VDC
Operating Voltage
PH900:12/24VDC x2
PH450:500mA/12VDC
PH900:500mA/12VDC x2
Current Draw
(at temperature 20ºC)
Operating Temperature
-10~55°C(14~131°F)
Relay Rating
3A/12VDC
PH-450: 600 lbs
Holding Force
PH-900: 600 lbs x2
Lock Surface Temperature ≦ ambient temperature ±20˚C
Special Finishes for magnet
Zinc plated
and armature plate
Dimensions & Accessories
Handle Lock Series
250mA/24VDC
250mA/24VDC x2
(approx. 272 kg)
(approx. 272 kg x2)
Armature Plate
Rubber Washer
Upper Case
Handle
Fixing Screw
Trimming plate
Bottom case
Notice that PH-450/PH-900 series
of maglocks should be installed
on "inswing" doors and frames
for the sake of security.
Connecting Diagram
Trigger
Relocking timer
(PH-450MTD)
N.C.
Timer Adjustment
COM.
N.O.
Shorten
-
Power
Input
+
Voltage Selection Jumpers
12VDC
C h e c k j u m p e r s e t t i n g s b e f o r e
connecting the lock to input power.
Incorrect jumper settings may cause
24VDC
or result in damage of the lock.
Armature Assembly
We bs ite: ww w.g i anni . com .t w
E-mail : i nfo@gi anni . com. t w
The door will lock automatically after the
circuit trigger connects to each other. VR
timer adjustable up to 30 seconds.
Magnet bond
sensor output
(PH-450M)
Lock & unlock status
-
Power
supply
+
N.C. contact of control
Device / Access Relay
Magnet Assembly
Tamper Screw
Electromagnetic Lock
Tool Kit
Blind Nuts
Tool
Installing the maglock on outswing
doors/frames will pose security
problems.
