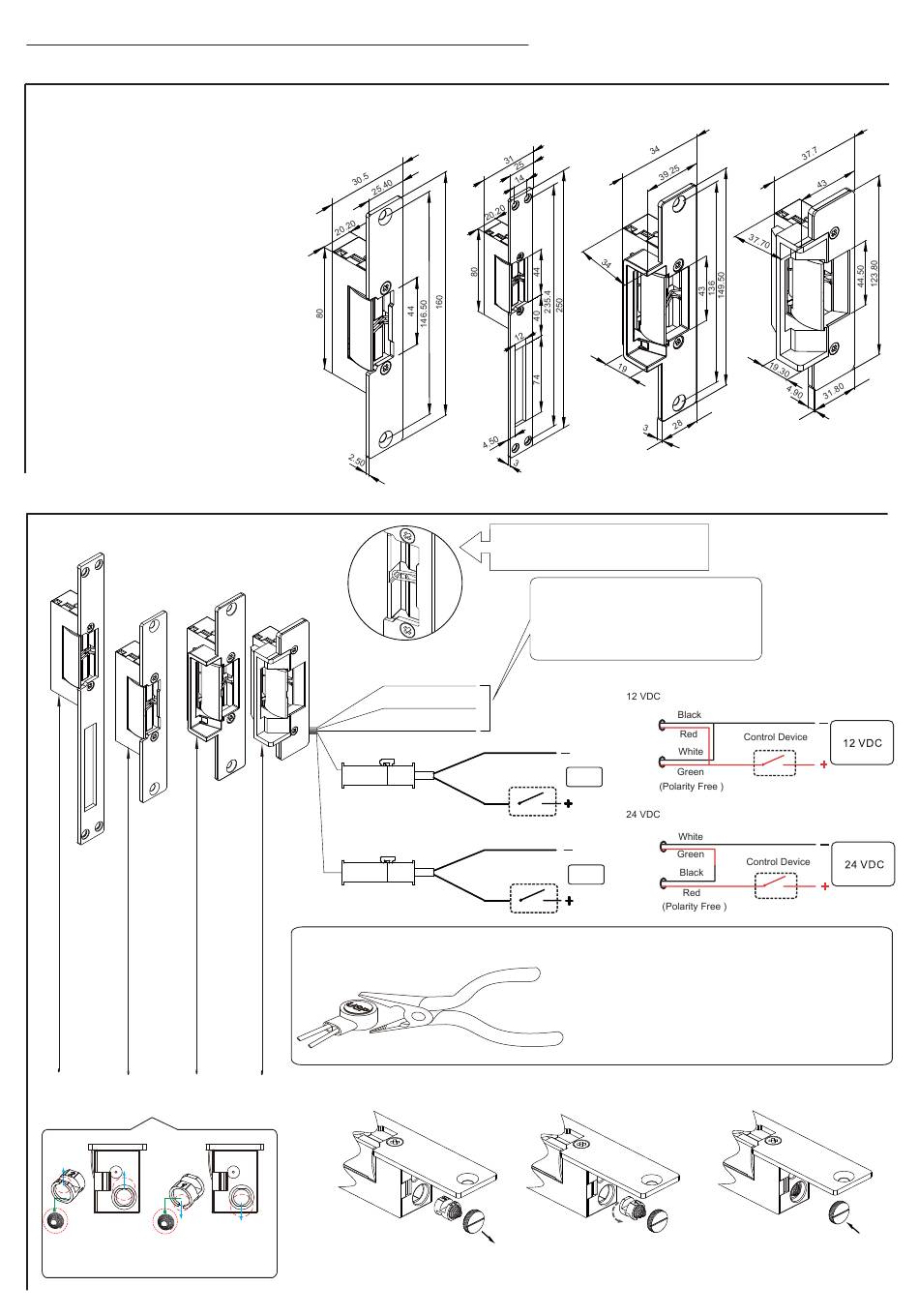

Gianni GK800 Series Installation Instruction

GK8 00 S er ies Electric Strike
Installation Instruction
Specification
Operating Voltage: 12/24VDC
Current Draw: 300mA/12VDC
150mA/24VDC
Operating Temperature: 32˚F to 120˚F
(0˚C to 49˚C)
Humidity: 0% to 85% Non-condensing
Life Rating of Solenoid: over 500,000 cycles
Latch Throw: GK800/GK810 series:12 mm
GK850 series:15 mm
GK880 series:19 mm
Keeper width: GK800/GK810 series:44 mm
GK850 series:43 mm
GK880 series:44.5 mm
Material: Zinc alloy main stand
Stainless steel faceplate
Weight (approx.): GK800 series 250g
GK810 series 290g
GK850 series 280g
GK880 series 370g
Wiring Diagram
Dual Voltage (12/24V)
Control Mode
Fail-secure when Fail-safe when
"2" facing up "1" facing up
GK800
GK800M
Blue: N.O.
Gray: COM.
Yellow: N.C.
Red
12VDC
Black
(Polarity Insensitive)
White
24VDC
Black
(Polarity Insensitive)
Butt Splice (IDC) Connector
Version Adjustment:
Step1: Fail-secure
Remove the plug and take out
the round screw.
Copyright © All rights reserved. P-MU-GK800-1224 Published: 2020.11.23
GK810 GK850
GK810M
GK850M
(GK800M/810M/850M/880M with door status output.)
N.C. contact output: door open
N.O. contact output: door closed
Door status output; SPDT:1A/125VAC
N.C. contact output: door open
N.O. contact output: door closed
Dual Voltage (12V/24V)
+
Control Device
12VDC
-
+
Control Device
24VDC
-
Place the wire inside the connector and use pliers
to press down on the head of the connector evenly.
Step2: Fail-safe
Turn the round screw upside
down (180°).
GK880
GK880M
Step3:
Put the screw and the plug
back.
