Equalizer
DISCLAIMER: THIS DOCUMENT IS A DRAFT, AND PROVIDED AS A COURTESY. PLEASE DO NOT SHARE.

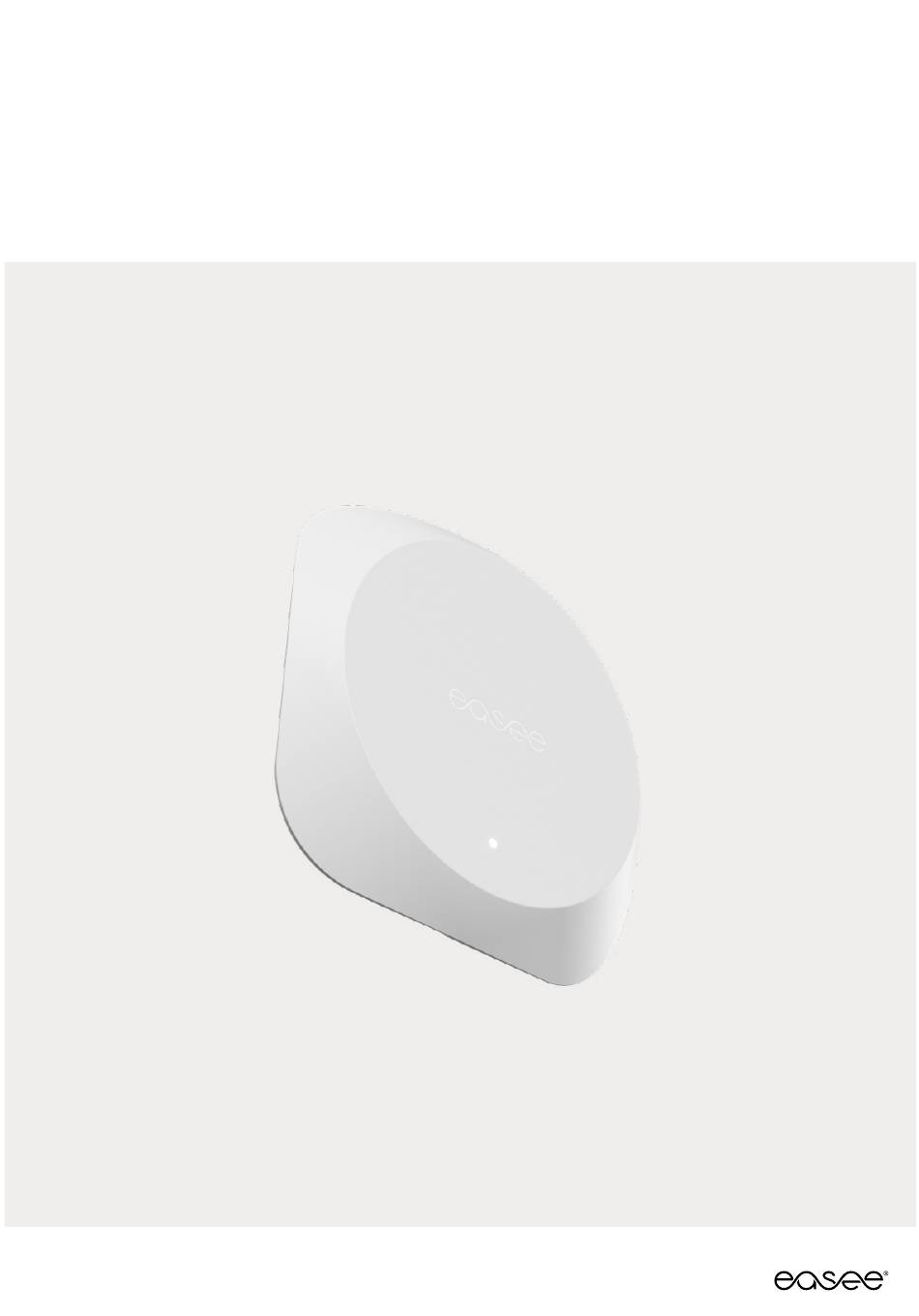

The Equalizer measures your energy consumption and the
current load in real time and optimizes your charging.
It prevents the main fuse from turning off due to overload and
allows the user to use all available electricity to charge their
car by communicating with the Easee Charging Robot
via WiFi.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 90501UK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Easee 90501UK

  • Page 1 It prevents the main fuse from turning off due to overload and allows the user to use all available electricity to charge their car by communicating with the Easee Charging Robot via WiFi. DISCLAIMER: THIS DOCUMENT IS A DRAFT, AND PROVIDED AS A COURTESY. PLEASE DO NOT SHARE.
  • Page 2 The user is responsible for making sure that the installation is done correctly. *When used together with an Easee Charging Robot. DISCLAIMER: THIS DOCUMENT IS A DRAFT, AND PROVIDED AS A COURTESY. PLEASE DO NOT SHARE.
  • Page 3: Specifications

    RJ11/RJ12 uses the same connector. WiFi is required for normal operation and for future software Cable length: 1.5 m updates. When offline or unstable, it will use Easee Link RF RJ12 custom made cable¹ backup in small installations with one primary charger. Easee...
  • Page 4 Equalizer Kit Equalizer Kit contains Eastron SDM630MCT-RC 3-phase Tufvassons electricity transformer meter reader Measurements (mm): H: 110 x W: 53 x D: 66 Measurements (mm): H: 94,5 x W: 72 x D: 65 Input voltage: 180-264V, 47-63 Hz N - L Voltage: 3 x 400V ac / 230V ac Output voltage: 24V dc (±...
  • Page 5: Installation

    Installation Preparation Main distribution unit or secondary Tips! Prepare installation in a new distribution unit / facade metre reader unit. encapsulation (not included): Rogowski Coils must be fitted in the correct – 4 Modules for Eastron 3-phase meter order to read incoming power line. reader –...
  • Page 6 Download the Easee Installer store or Google play App by scanning this QR code. – To use the Easee Installer App, you must have an Easee Cloud account. If you already have an account, you can log in immediately Commission the site by following the steps –...
  • Page 7: Troubleshooting

    Note that you must be logged in with the – Add the charger (master) to the users Easee same account in the Easee app as for your app with the serial number and pin code Easee Installer App for this step to work.
  • Page 8 Control How to make sure the Equalizer is displaying the correct values? Via the Easee Installer App, go to Site Here you can confirm that the same ampere Overview -> Site Structure -> Equalizer, you values are displayed as on the Eastron meter.
  • Page 9 Reconnect the Equalizer to the metre reader – If the Equalizer does not appear in the Easee Installer App, the signal is too weak. Reposition Wi-Fi or Equalizer to get a stronger signal. If necessary, install a Wi-Fi extender (Mesh) for portable connection...
  • Page 10 Troubleshooting Equalizer LED-status White, rapidly flashing - Unit starting Keep your finger pressed on the Easee logo for 3 seconds to control connection. White, slow pulsating every 10 seconds - You will see two flashes. Functioning 1st flash - EaseeLink radio frequency...
  • Page 11 Wiring scheme Power supply 24 V DC Power meter DISCLAIMER: THIS DOCUMENT IS A DRAFT, AND PROVIDED AS A COURTESY. PLEASE DO NOT SHARE.
  • Page 12 Easee AS. Easee and all other Easee product names and slogans are trademarks or registered trademarks of Easee AS. Easee products can be protected by one or more patents. Easee AS Easee is distributed and maintained by a Grenseveien 19 network of qualified partners and resellers.
