Summary of Contents for Easee Equalizer 90501UK

  • Page 1 Quick guide Equalizer...
  • Page 2 IMPORTANT Read carefully before use. Keep for future reference. You can find the latest version of this manual, other languages, answers to frequently asked questions and other useful information at easee.support.
  • Page 3: Intended Use

    Intended use This product is intended for optimizing the power consumption by performing an automatic load balancing between the Easee Charging Robot(s) and the building. It avoids overload and power interruption while charging the electric vehicle (EV). The product needs to be paired with a Charging Robot and connected to a compatible smart meter with the cable provided.
  • Page 4: Product Overview

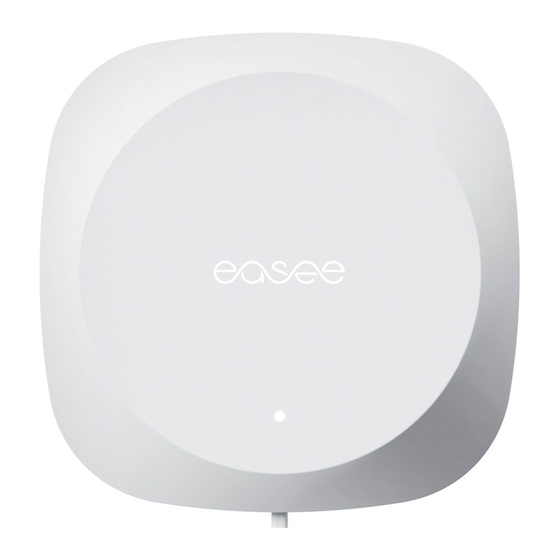

    Product overview Touch button Magnetic backside (side view) Equalizer Wall mounting kit (for non-metallic surfaces) Cable...
  • Page 5: Technical Specifications

    Extended with a RJ45 adapter (up to 200 m) Easee Link RF and WiFi* Connectivity HAN connection to energy meter Monitor power consumption with the Easee app RFID / NFC reader *WiFi is required for normal operation. When offline, it will continue to work via Easee Link RF...
  • Page 6 Charging Robot Before you start: make sure your Easee charger is Pairing connected to the same WiFi as you want the Equalizer to connect to. The Equalizer does not need to be connected to a power source during this step.
  • Page 7 If a metallic surface is not available, fix the metallic disc with a screw on the wall and then snap the Equalizer to it. For better communication with the Easee NOTICE! charger, place the Equalizer outside of the fuse cabinet.
  • Page 8 Red, flashing – No data from power meter Red, breathing every 10s – Error Purple, breathing every 10s – Offline operation Touch the Easee logo in the middle to check power consumption: Blue, fast flashing – High power consumption Blue, slow flashing – Low power consumption Count the flashes for percentage –...
  • Page 9 The EU Declaration of Conformity is available at the Standards following address: easee.support. Radio: 100 mW at 863–870 MHz. Max transmitted power WiFi: 50 mW at 2.4–2.472 GHz. This product requires no maintenance. If it needs to be Maintenance repaired, please contact your Easee supplier.
  • Page 10 For the return of old devices, free collection and acceptance points may be available in your vicinity. Observe local regulations for correct and environmentally friendly disposal. Contact your distributor or Easee Customer Support at Returns and complaints easee.support regarding the return and complaint of your product.
  • Page 11 Easee AS. Easee and all other Easee product names and slogans are trademarks or registered trademarks of Easee AS. Easee products can be protected by one or more patents. All other products and services mentioned may be trademarks or service marks of their respective owners.
  • Page 12 Easee AS Grenseveien 19 4313 Sandnes, Norway .easee.com...
