Keyspan USB Serial Adapter version 2.0 User Manual page 24

Keyspan USB Serial Adapter Software v2.x for Mac OS X User Manual
Step 3
-
Configure the Network System Preference to use the Keyspan serial port
When you first open the Network System Preference window, you may be told that a 'new port
has been detected.' This message is normal and is letting you know that the Network System
Preference has found a new connection. In this case, the new port/connection is the Keyspan se-
rial port. If you see this message, simply click the OK button.

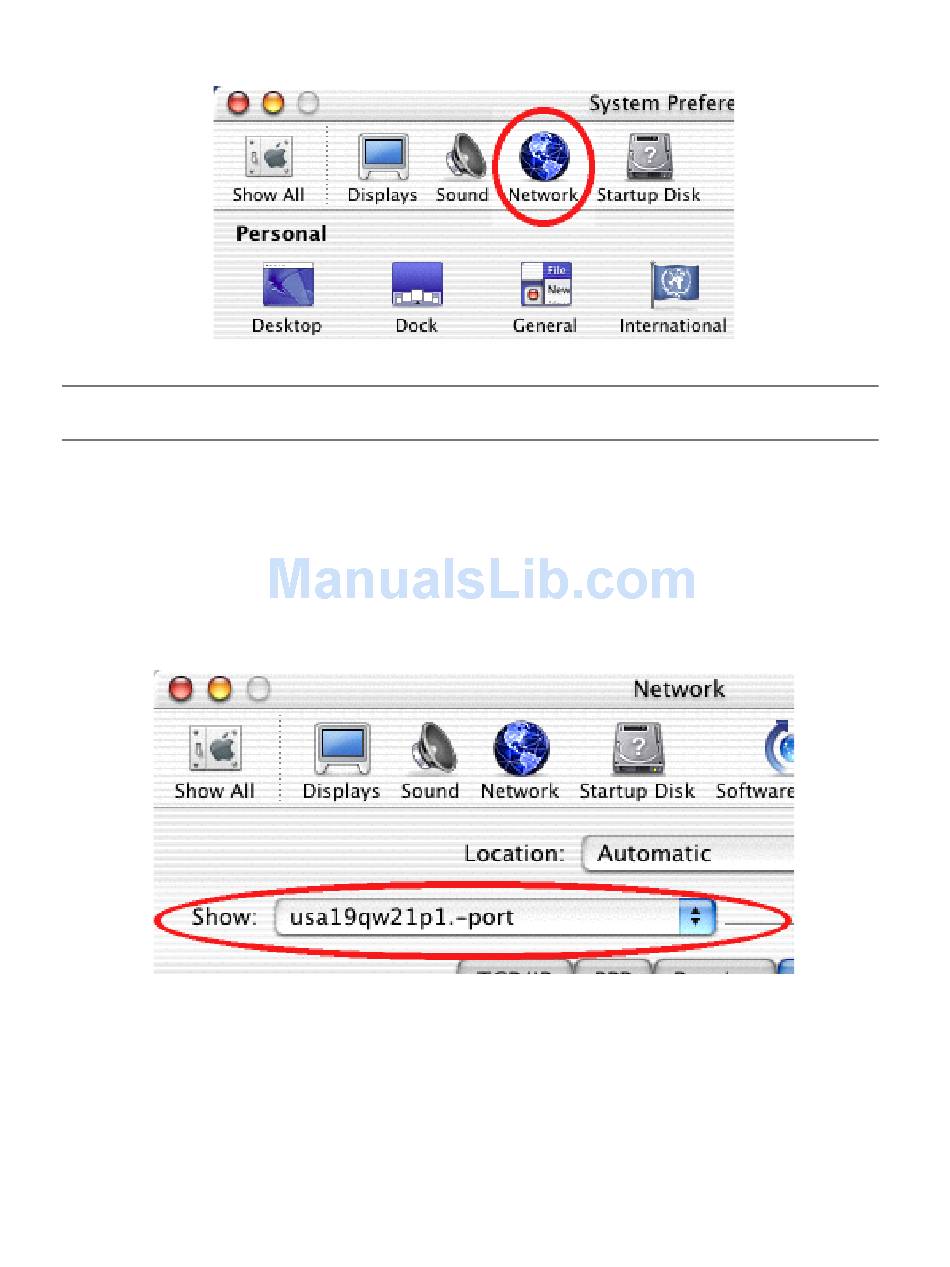

Once you are in the Network System Preference window, select the Keyspan serial port (this is
the name of the port from Step 1) from the Show menu as shown below:
Once your Keyspan serial port is selected, configure the TCP/IP, PPP, and Proxies tabs as per
your Internet Service Provider (aka ISP, ie Earthlink, IBM, Mindspring, etc.) instructions. Then
click on the Modem tab.
Rev 2006aug07 Page 24
